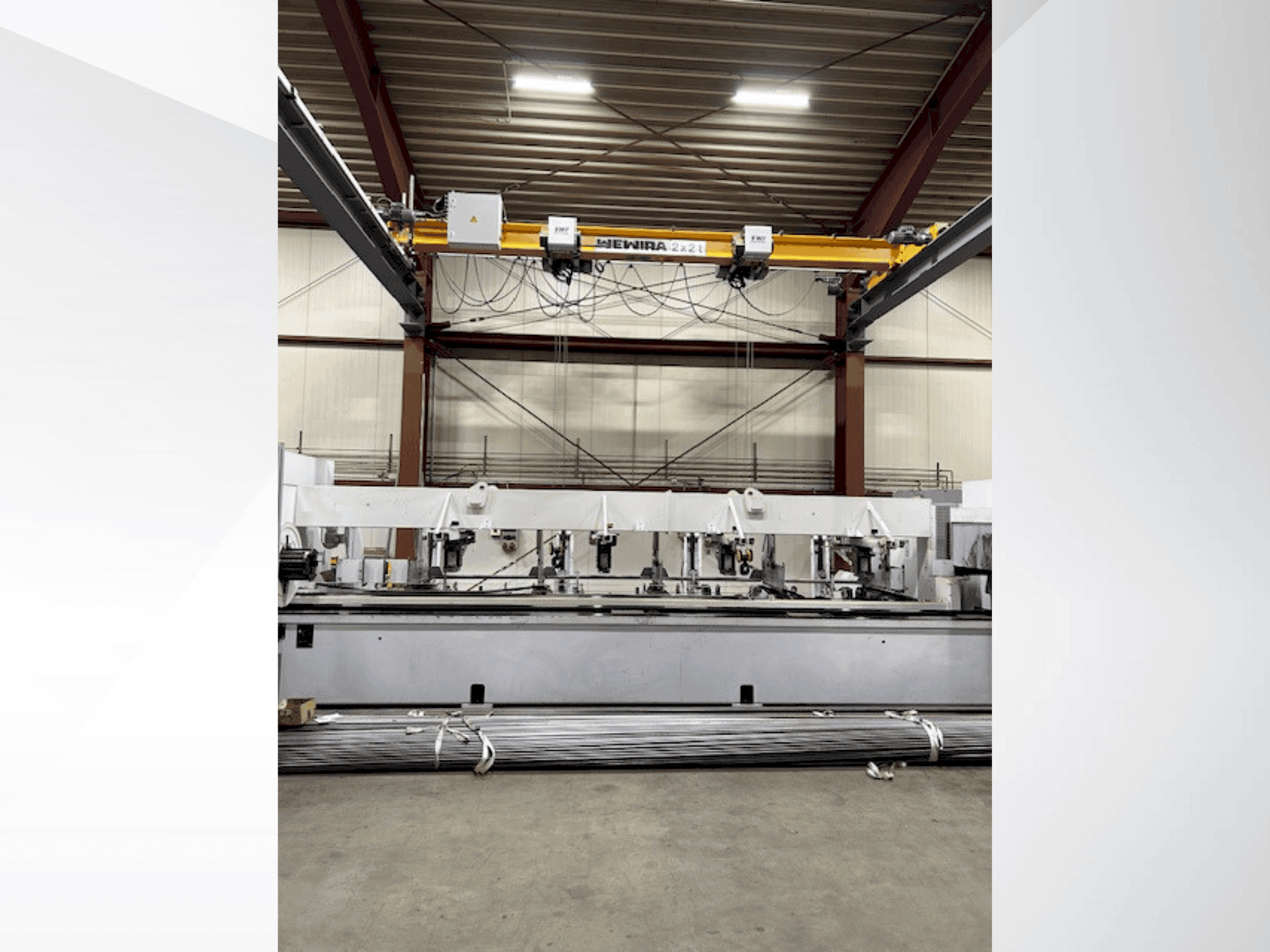

This TRUMPF Tru Laser Tube 3000 Fiber was manufactured in 2020. It features a maximum laser power of 2000 W and can handle materials up to 8 mm thick. The machine supports tube lengths up to 8000 mm and diameters up to 170 mm, ideal for versatile tube processing. A great opportunity to buy this TRUMPF Tru Laser Tube 3000 Fiber laser cutting machine. For more information about this laser cutting machine, please reach out to us.
Overview
- brand: TRUMPF
- year: 2020
- MODEL: Tru Laser Tube 3000 Fiber
- production hours: 8831
- application type: Cutting
- Location: Germany
- machine type: Tube Cutting Machine
Technical Information - TRUMPF Tru Laser Tube 3000 Fiber
Technical Specification
- Laser Power: 2 kW
Additional Information
Additional equipment
- Cutting head: lens cutting head 150mm focal length
- TruFibre2001 solid-state laser
- machine bed for 6.5m material length
- Loadmaster Tube for 6.5m raw material length
- Laser cooling unit
- Compact dust extractor
- AdjustLine / NitroLine / FocusLine / ControlLine
- Optional: slewing jib crane (4 tons)
Machine Benefits
Qualitative Machine Benefits
- Versatile tube processing capabilities with options for larger diameters and longer raw material lengths
Technical Machine Benefits
- Machine can proces up to diameter 170mm
- Raw material length for automatic loading: 6500 mm (loadmaster tube 6. 5 m),
- Finished part length: 3000 mm (unloading unit 3 m), 4750 mm (unloading unit 4. 75 m), 6500 mm (unloading unit 6. 5 m)
- Maximum path weight: 18. 5 kg/m (standard/optional)
- Maximum raw material weight with automatic loading: 120 kg (loadmaster tube 6. 5 m), 148 kg
- Capable of processing a wide range of materials with varying thicknesses
- Copper: 3 mm
- Brass: 3 mm
- Max ingoing lengths 6500mm
- Max uitgoing lengths 4500mm
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
