TRAUB - TNL32-9DE-TUR-TRA-2017-00001

Rs. 9,816,610
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

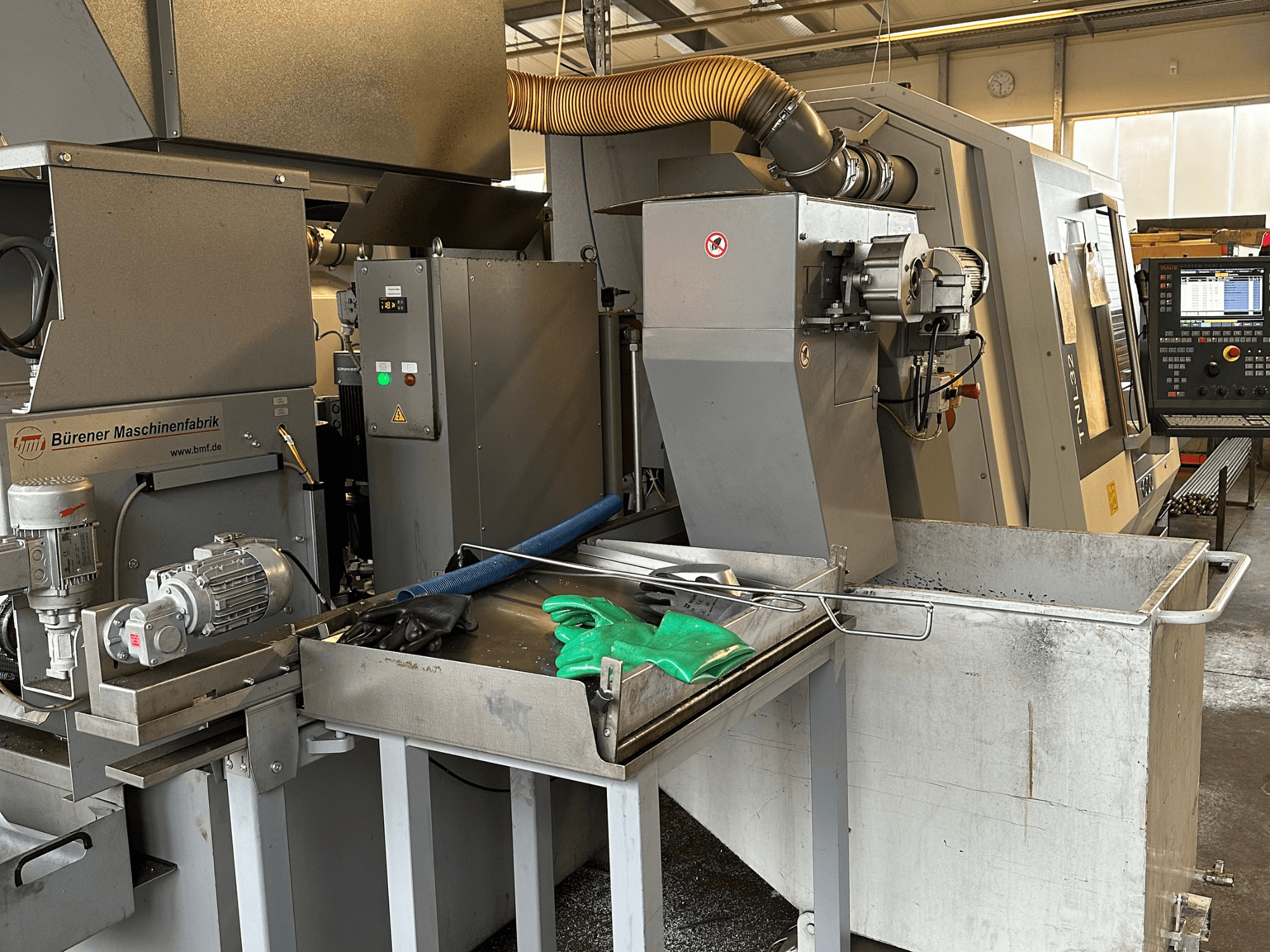

This 9-axis TRAUB TNL32-9 was manufactured in 2017. It features a main spindle speed of 8,000 rpm and a counter spindle speed of 6,400 rpm. The machine includes dual drive systems and a maximum bar capacity of 32 mm, making it suitable for various turning applications. If you are looking to get high-quality turning capabilities, consider the TRAUB TNL32-9 swiss type turning machine we have for sale. Contact us for further details.

Overview

  • brand: TRAUB
  • year: 2017
  • MODEL: TNL32-9
  • production hours: 19295
  • application type: Turning
  • Location: Germany
  • machine type: Swiss Type Turning Machine
  • control unit brand: TRAUB

Technical Information - TRAUB TNL32-9

Control Unit

  • Control Brand: TRAUB
  • Control Model: TX8i-s

Movement

  • Number of Axes: 9

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Max. Bar Diameter: 32 mm
  • Spindle Speed: 8000 RPM
  • Through-spindle Coolant: Yes

Additional Information

  • Main Spindle: Motor Spindle

  • Main Spindle Bore: 32 mm

  • Main Spindle C-Axis: Yes

  • Counter Spindle Bore: 30 mm

  • Counter Spindle Speed: 6,400 rpm

  • Upper Tool Carrier: X / Y / Z / H Axis

  • Lower Tool Carrier: X / Y / Z / H Axis

  • Tool Positions Upper Carrier: 10

  • Tool Positions Lower Carrier: 10

  • Dual Drive System: Yes

  • Long Turning Mode: Yes

  • Short Turning Mode: Yes

  • Changeover Turning Mode (W-T): Yes

  • Internal Coolant Pressure: 20 / 80 / 120 bar

  • Coolant System: Bürener ECO Fluid

  • Coolant Tank Capacity: 600 l

  • Oil Mist Extraction System: Yes

  • Air Flow Capacity: approx. 1,500 m³/h

  • Automatic CO₂ Fire Extinguishing System: Yes

  • Hydraulic Workpiece Gripper: Yes

  • Counter Spindle Parts Ejector: Yes

  • Parts Conveyor: Yes

  • Tool Monitoring System: Yes

  • Network Interface RJ45: Yes

  • Voltage: 400 V

  • Frequency: 50 Hz

  • Rated Power: 36 kW

  • Connected Load: 44 kVA

  • Rated Current: 63 A

  • Maximum Fuse Protection: 63 A

  • CE Marked: Yes

  • Bar Feeder: FMB LSK38 / 3200 C

  • Bar Diameter Range: 5 - 38 mm

  • Maximum Bar Length: 3,200 mm

  • Remnant Length Disposal: up to 600 mm

  • Feed Direction: Right Side

  • Material Support Position: Front

  • Chip Conveyor: Optional, not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
