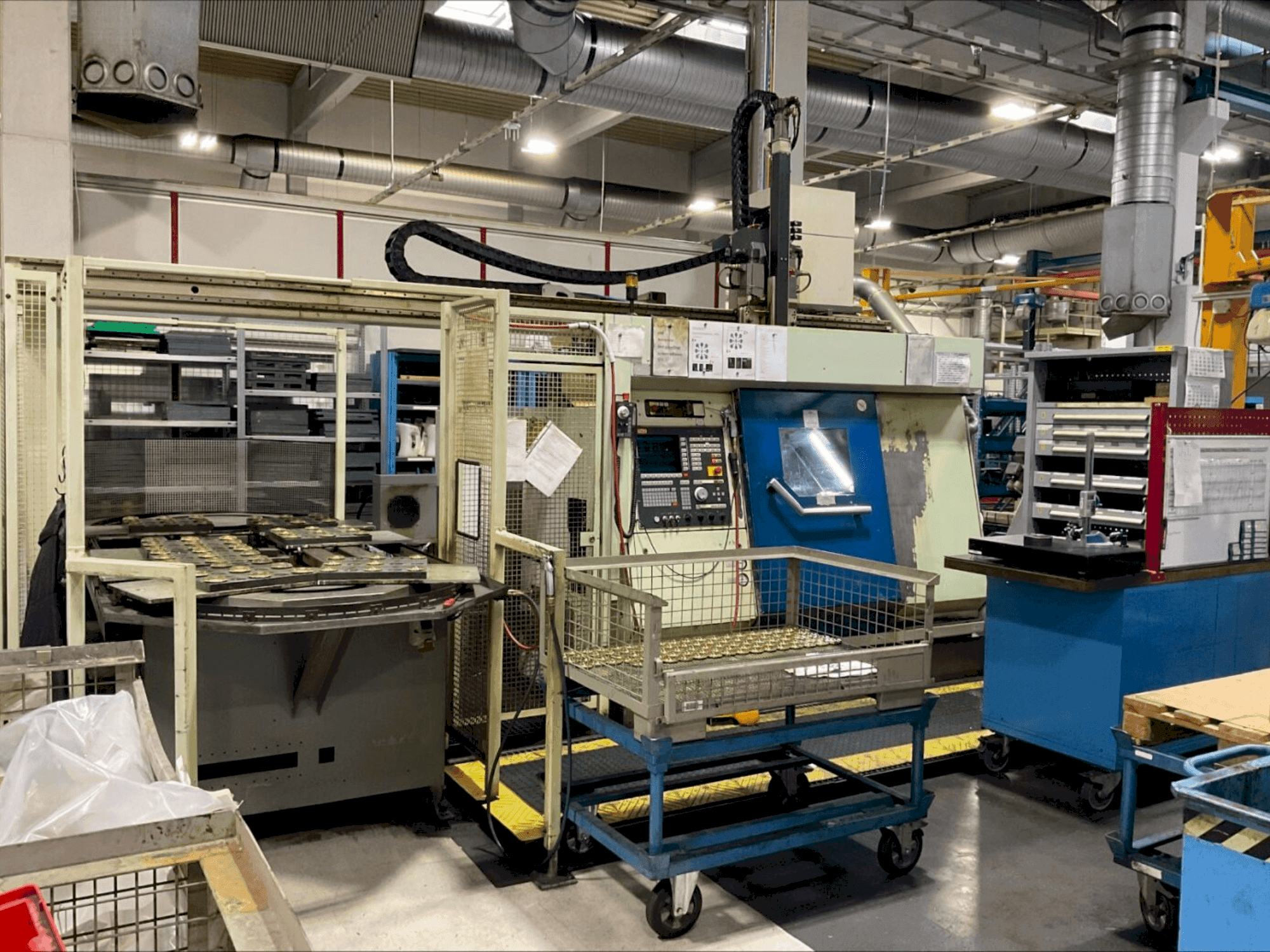

This TRAUB TNC 65 lathe was manufactured in 1996. It features a robust TRAUB TX 6F control unit, main and counter spindles with a 65mm diameter, and a drive power of 18.5 kW. The machine includes a portal loader, scraper chip conveyor, and a coolant capacity of 300 liters. Ideal for precision tasks, the TRAUB TNC 65 machine we have for sale is a valuable addition to any workshop. Contact us for further details regarding this lathe.
Overview
- brand: TRAUB
- year: 1996
- MODEL: TNC 65
- application type: Turning
- Location: Germany
- machine type: Turn-Mill Centre
- availability: Immediately
- control unit brand: TRAUB
Technical Information - TRAUB TNC 65
Control Unit
- Brand: TRAUB
- Model: TX 6F
Main drive
- Number of spindles: 2
- Spindle speed range: 4000 rpm 1/MIN
- Spindle motor power: 18.5 kW
Media
- Chip conveyor: Yes
Additional equipment
- - FSH 5 handling system: Yes
- - C-axis max. speed on main spindle: 80 l/min
- - Torque on main spindle: 100 Nm
- - Max. speed at 80 l/min torque on counter spindle: 30 Nm
- - Coolant inlet direction: Yes // Capacity: 300 litres // Coolant cleaning system: Yes
- - Chip discharge to the right: Yes
- - Discharge height: 1200 mm
- - Three-jaw power chuck SMW KNCS 175-40.5: Yes
- - Portal loader: Included
- - Optional driven and fixed tool holders for sale: Yes
Additional Information
- Technical Machine Benefits:
- - Scraper chip conveyor: yes
- - Comprehensive handling system with fsh 5
- - Drive torque: main spindle: 230 nm, counter spindle: 210 nm
- - Main spindle diameter: 65 mm
- Qualitative Machine Benefits:
- - Precision control with traub tx 6f, efficient chip management with scraper chip conveyor and coolant cleaning system
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
