TORNOS Multideco 26/6

Photo Gallery

TORNOS - Multideco 26/6CZ-TUR-TOR-2001-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

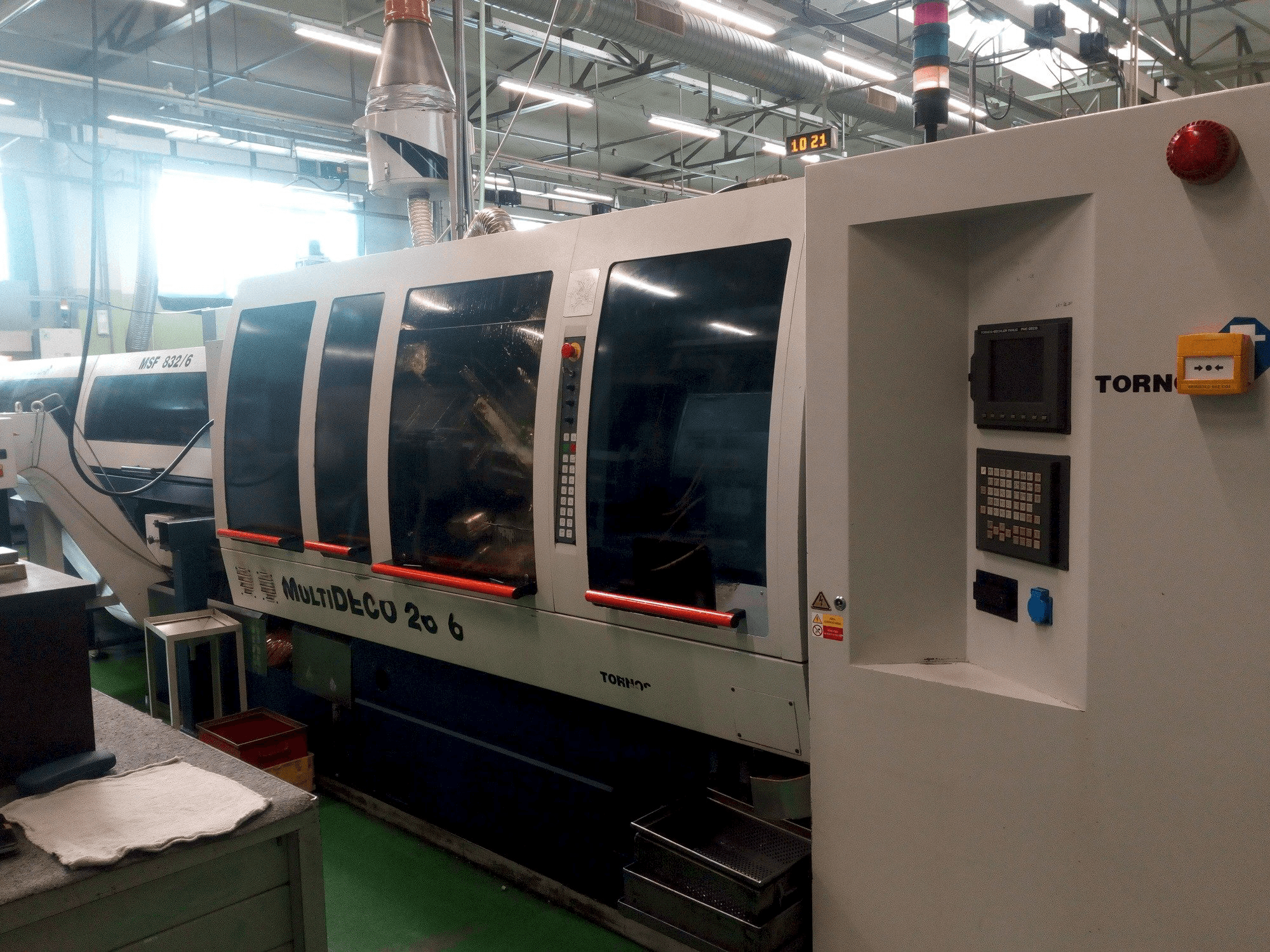

Tornos Multideco 26/6 Lathe

Show in original language

This Tornos Multideco 26/6 Lathe was built in Germany in 2001 and has been working for 69290 hours. Operated through a FANUC Series 16i Control unit, this machine works with a spindle speed up to 5000 rpm.

Overview

brand: TORNOS
year: 2001
MODEL: Multideco 26/6
production hours: 69290
application type: Turning
Location: Czech Republic
machine type: Swiss Type Turning Machine
control unit brand: FANUC

Technical Information - TORNOS Multideco 26/6

Control Unit

Control Brand: FANUC
Control Model: Series 16i

Dimensions

Machine Depth: 1600 mm
Machine Height: 1950 mm
Machine Weight: 8000 kg

Technical Specification

Max. Workpiece Diameter: 26 mm
Spindle Speed: 5000 RPM

Additional Information

Additional equipment

Bar feeder Robobar MSF 832/6 (bar length 3000 mm)

Machine Benefits

Qualitative Machine Benefits

Regularly serviced and maintained
2013 - new spindle bearings
2013 - new central shaft
2014 - new screws z13, z26, x3
2014 - new linear guideways
2015 - new motor x7, new hydraulic pump, new threading unit
2018- repair of axes z21, z22, z24; new z12 screw; new motor x3
2019 - new gearbox

Technical Machine Benefits

Max. Turning diameter: 26 mm
Number of spindles: 6 pcs
Main motor power: 18 kw (1500 rpm)
Torque 114. 6 nm (1500 rpm)
Workpiece diameter: 8-26 mm
Production capacity 40 pieces/min.
Oil filtration
Cooling

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
