TORNOS - DECO Sigma 20/6PL-TUR-TOR-2015-00002

Name: TORNOS DECO Sigma 20/6
Brand: TORNOS
SKU: PL-TUR-TOR-2015-00002
Price: 11941950 INR
Availability: InStock

Rs. 11,941,950

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used TORNOS DECO Sigma 20/6 For Sale | gindumac.com

Show in original language

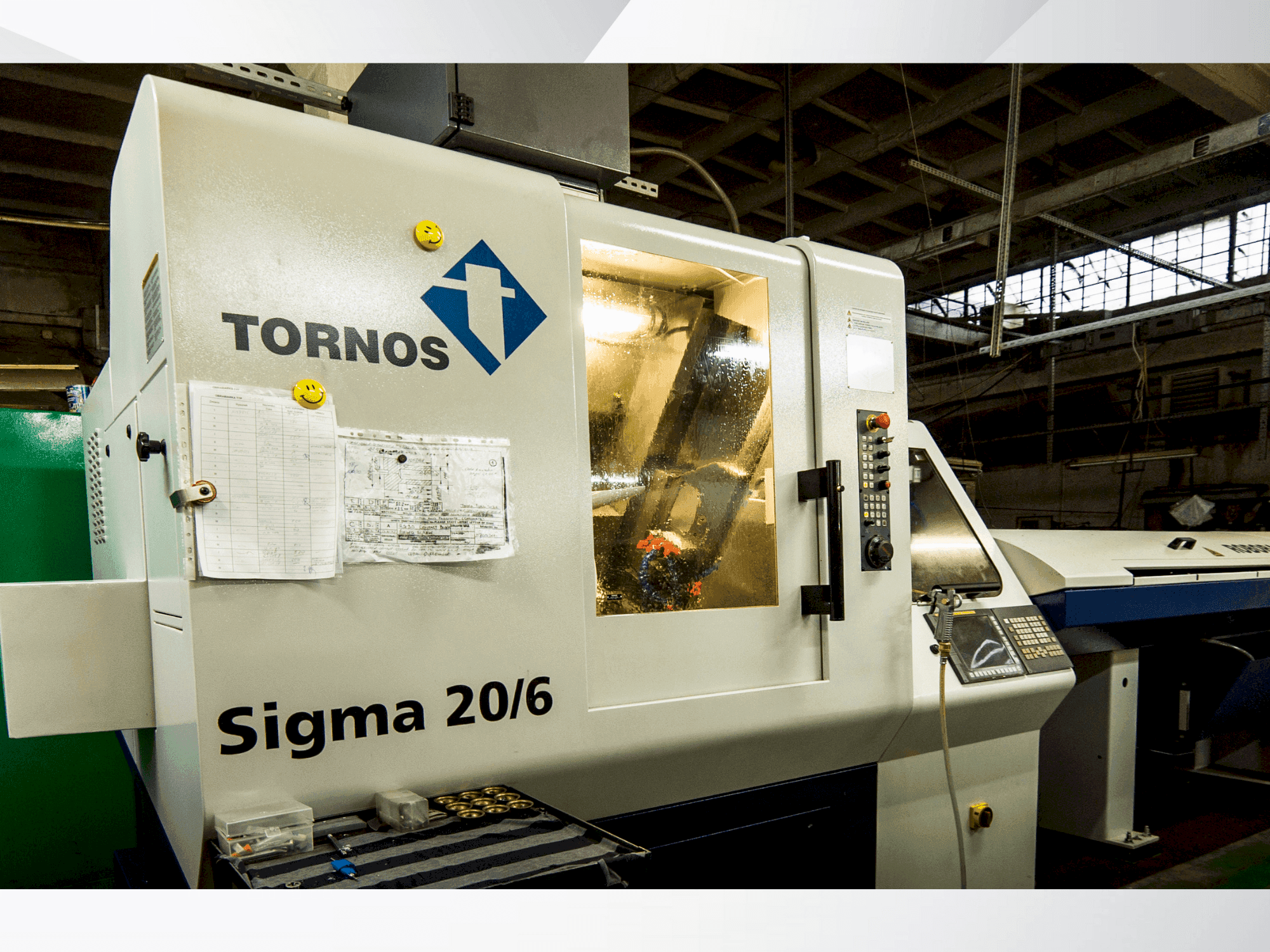

This 8-axis Tornos DECO Sigma 20/6 swiss type turning machine was manufactured in 2015. It features a maximum bar capacity of Ø 20 mm, spindle speeds up to 10,000 rpm, and a rapid axis traverse of 30 m/min. Equipped with a Fanuc 31i control and a 3 meters bar feeder, this machine offers precision and efficiency for complex turning tasks. Ideal for high-volume production, the Tornos DECO Sigma 20/6 machine we have for sale. Contact us for further details regarding this swiss type turning machine.

Overview

brand: TORNOS
year: 2015
MODEL: DECO Sigma 20/6
production hours: 39450
application type: Turning
Location: Poland
machine type: Swiss Type Turning Machine
availability: Immediately
control unit brand: Fanuc

Technical Information - TORNOS DECO Sigma 20/6

Control Unit

Brand: Fanuc
Model: 31i

Main drive

Spindle speed range: 100-10,000 rpm (Main Spindle and Counter Spindle) 1/MIN
Spindle motor power: 3.7 (5.5) kW (Main Spindle and Counter Spindle)

Additional equipment

- 3 meters bar feeder

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max bar diameter: Ø 20 (25. 4) mm / max workpiece length: 200 mm (turning with guide bush)
- - Tool slide at guide bush: number of tool positions at guide bush (fixed or rotary): 15
- - Tool shank section: 16 x 16 mm
- - Max. Number of cross rotary tools at guide bush: 4
- - Programmable rotary tool speed for s11: 100-6000 rpm
- - Max. Rotary tool drive power: 1. 5 (2. 2) kw
- - Counter spindle and operations on the second side: max. Number of tool positions for second side operations: 11
- - Max. Number of fixed and rotary spindles: 4
- - Programmable rotary tool speed for s41: 100-6000 rpm
- - Max. Rotary tool drive power: 1. 5 (2. 2) kw
Qualitative Machine Benefits:
- - Installed power: 14 kva

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
