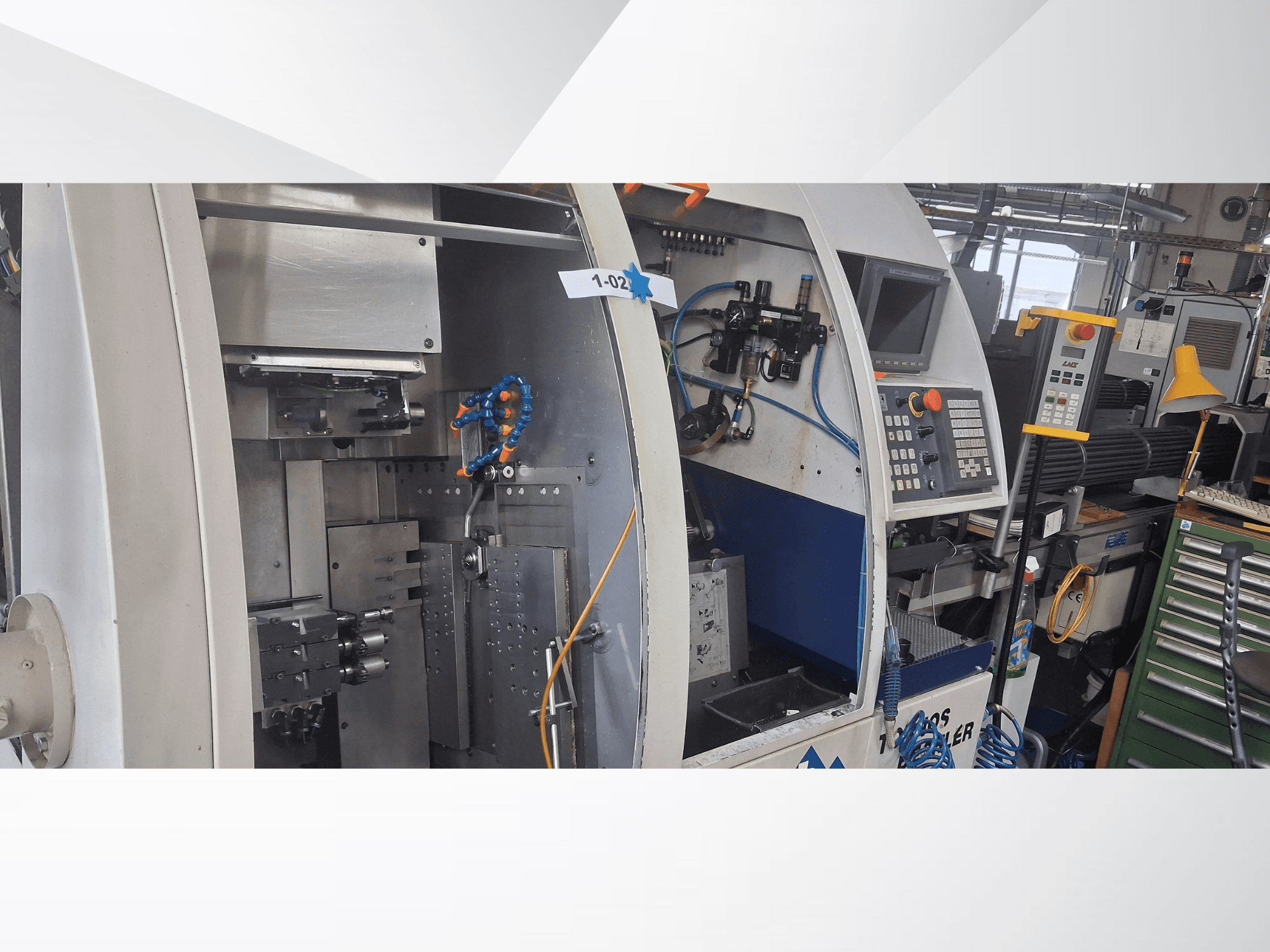

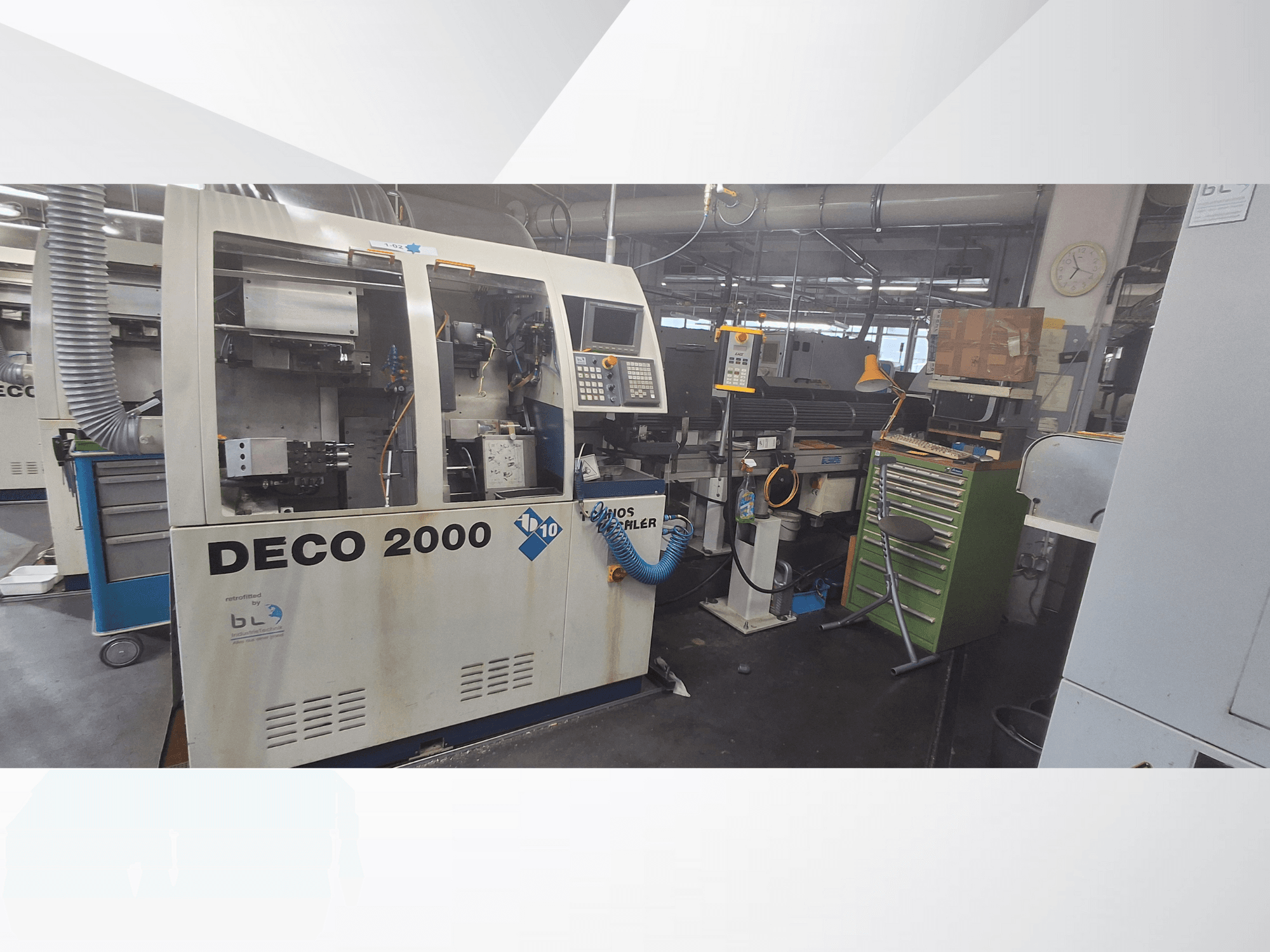

TORNOS - DECO 2000-10DE-TUR-TOR-1999-00001

2017 overhauled and two further similar machines available (both overhauled 2018)

Overhaul of 2017 machine:

Standard overhaul package: Maintenance of Block III, cleaning, and recommissioning. Overhaul of the guide bushing and spindle overhaul of S1, S2, and S4. Replacement of all ball screws including bearings and the guides of all axes. Replacement of the cooling lubricant pump, all cooling lubricant lines, and the cooling lubricant sensor. Replacement of the scraper blades on the cross slides. Replacement of all pneumatic lines and valves. Replacement of the machine room light, transparent panels, external fan, fan cable, and keyboard. Additional options (special services): The guide bushing was completely replaced (not just overhauled). Installation of a new central lubrication system. Replacement of the bellows coupling, external encoders, and screen. Replacement of the control and amplifier fans. During commissioning, the “Spindle Positioning S4” option was also activated and the loading magazine was set up.

Additional information

• Maximum bar length: 3040 mm

• Electrical control box

• AC drive motors

• Motor voltage: 3 x 380 V 50/60 Hz

• Control voltage: 1 x 24 V DC

• Movable headstock

• Cross slide with 4 tool holders T11-T14 with vertical and horizontal movement

• Absolute measuring system

• 9 axes with C1 and C4

• Loading magazine with drum "HYBRIDE 10+5"

• 14 guide tubes for 1-4 mm bars

• 14 guide tubes for 4.1-10 mm bars without bar preparation up to 8 mm

• Collet for Tryton

• 2 different hybrid drums

• Directional spindle stop S1

• Equipment to be equipped with Robobar SSF 3 m loading magazine
