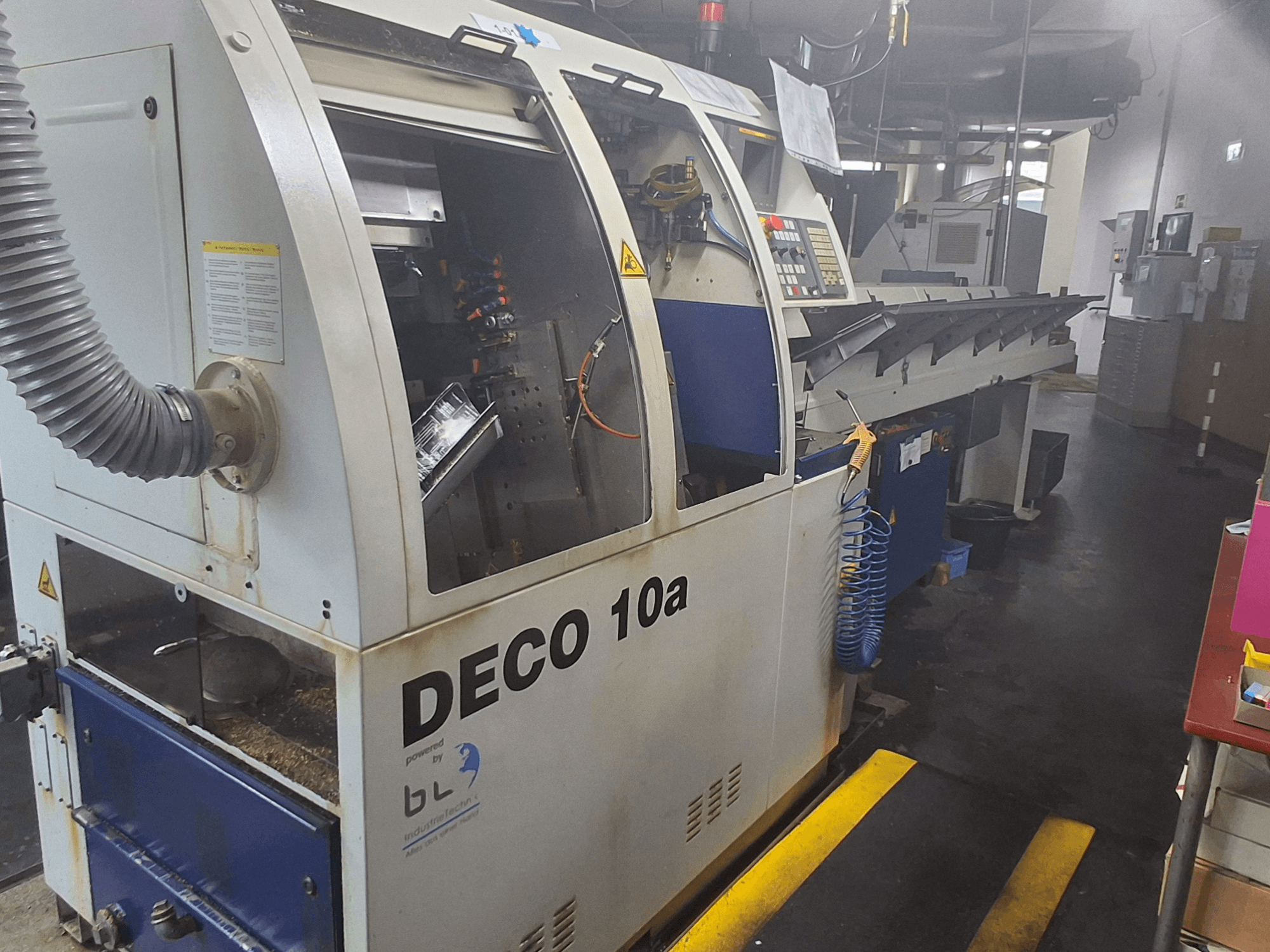

TORNOS - DECO 10aDE-TUR-TOR-2006-00002

• Overhauled in 2016:

  • Checked machine, ball screws (replaced if necessary), guides, guide bushing, main and counter spindles

  • Complete cleaning

  • Maintenance carried out in accordance with Block 3

  • Replacement of all drive belts

  • Barriers, relays, filter mats replaced

  • Reference points adjusted

• Configuration/features:

  • Moving headstock

  • Directed spindle stop (S1)

  • Independent counter spindle (S4)

  • 9 axes with C1 and C4 and Transmit

  • 1 cross slide with 4 tool holders

  • Sensor for tool breakage detection

Additional equipment

• Automatic and integrated bar loader (oil bath) TORNOS-BECHLER Type SSF-210, equipped with Robobar SSF 3 m loading magazine

  • Max. bar length: 3.2 m

  • Bar capacity: min. 2 mm, max. 10 mm

  • Max. diameter without bar preparation: 8 mm (without clamp)

  • “HYBRIDE 10+5” drum with:

    • 14 guide holes for 1–4 mm

    • 14 guide holes for 4.1–10 mm

  • Loading magazine with drum

  • Integrated 25 L hydraulic unit with filter

  • Front/rear support foot, center height 1100 mm

  • Electrical control box (diagram 112.20.300)

  • Motor voltage 400 V, control voltage 24 V

  • Color: Anthracite RAL 7016 / Gray RAL 7035
