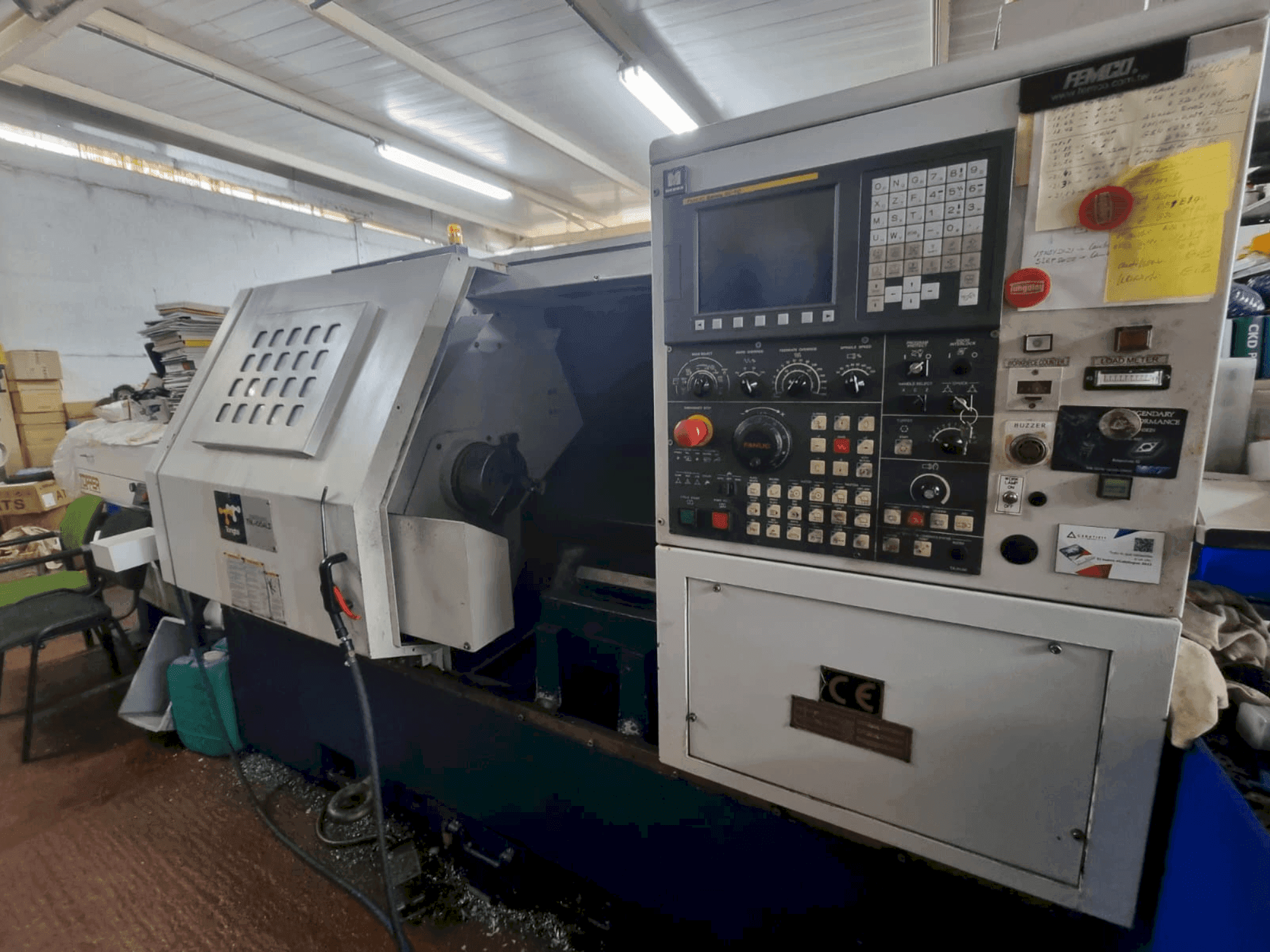

Front view of Tongtai TNL-100 AL machine
Front view of Tongtai TNL-100 AL machine

Tongtai - TNL-100 ALES-TUR-TON-2008-00001

Rs. 2,520,350
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This Tongtai TNL-100 AL was manufactured in 2008. It features a 12-position servo turret, a maximum turning diameter of 320 mm, and a bar capacity of Ø 75 mm. The spindle can reach speeds up to 4,500 rpm, supported by a power range of 11–15 kW. Rapid traverse rates are 18 m/min in X and 20 m/min in Z. Consider the opportunity to buy this Tongtai TNL-100 AL horizontal turning machine. Contact us for more information.

Overview

  • brand: Tongtai
  • year: 2008
  • MODEL: TNL-100 AL
  • application type: Turning
  • Location: Spain
  • machine type: Horizontal Turning Machine

Technical Information - Tongtai TNL-100 AL

General Data

  • Measurements width: 1500 mm
  • Measurements depth: 2700 mm
  • Measurements height: 1900 mm
  • Machine weight: 4300 kg

Main drive

  • Spindle speed range: 4500 1/MIN
  • Spindle motor power: 11–15 kW
  • Number of axis: 2

Movement

  • X-AXIS Rapid traverse: 18 m/min
  • Z-AXIS Rapid traverse: 20 m/min

Turret

  • Number of turrets: 1
  • Number of tool slots: 12
  • Tool taper: VDI

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Max turning diameter: approx. 320 mm
      • - Max bar capacity: Ø 75 mm
      • - Tooling system: vdi turret, live tooling optional
      • - Turret: 1 turret, 12-position servo turret

    Extra information

    • - Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
