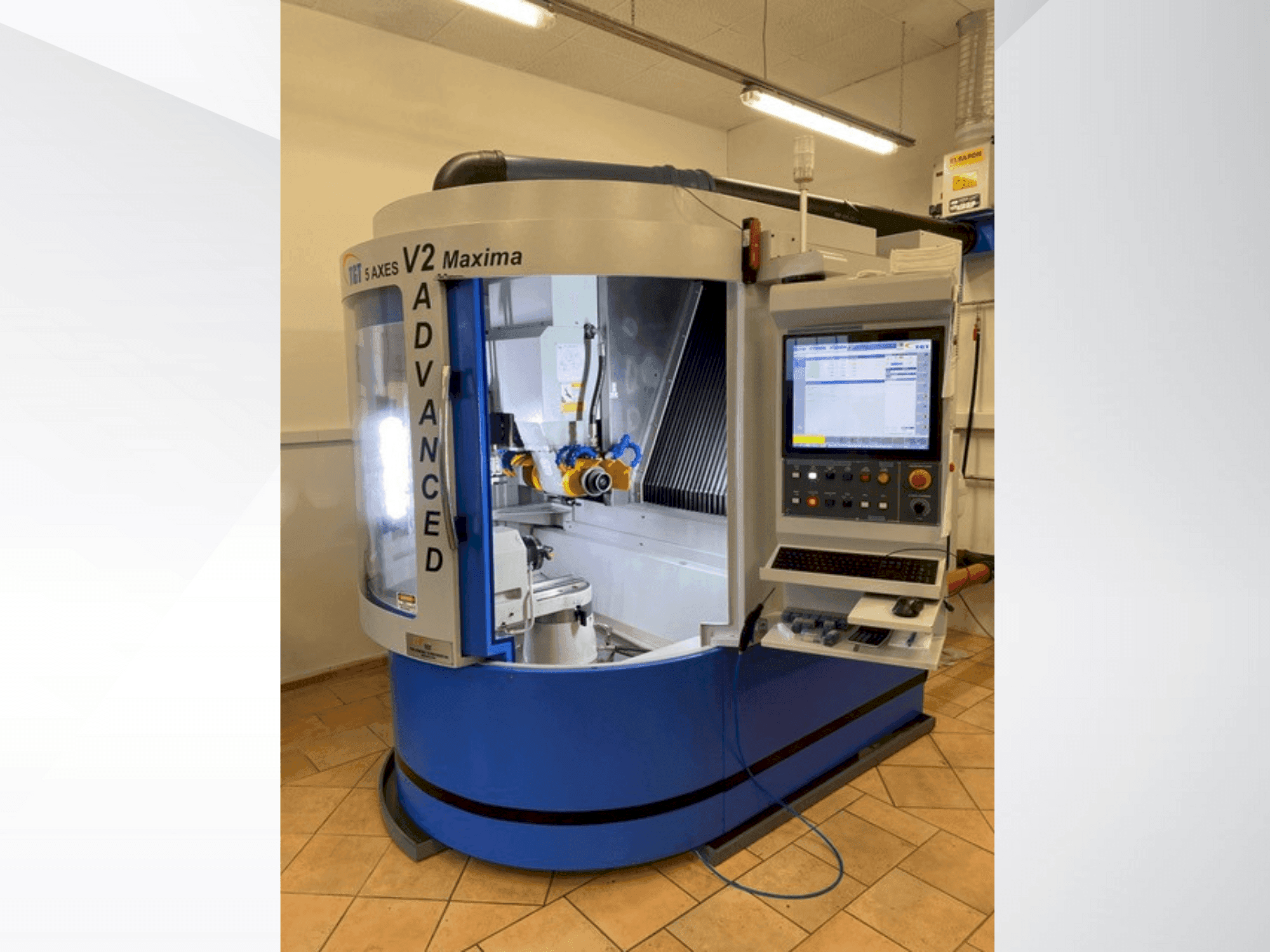

TGT - V2 MaximaAT-OTH-TGT-2020-00001

Additional equipment

• ELBARON grinding mist extraction system / Robot pallets / Collets for all common diameters up to 20 mm / Spare spindle / Sanding wheel packs and associated sanding wheels (Approx. 25 pieces)

Machine Benefits

Technical Machine Benefits

• Operating time: 42000 minutes
• Machine in mint condition / original spare spindle available, eliminating waiting times for spindle maintenance / full description and installation manual included

Extra Information

Spindle bearing: Front/rear: 7010 CTYN DU L P4 (NACHI)/ Lubricating grease: Kluberisoflex Super LDS 18 or NBU 25 (2.75 cc per bearing)/ Tightening torque: 58 Nm (front/rear)/ Concentricity: ≤ 0.002 mm/ Motor: LENZE 7.5 kW (10 hp), 4-pole/ Speed: 0-4500 rpm (frequency converter)/ Belt: PJ-12-1143L (GATES/FENNER)/ 2 Feed drive unit - X- and Z-axis/ Stroke: X-axis: 300 mm/ Z-axis: 680 mm/ Ball screw: Type: Fixed - Supported/ Bearing: 25TAB06DBFLP4 (NACHI, 62 Nm tightening torque)/ Ball screw spindle: BIF 3210A-5 (THK, Ø32 mm, pitch 10 mm)/ Motor: BECKHOFF AM8053-0G20 (11.4 Nm)/ Clutch: SFC 050 DA2-24B-20B (MIKI PULLEY)/ 3 Feed drive unit - Y-axis Stroke: 300 mm/ Ball screw: Bearing: 25TAB06DBFLP4 (NACHI, 62 Nm)/ Ball nut specification: BIF 3210-5 (THK)/ Motor: BECKHOFF AM8061-0GB1 (12.8 Nm)/ Coupling: SFC 060 DA2-20B-32B (MIKI PULLEY)/ / Rotatable table - axis A/ Bearing: 7014 CTYN DUL P4 (NACHI)/ Tightening torque: 255 Nm (front), 62 Nm (rear)/ Radial runout: ≤ 0.002 mm/ Grease: Kluberisoflex Super LDS 18 (3.6 cc per bearing)/ 5th Rotary Table Assembly - C Axis/ Bearing: YRT 100 (GOLDBULL)/ Assembly torque: 14 Nm (3-stage: 40% → 70% → 100%)/ Motor: ORION_230/140 (NIMBLE/UCAM), 238 Nm/ Encoder: RENISHAW/ main coolant system/ Flow rate: 85 L/min/ Tank volume: 400 liters/ Pump: RKM206 (Rajamane, 1.5 kW, 6-stage)/ Filtration: Paper filter Para mol N 334/150 (0.01 mm)/ lubrication layout/ Oil pump: ELU-2700 (Cenlub, 3 liters, 415V AC)/ Metering Cartridge: 320410-3 (LUBE)/ steady rest (manual)/ Vertical stroke: 3 mm/ Diameter range: Ø3-Ø22 mm/ Carriage travel: 120 mm
