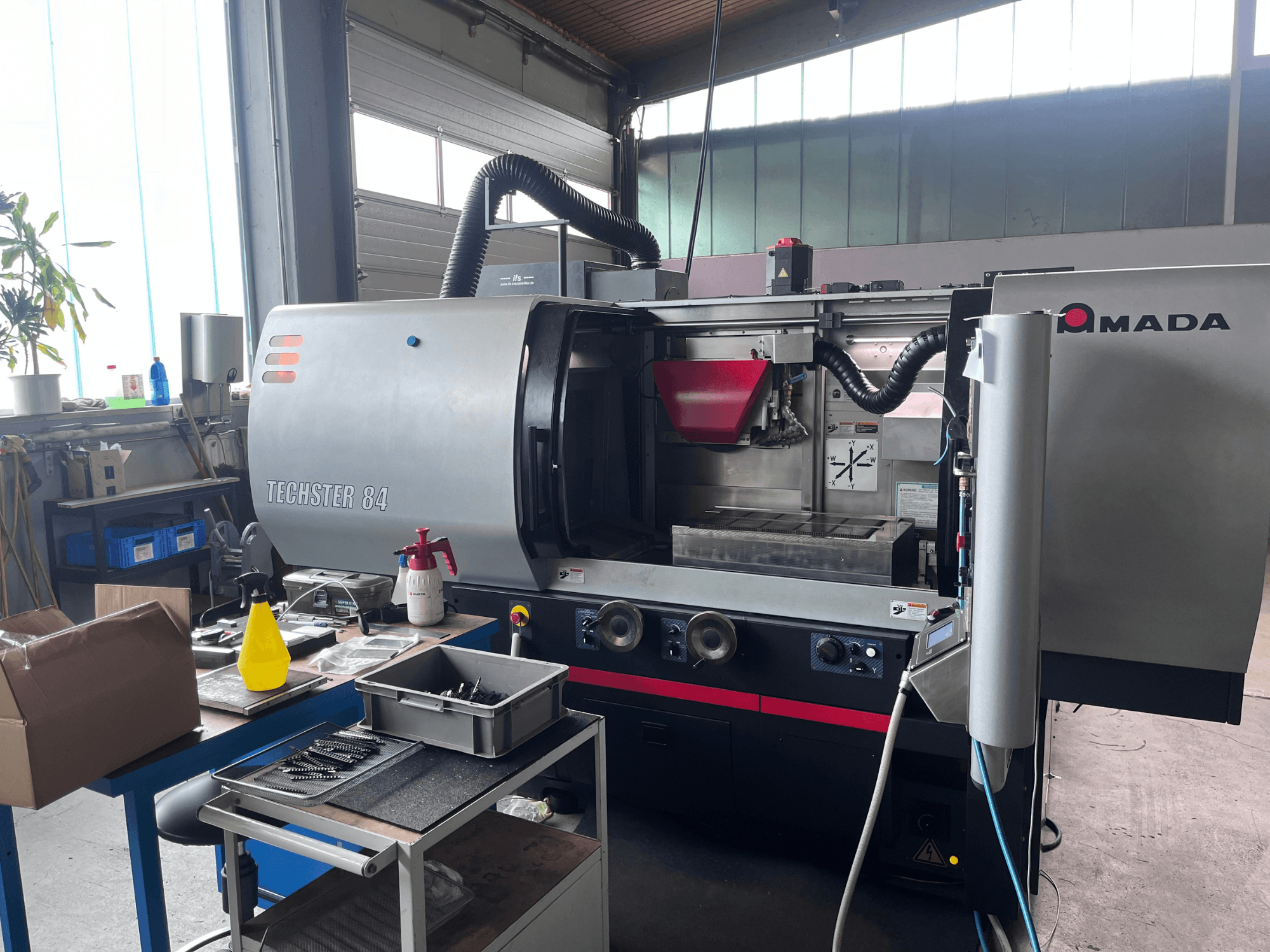

This 3-axis AMADA Techster 84 surface grinding machine was manufactured in 2015. It features an X-axis travel of approximately 780 mm and a Y-axis travel of approximately 450 mm. The machine is equipped with a powerful 7.5 kW spindle motor and a magnetic chuck size of 700 × 400 mm. If you are looking to get high-quality grinding capabilities, consider the AMADA Techster 84 machine we have for sale. Contact us for further details.
Overview
- brand: AMADA
- year: 2015
- MODEL: Techster 84
- production hours: 2286
- application type: Grinding
- Location: Germany
- machine type: Surface Grinding Machine
- control unit brand: FANUC
Technical Information - AMADA Techster 84
Control Unit
- Control Brand: FANUC
- Control Model: Series 32i-MODEL B
Dimensions
- Machine Weight: 5000 kg
- Table Length: 700 mm
- Table Width: 400 mm
Movement
- Number of Axes: 3
- X-axis Travel: 780 mm
- Y-axis Travel: 450 mm
Technical Specification
- Spindle Power: 7.5 kW
Additional Information
Control: FANUC Series 32i-Model B
Power Supply: 200 V
Power Supply Type: 3-Phase
Frequency: 50 Hz
Power Consumption: 23 kVA
Full Load Current: 50 A
Spindle Motor: 7.5 kW (Reinforced)
Grinding Wheel Dimensions: Ø 355 × 38–50 × 127 mm
Distance from Spindle Center to Table: Approx. 500 mm
Magnetic Chuck Size: 700 × 400 mm
Magnetic Chuck Pole Pitch: 4 mm
LED Working Area Lighting
Oil-Cooled Grinding Spindle
Compressor Air-Cooled Spindle Cooling
Temperature Control Accuracy: Approx. ±0.1 K
Automatic Touch Probe
Highskip Feed / High Speed Skip
Ethernet (LAN) Interface
Extended Memory Control Module
FANUC Macro B
Programmable Timer for Automatic Start/Stop and Warm-Up
CE Declaration of Conformity
Band Filter System 450 (E3.1)
Coolant Tank Capacity: Approx. 450 L
Filter Fineness: Approx. 20 µm

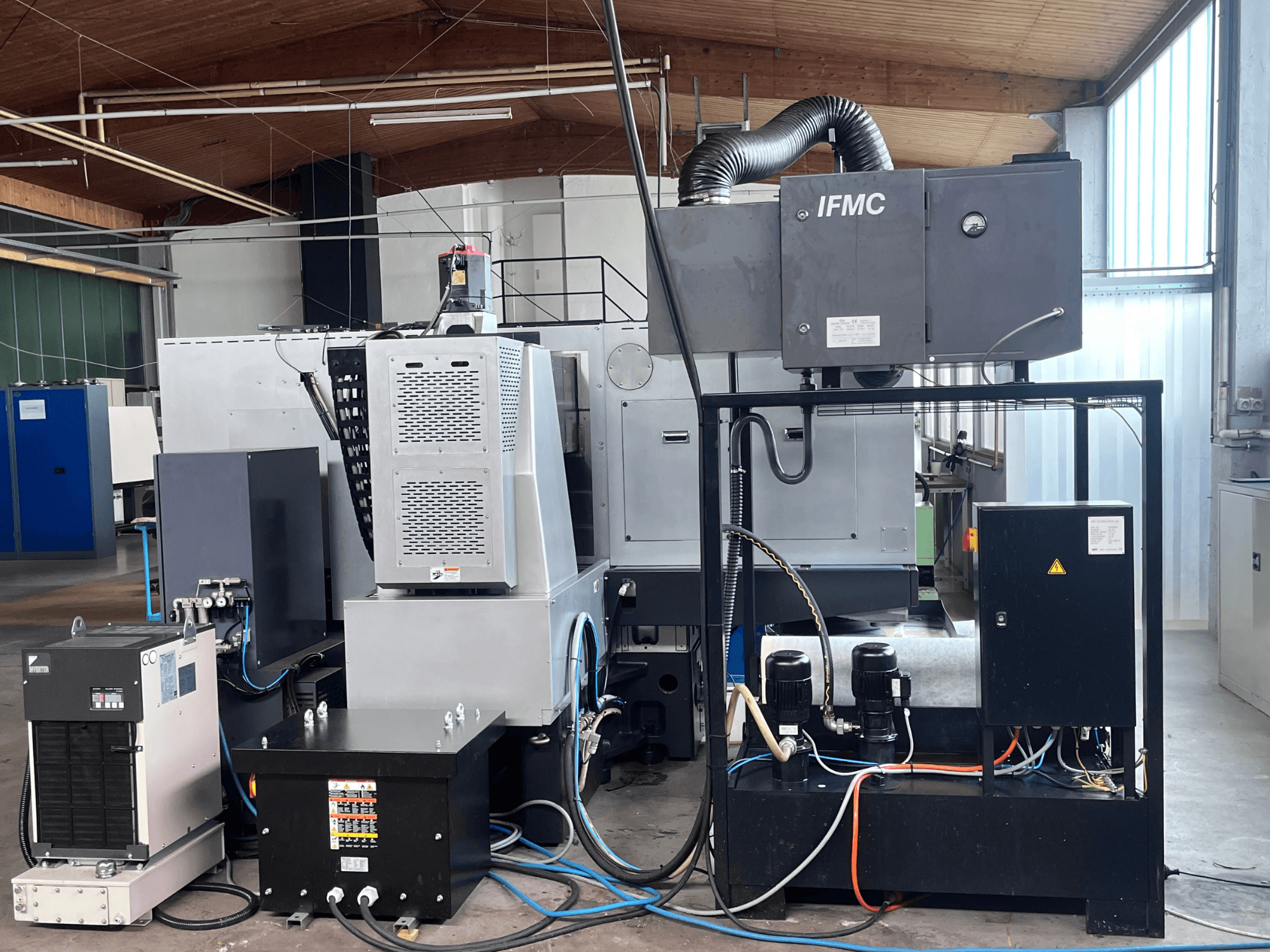

Emulsion Mist Extraction System 1100
IFMC Oil Mist Separator
Machine Demonstration Possible
Grinding Spindle Hours: Approx. 2,286 h
Optional Equipment, not included
WinWop Programming Software for Windows
CGS (Complete Grinding Solutions) CAM Software
Profile Dressing Unit with TPA 100 R
Pre-Dressing Unit VPA 100 R with Motorized Diamond Wheel
Table-Mounted Straight Dresser
Diamond Dressing Arbor R100-40-0.15 CVD
Regrinding Package for Diamond Wheel (Techster 84–104)
100 mm Diamond Wheel for Pre-Dressing Unit
700 mm Stop Bar with Prism
MPM Automatic Wheel Balancing System
Grinding Wheel Flange for Techster 64/84 (Ø 355 mm)
Modified Grinding Wheel Guard
Operating Tool Kit (Keys and Extraction Arbor)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
