➤ Used KNUTH HFS 50100 F NC For Sale | gindumac.com

Show in original language

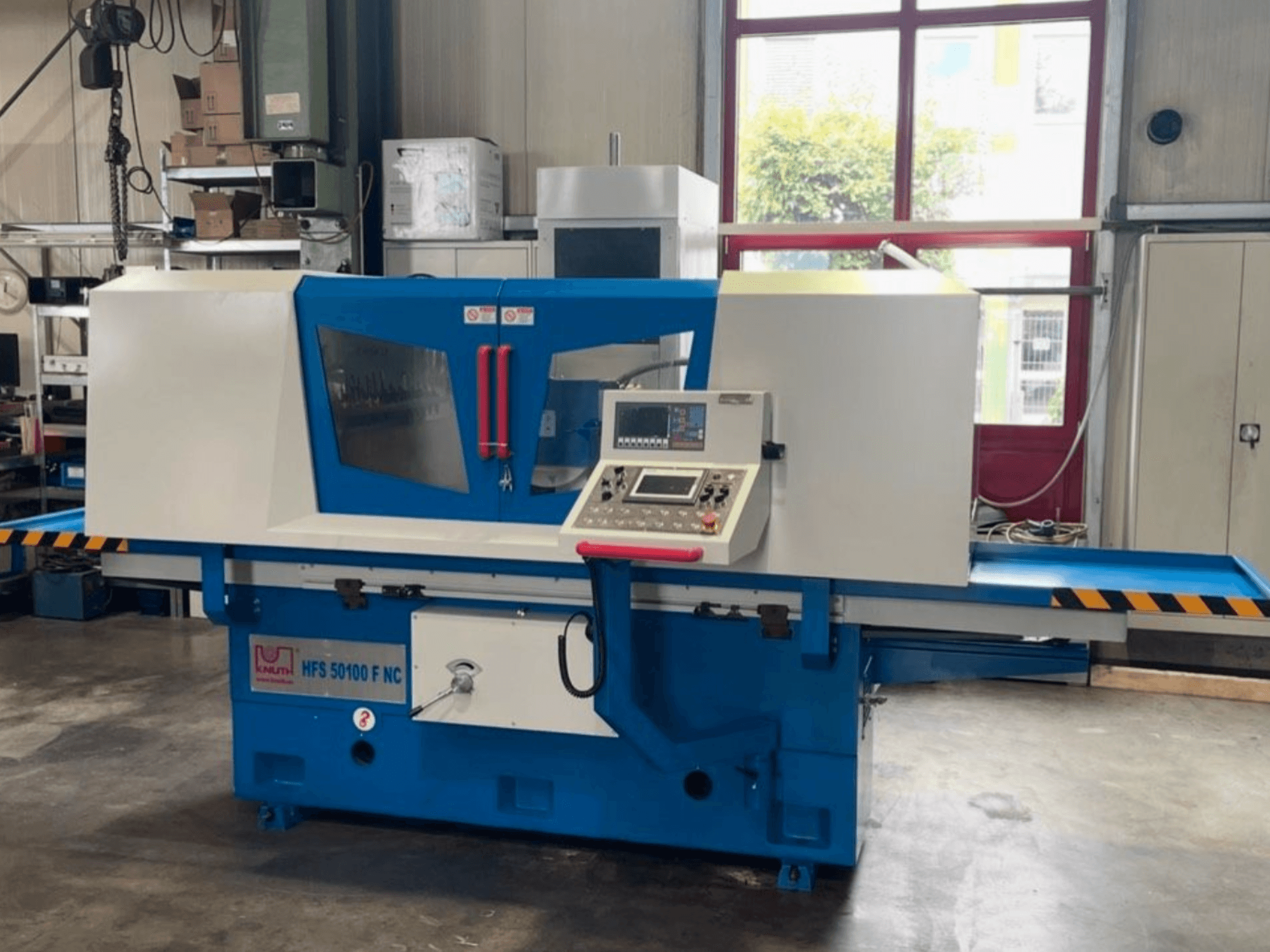

This 3-axis KNUTH HFS 50100 F NC was manufactured in 2023. It features a magnetic table measuring 1000 mm x 500 mm and a powerful total power of 14 kW. The machine includes a coolant system with a paper belt filter and magnetic separator, along with essential accessories such as grinding wheel flanges and precision vises. If you are looking to get high-quality surface grinding capabilities, consider the KNUTH HFS 50100 F NC machine we have for sale. Contact us for further details.

Overview

brand: KNUTH
year: 2023
MODEL: HFS 50100 F NC
application type: Grinding
Location: Germany
machine type: Surface Grinding Machine
control unit brand: SIEMENS

Technical Information - KNUTH HFS 50100 F NC

Control Unit

Control Brand: SIEMENS

Dimensions

Machine Height: 270 mm
Machine Length: 5440 mm
Machine Weight: 5500 kg
Machine Width: 2840 mm
Table Length: 1000 mm
Table Width: 500 mm

Movement

Number of Axes: 3
X-axis Travel: 1000 mm
Y-axis Travel: 500 mm
Z-axis Travel: 500 mm

Additional Information

- Control: Siemens Smart Line Touch

- Magnetic table: 1000 mm x 500 mm

- Total Power: 14 kW

- Voltage: 400 V

- Frequency: 50/60 Hz

- Grinding wheel size: D350 x 40 mm

- Coolant System: Coolant system with paper belt filter and magnetic separator

- Included Accessories: 2x grinding wheel flanges, grinding wheel dresser, balancing stand with balancing shaft, 1x Röhm precision vise (PL-120S), 2x Röhm precision vise (PL-70S), hydraulic oil (approx. 80 L in canister)

- Documentation: Complete machine documentation and service reports available

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
