GER - SC 80-40 ES-GRI-GER-2006-00001

Rs. 5,543,423
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

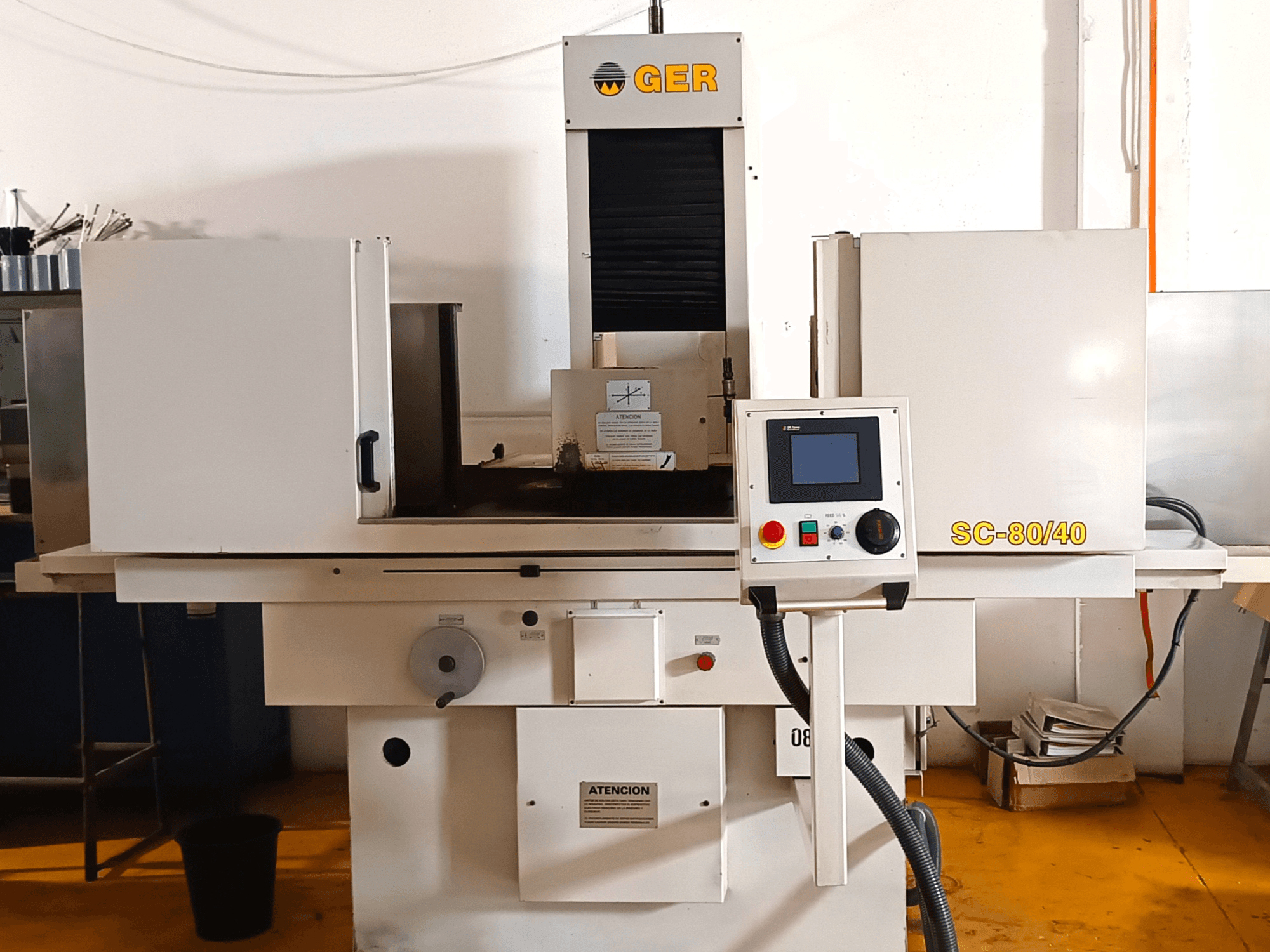

This 3-axis GER SC 80-40 surface grinding machine was manufactured in 2006. It features a maximum grinding capacity of 800 × 450 mm and an X-axis travel of 860 mm. The machine is equipped with a FANUC Series 0i-Mate CNC control and a powerful 3.7 kW grinding wheel motor. If you are looking to get high-quality grinding capabilities, consider the GER SC 80-40 machine we have for sale. Contact us for further details.

Overview

  • brand: GER
  • year: 2006
  • MODEL: SC 80-40
  • application type: Grinding
  • Location: Spain
  • machine type: Surface Grinding Machine
  • control unit brand: FANUC

Technical Information - GER SC 80-40

Control Unit

  • Control Brand: FANUC
  • Control Model: Series 0i-Mate

Dimensions

  • Machine Height: 2100 mm
  • Machine Length: 2800 mm
  • Machine Weight: 3000 kg
  • Machine Width: 2000 mm
  • Table Load: 400 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 860 mm
  • Y-axis Travel: 400 mm
  • Z-axis Travel: 375 mm

Technical Specification

  • Spindle Power: 3.7 kW

Additional Information

  • Type of drive: Longitudinal drive: Hydraulic; Cross and Vertical drives: Servo Motors

  • Closure: 4-Sided

Table

  • Outer length: 800 mm

  • Outer width: 400 mm

  • Magnetic table: Yes

  • Max distance between vertical spindle and table: 625 mm

  • Maximum Grinding Capacity: 800 × 450 mm

  • Maximum Grinding Height: 340 mm

  • Automatic Vertical Feed: Yes

  • Grinding Wheel Dimensions: Ø300 × 50 × Ø76.2 mm

  • Automatic Wheel Dressing: Yes

  • Coolant Filtration System: Decanting Filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
