GER - SE 200-75ES-GRI-GER-2001-00002

Rs. 25,158,613
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

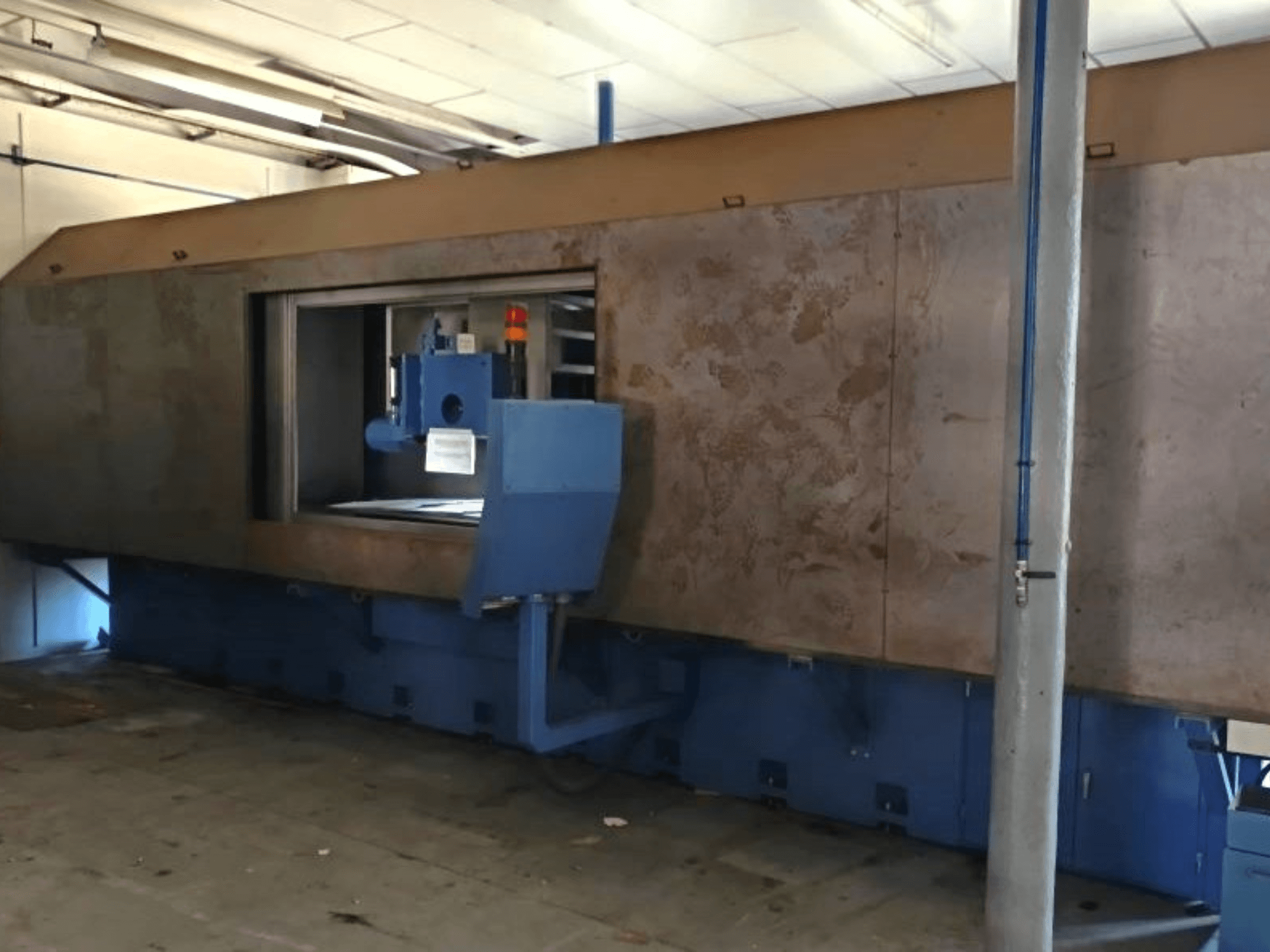

This 3-axis GER SE 200-75 was manufactured in 2001. It features a maximum grinding dimension of 2000 × 800 mm and an impressive X-axis travel of 2150 mm. The machine is equipped with FAGOR servo motors and a powerful 15 kW grinding wheel motor. If you are looking to get high-quality grinding capabilities, consider the GER SE 200-75 surface grinding machine we have for sale. Contact us for further details.

Overview

  • brand: GER
  • year: 2001
  • MODEL: SE 200-75
  • application type: Grinding
  • Location: Spain
  • machine type: Surface Grinding Machine
  • control unit brand: FAGOR

Technical Information - GER SE 200-75

Control Unit

  • Control Brand: FAGOR

Dimensions

  • Machine Length: 3130 mm
  • Machine Weight: 12000 kg
  • Machine Width: 7770 mm
  • Table Load: 1500 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 2150 mm
  • Y-axis Travel: 750 mm
  • Z-axis Travel: 500 mm

Technical Specification

  • Spindle Power: 15 kW

Additional Information

  • Automatic cycles: Cycle-Based Programming

  • Type of drive: Servo Motors

  • Closure: Full Enclosure

Table

  • Outer length: 2000 mm

  • Outer width: 750 mm

  • Max distance between vertical spindle and table: 700 mm

Extra Information

  • Maximum Grinding Dimensions: 2000 × 800 mm

  • Maximum Grinding Height: 450 mm

  • Grinding Wheel Dimensions: Ø400 × 75 × Ø127 mm

  • Automatic Wheel Balancer

  • Grinding Wheel Speed Control: Variable Speed Drive

  • Hydraulic Table-Mounted Wheel Dresser: Yes

  • Automatic Vertical Feed: Yes

  • Automatic Wheel Dressing with Compensation: Yes

  • Coolant Filtration System: Decanting Filter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
