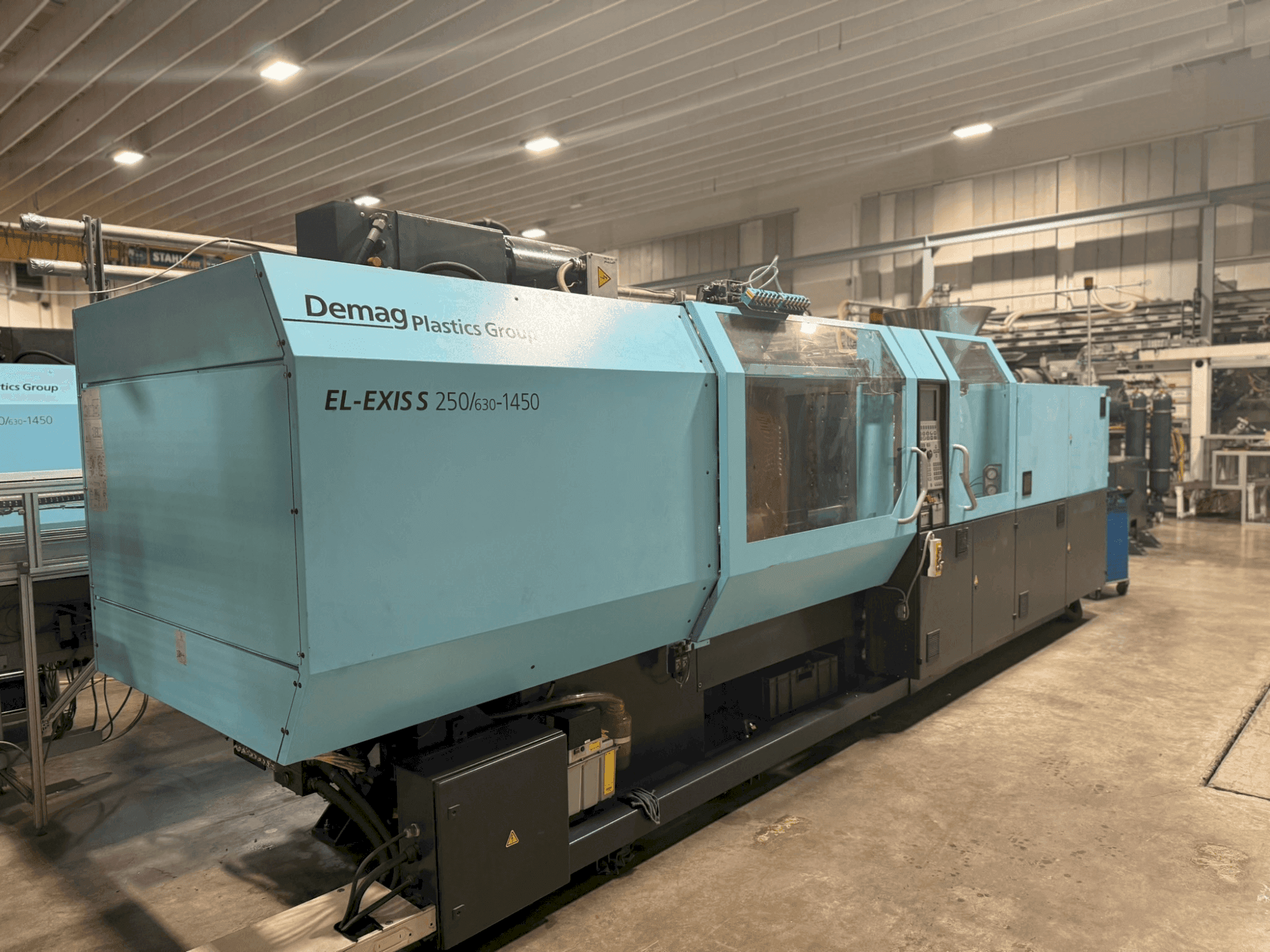

SUMITOMO SHI DEMAG - El-Exis S 250/630-1450DE-INJ-SUM-2005-00001

5x similar units available

Central accumulator for high-speed injection; core, ejector, and nozzle movement

Nozzle movement parallel to mold movement

Chromed tie bars on clamping unit

Pump drive power: 22.0 kW

Mains voltage: 400 V / 50 Hz, 3 Ph + N + PE

Separate mains connections for drive and heating

Control: color data display with VGA interface and AT keyboard interface

Injection, holding pressure, and back pressure via servo valve

Reinforced oil cooler

Separate water connections for mold and oil cooling

Compliance: Basic version Europe, according to valid safety regulations

Painting: Bottom anthracite grey RAL 7016; Top blue 571C MD

Elastic machine mounting

Ultrasonic displacement measuring system with digital data transmission for injection, ejector, mold (WZ), and nozzle (AWH) movements; 1/100 mm resolution for injection axis

Reduced centering diameter (D=100/125) for fixed mold platen

Mold connection dimensions type E (similar to EUROMAP), without side ejector plate

Standard mold installation height

Safety interlock: mold opening and ejector forward only with closed safety door

Ejector with position control via proportional valve; pressure and velocity independently programmable

Electric screw drive, frequency-controlled
