- STYLE 750 (900 dbc) Lathe

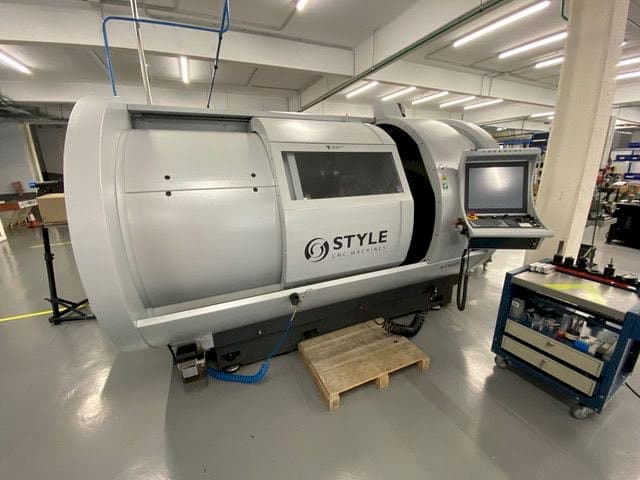

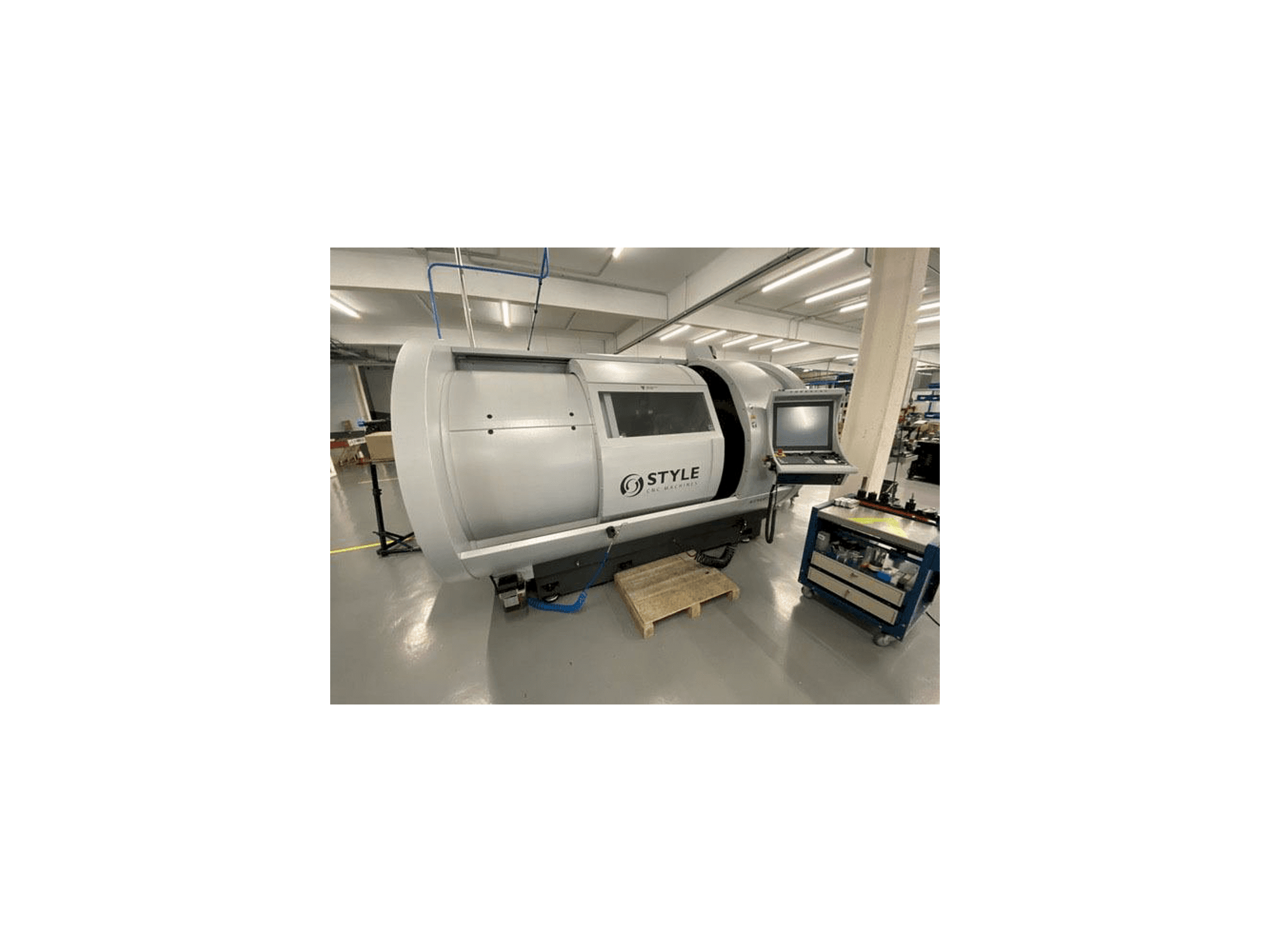

This STYLE 750 (900 dbc) Lathe was manufactured in the year 2020 in the Netherlands and has 413 production hours. The machine has a spindle speed of 2000 rpm. The Original PDF of the machine is attached. See below for further details.
Overview
- brand: STYLE
- year: 2020
- MODEL: 750 (900 dbc)
- production hours: 413
- application type: Turning
- Location: Andorra
- machine type: Lathe
- availability: Sold
Technical Information - STYLE 750 (900 dbc)
General Data
- Measurements width: 3100 mm
- Measurements depth: 2300 mm
- Measurements height: 2200 mm
- Machine weight: 4700 kg
Main drive
- Spindle speed range: 2000 1/MIN
- Spindle motor power: 23 kW
- Tool taper: A2-11
- Number of axis: 2
Additional Information
- Technical Machine Benefits:
- - Machine colour frame ral 7021
- - Sheet metal ral 9006
- - Swing over bed 750 mm
- - Swing over support 530 mm
- - Distance between centers 900 mm
- - Bed width 450 mm
- - Maximum weight between centres 1500 kg
- - Maximum weight in combination with steady rest 2000 kg
- - Maximum main spindle torque 4090 nm
- - Spindle bore Ø105 mm
- Qualitative Machine Benefits:
- - X and z-axis
- - Ball screw spindle Ø x-axis 32 mm
- - Ball screw spindle Ø z-axis 50 mm
- - Rapid movement 8 m/min
- - Feed rate 0. 01-1000 m/min
- - Tail stock: quill Ø 105 mm quill stroke 225 mm quill taper mt 5
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Alessandro Martini
Payment Terms
Payment in advance
Asset Financing
