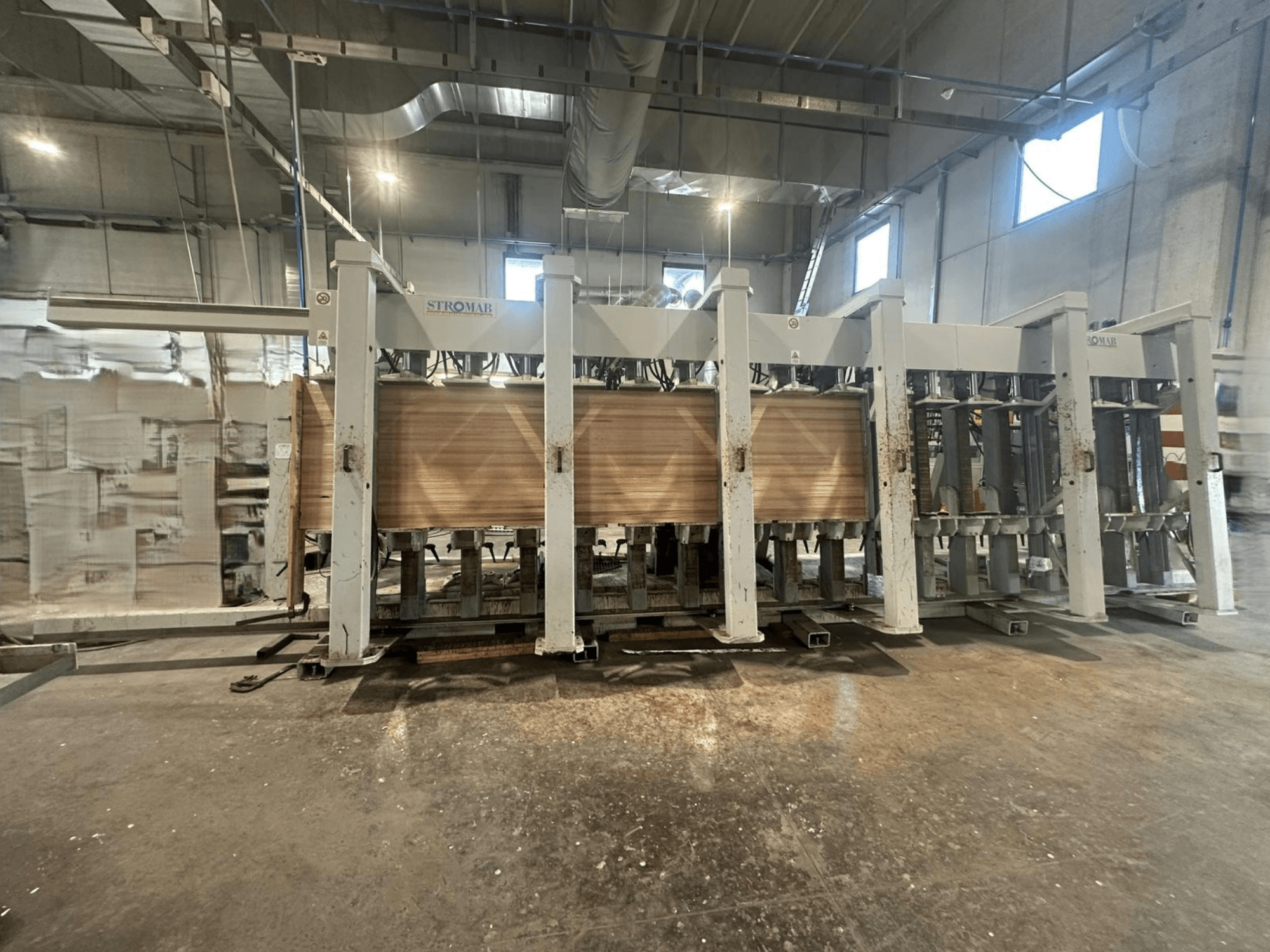

This STROMAB SL3 laminating press was manufactured in 2019. It features a working area with lengths from 3,000 mm to 20,000 mm, a height of 1,200 mm, and a maximum beam width of 200 mm. Equipped with three vertical cylinders per meter, each cylinder exerts a force of 7,200 kg at 200 bar. It includes an integrated hydraulic power unit with independent pressure adjustments. Contact us for more information about this machine.
Overview
- brand: STROMAB
- year: 2019
- MODEL: SL3
- application type: Pressing / Laminating
- Location: Italy
- machine type: Laminating Press
Technical Information - STROMAB SL3
Dimensions
- Machine Height: 1200 mm
- Machine Length: 20000 mm
Additional Information
Working area:
Useful length: 3,000–20,000 mm
Useful height: 1,200 mm
Maximum beam width: 200 mm
Cylinders & pressure:
Number of vertical cylinders per meter: 3
Diameter of vertical cylinders: 70 mm
Force per cylinder at 200 bar: 7,200 kg
Specific pressure: 8–11 kg/cm²
Hydraulic specifications:
Integrated hydraulic power unit
Independent pressure adjustment for vertical and frontal cylinders
Dedicated pressure gauges
Double-push safety system for activation
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
