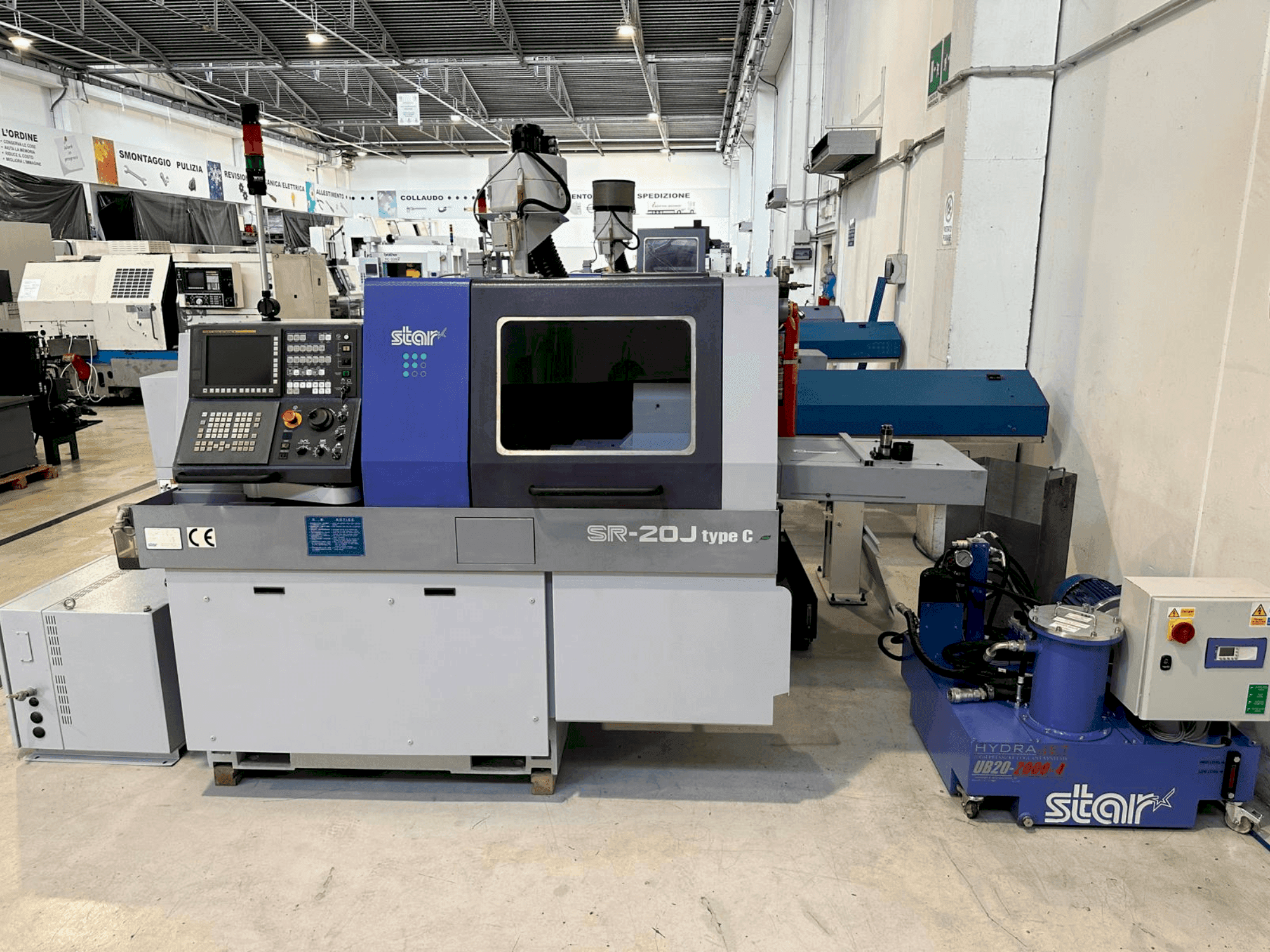

Front view of Star SR-20J type C  machine

Star - SR-20J type CIT-TUR-STA-2019-00001

Rs. 9,418,150
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 7-axis Star SR-20J type C Swiss Type Turning machine was manufactured in 2019. It features a maximum machining diameter of 20mm, headstock stroke of 205mm, and spindle speeds up to 10,000rpm. Equipped with a FMB Minimag 3200/A bar feeder, high-pressure coolant system, and a parts conveyor, the Star SR-20J type C machine we have for sale represents a robust addition to any precision manufacturing setup. Contact us for more information.

Overview

  • brand: Star
  • year: 2019
  • MODEL: SR-20J type C
  • application type: Turning
  • Location: Italy
  • machine type: Swiss Type Turning
  • availability: Immediately
  • control unit brand: Fanuc

Technical Information - Star SR-20J type C

General Data

  • Measurements width: 1200 mm
  • Measurements depth: 2250 mm
  • Measurements height: 1700 mm
  • Machine weight: 2200 kg

Control Unit

  • Brand: Fanuc
  • Model: Series 31i-Model B

Main drive

  • Spindle speed range: 10000 rpm 1/MIN
  • Spindle motor power: 3.7 kW
  • Number of axis: 7

Workpiece

  • Workpiece drm: Ø20mm

    Additional equipment

    • - High Pressure Coolant System: Hydrajet UB20-2000-4
    • - Mist Extraction Unit: Filtermist S400
    • - Fire Suppressor: Fire Trace
    • - Tool Detection System: Yes
    • - Parts Conveyor: Yes
    • - Signal Production Tower: Werna

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Bar feeder: fmb minimag 3200/a
        • - Rapid feed rate 35m/min, maximum spindle speed 10,000 rpm, maximum driven tool speed 8,000 rpm
        • - Includes advanced safety and environmental management systems (fire suppressor, mist extraction), tool detection system

      Extra information

      • - Manuals included Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
