STAMA - MC 546/SDE-MIL-STA-2000-00003
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used STAMA MC 546/S For Sale | gindumac.com

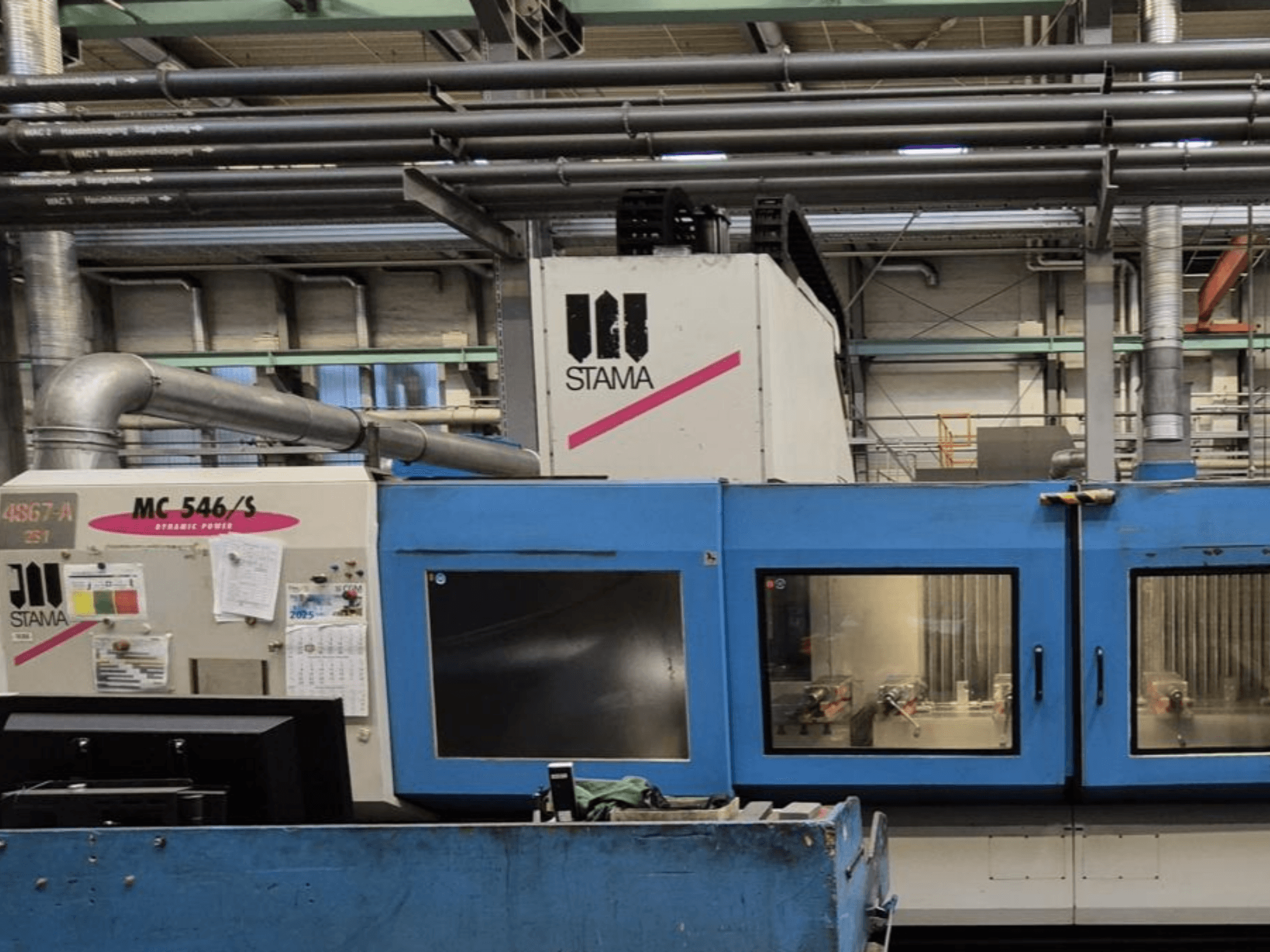

This 3-axis STAMA MC 546/S was manufactured in 2000. It features a powerful main spindle motor with a maximum speed of 8,000 RPM and a torque of 180 Nm. The machine is equipped with Siemens control and motors for precise operation. If you are looking to get high-quality machining capabilities, consider the STAMA MC 546/S vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: STAMA
- year: 2000
- MODEL: MC 546/S
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - STAMA MC 546/S
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D
Movement
- Number of Axes: 3
- X-axis Travel: 4000 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 750 mm
Technical Specification
- Spindle Power: 28 kW
- Spindle Speed: 8000 RPM
Additional Information
Main spindle: Siemens motor
Torque: 140 / 180 Nm
Magazine motor: Siemens (5.0 Nm, 3,000 rpm)
Linear gripper motor: Siemens (4.5 Nm, 3,000 rpm)
5th axis motor: Siemens
X-axis motor: Siemens (18.5 Nm, 3,000 rpm)
Y-axis motor: Siemens (18.5 Nm, 3,000 rpm)
Z-axis motor: Siemens (18.5 Nm, 3,000 rpm)
Tool holder: Likely SK40 (based on MC 546 standard; to be confirmed)
Included features: Weekend switch-off circuit; internal lighting
Not included: Clamping table; vices
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
