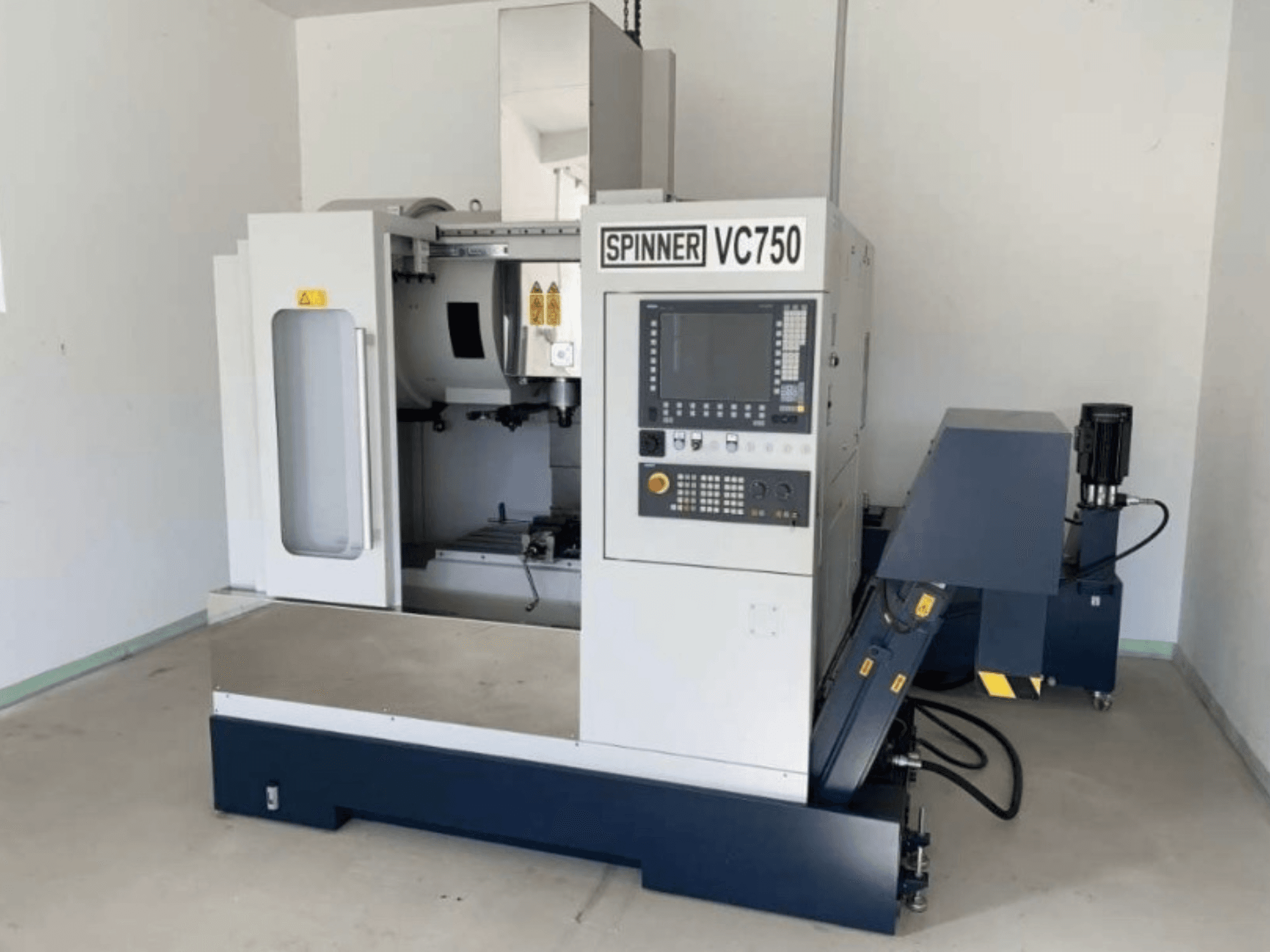

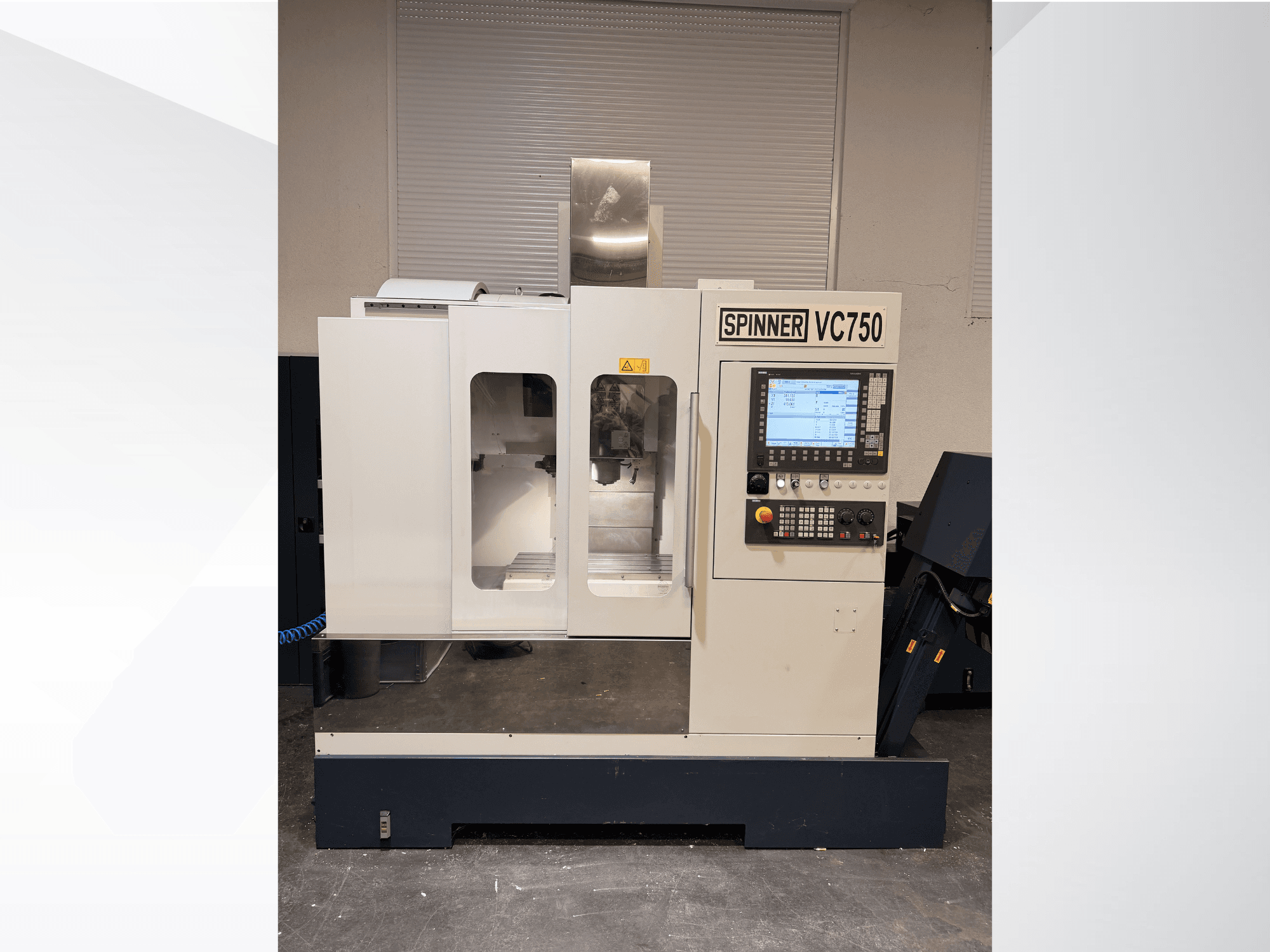

This 3s SPINNER VC 750 vertical machining centre was manufactured in 2016. It features a Siemens 840D sl control system, a spindle speed of up to 12,000 RPM, and a high-speed double-arm tool changer with 24 tool stations. With low spindle hours and a focus on prototyping applications, consider the opportunity to buy this SPINNER VC 750 vertical machining centre. Contact us for further details.
Overview
- brand: SPINNER
- year: 2016
- MODEL: VC 750
- application type: Milling
- Location: Austria
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER VC 750
Control Unit
- Control Brand: SIEMENS
- Control Model: 840D sl
Movement
- Number of Axes: 3
- X-axis Travel: 760 mm
- Y-axis Travel: 460 mm
- Z-axis Travel: 460 mm
Technical Specification
- Spindle Power: 11 kW
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Programming: Siemens ShopMill-OPERATE (conversational)
Spindle: in-line direct drive (Combi-Drive); pull studs DIN 69872-A
Coolant: Internal coolant supply (IKZ; noted as high-pressure)
Rapid traverse: 36 m/min
Guideways: Linear guides on X/Y/Z
Tool changer: High-speed double-arm, 24 stations; spindle taper blow-out device
Enclosure: Full splash guard housing
Standard equipment: Coolant system, workspace lighting
Installation: Leveling elements included
Finish: Two-tone paint RAL 7035 (light grey) / RAL 5008 (grey-blue)
Condition: Approx. 100 spindle hours (prototype use; like-new)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
