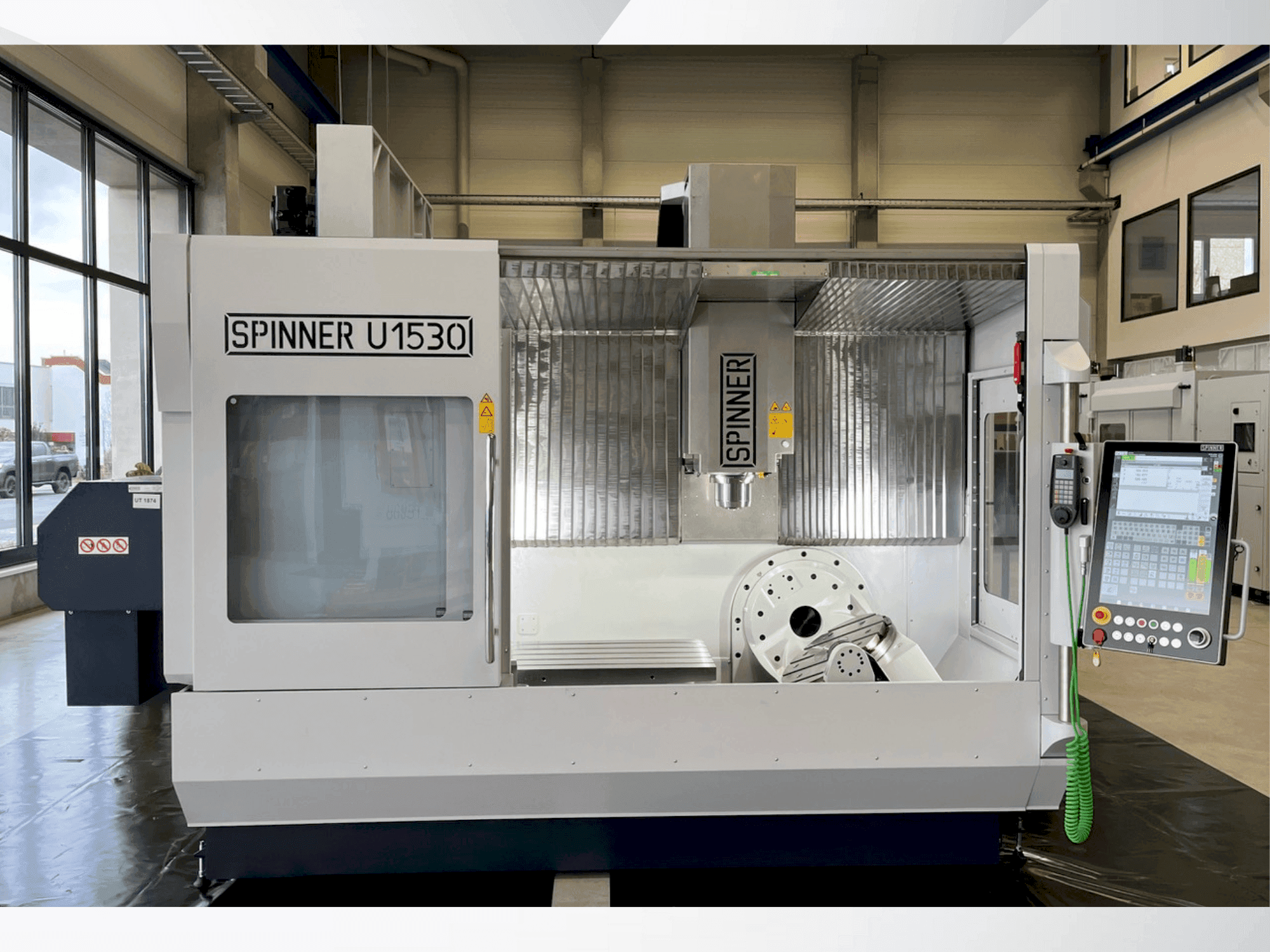

This 5-axis SPINNER U5-1530 vertical machining center was manufactured in 2023. It features a SIEMENS sinumerik one control, Spios 24 touch, a combination rotary tilting table, and a fixed table. Equipped with a Blum spindle probe TC52, high pressure through spindle, and a chip conveyor. A great opportunity to buy this SPINNER U5-1530 vertical machining center. Contact us for further details regarding this vertical machining center.
Overview
- brand: SPINNER
- year: 2023
- MODEL: U5-1530
- production hours: 47
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: SIEMENS
Technical Information - SPINNER U5-1530
Control Unit
- Control Brand: SIEMENS
- Control Model: Sinumerik one - Spios 24 touch
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 5
Technical Specification
- Spindle Speed: 12000 RPM
- Taper Size: SK 40
Additional Information
Additional equipment
- Number of Tools: 54 / IKZ: Yes (22 bar)
- Combination rotary tilting table and fixed table / Blow air on the spindle stock
- Blum spindle probe TC52 / 2-axis rotary tilting table: Diameter 650 mm / Swiveling Range: B = 5°(-90°)/+110°
- Fixed table on the left in the work area: Clamping device top plate 160 mm removable
- Direct measuring systems in X/Y/Z, B/C
- P-valve for zero point turbo spark / Blowing air on the headstock / Robot flap on the right
- UNIROB universal robot interface / BLUM spindle probe TC52 / GRESSEL zero-point clamping package
- SW package ONE-Dyn. Operate 3A-Fr. 3D simulation / Cycle 996 for kinematics measurement
- DFX-Reader
Machine Benefits
Qualitative Machine Benefits
- Improved machining accuracy and surface finish
- Reliable operations with advanced control system from siemens
- Advanced control system with siemens sinumerik one for precise operations
- Enhanced automation capabilities with robot interface and flap
Technical Machine Benefits
- High precision with blum spindle probe tc52
- Efficient chip removal with chip conveyor
- Enhanced cooling performance with high pressure through spindle (22 bar)
- Large tool capacity (54 tools with sk40 holder)
- Direct measuring systems in all axes for high precision
Extra Information
Machine has preparation for automation: - Rotary feed-through in the table - Robot flap - Corresponding control technology. // Manufactuirer warranty until 31.12.2024
