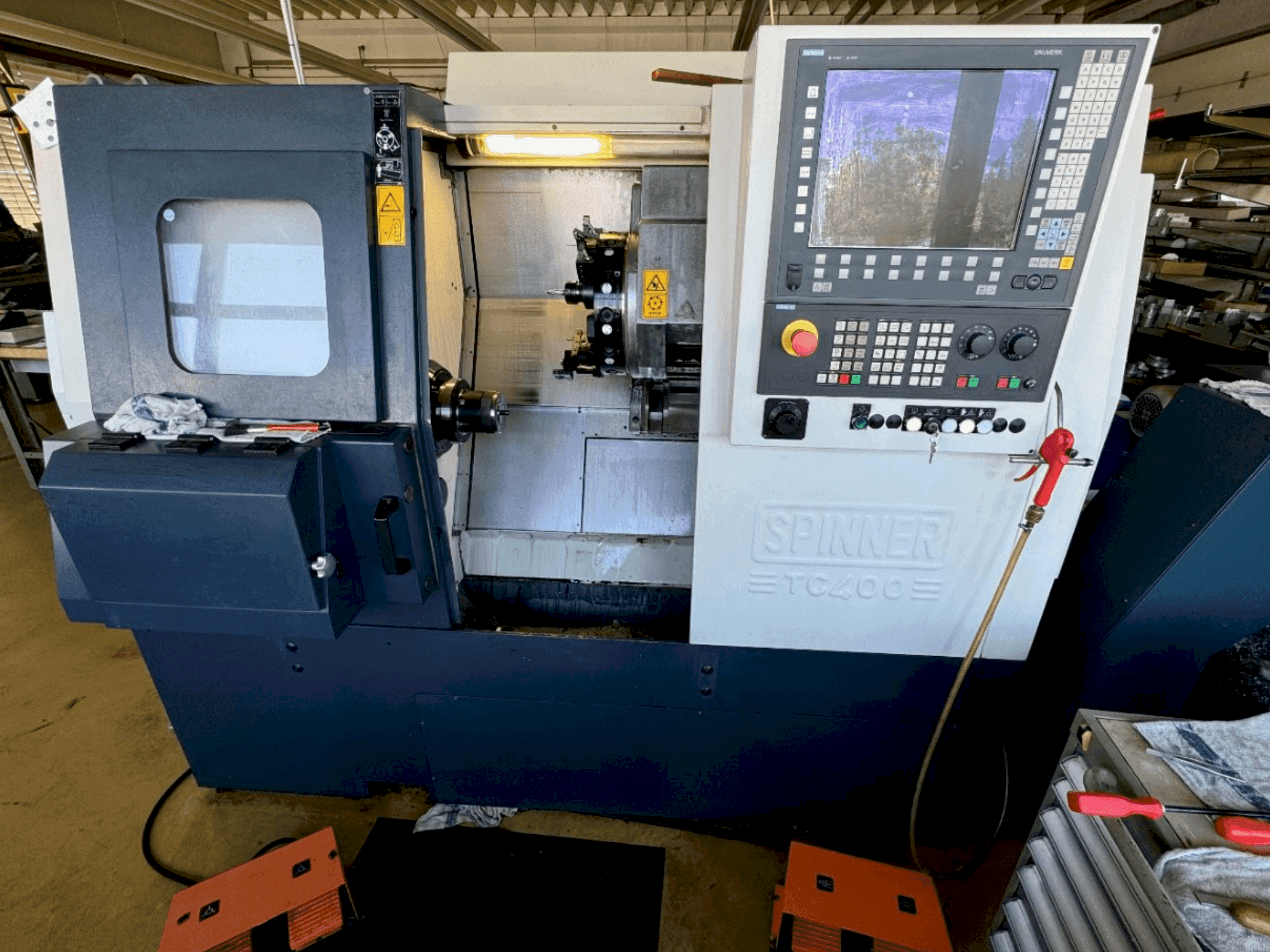

SPINNER TC400

Photo Gallery

SPINNER - TC400DE-TUR-SPI-2016-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used SPINNER TC400 For Sale | gindumac.com

Show in original language

This 3-axis SPINNER TC400 was manufactured in 2016. It features a Siemens 840D control system, digital AC drive motors, and a main spindle capable of 6,000 rpm with a 42mm capacity. The machine includes a C-axis, 12 driven tool stations, and a chip conveyor. Ideal for working with materials like plastics, aluminum, and stainless steel. A great opportunity to buy this SPINNER TC400 universal machining centre. Contact us for further details regarding this universal machining centre.

Overview

brand: SPINNER
year: 2016
MODEL: TC400
application type: Milling
Location: Germany
machine type: Universal Machining Centre

Technical Information - SPINNER TC400

Main drive

Number of spindles: 1
Spindle speed range: 6000 rpm 1/MIN
Spindle motor power: 10 kW
Number of axis: 3

Movement

X-AXIS Movement: 200 mm
Z-AXIS Movement: 515 mm

Media

Chip conveyor: Yes
Internal cooling: Yes

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Drive motors for x/z and spindle in digital ac technology
- - Glass scale in x-axis
- - Turning spindle as integrated motor spindle with water cooling
- - C-axis for spindle incl.
- - Transmit software option
- - Hydraulic hollow clamping cylinder
- - Long collet chuck device
- - Plastics, aluminium, stainless steel, brass, nickel silver
- - Scope of delivery: - tailstock mk4 - toolsetter - tool holder - 4 driven tools - collets Ø 3 - Ø 42 - chip conveyor

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Documents

tech specs EN.pdf
