SPINNER TC 65 MC Lathe Machine

Show in original language

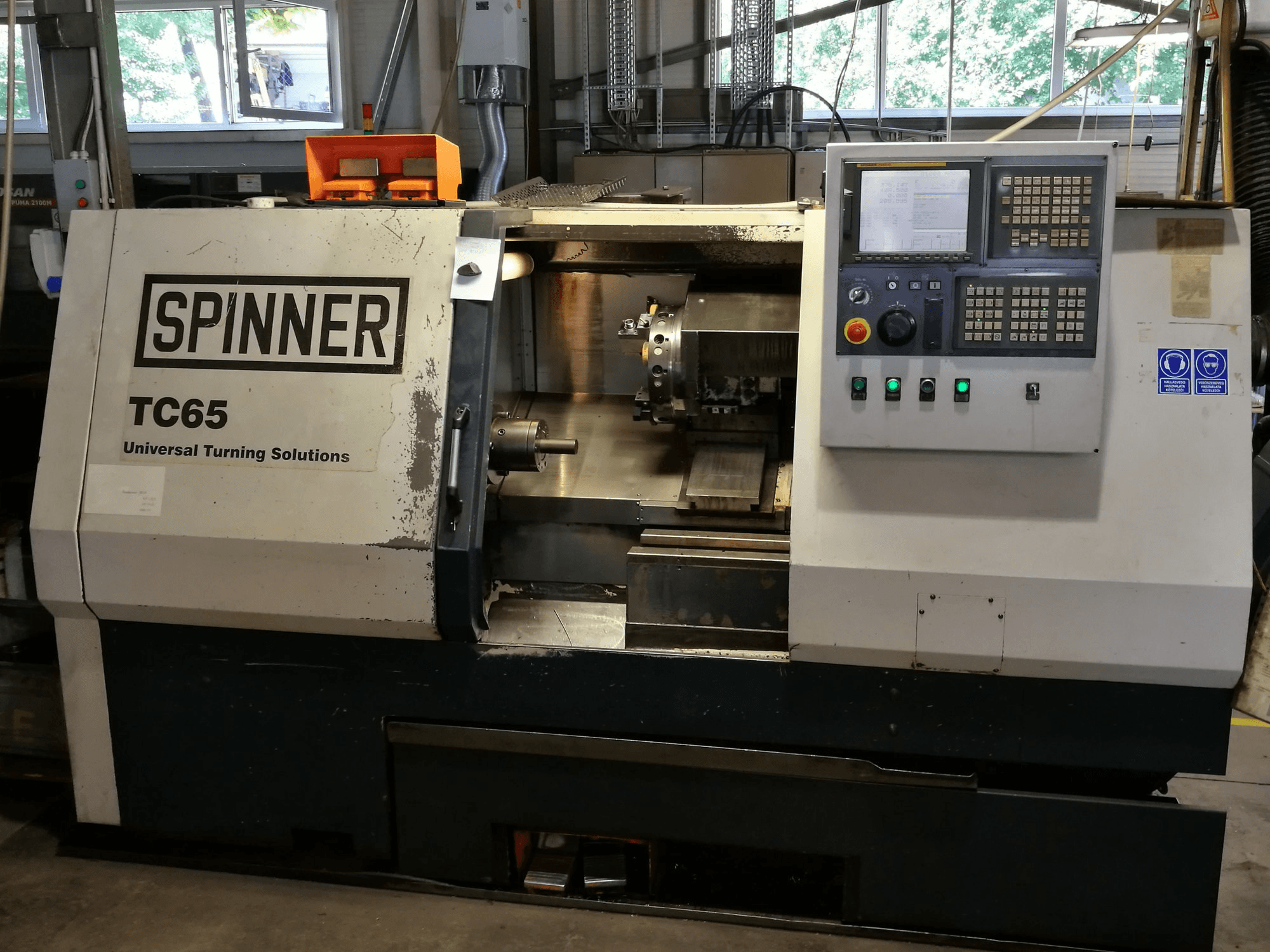

This SPINNER TC 65 MC Lathe from 2004 was manufactured in Germany and has been operative for 33000 hours. Equipped with a SPINNER FANUC 21i Control unit, this robust machine has mainly worked with steel and stainless steel during the past. Several additional equipment is included in the delivery including tool holders, soft jaws and a hydrobar among others.

Overview

brand: SPINNER
year: 2004
MODEL: TC 65 MC
production hours: 33000
application type: Turning
Location: Hungary
machine type: Turn-Mill Centre
availability: Sold

Technical Information - SPINNER TC 65 MC

General Data

Measurements width: 1400 mm
Measurements depth: 2900 mm
Measurements height: 1700 mm
Machine weight: 4200 kg

Control Unit

Model: FANUC 21i

Main drive

Number of spindles: 1
Spindle speed range: 4500 1/min

Movement

X-AXIS Movement: 230 mm
Z-AXIS Movement: 640 mm

Workpiece

Workpiece drm: 310 mm

Turret

Number of turrets: 1 (12 positions)

Media

Main electronic connection: 3x400V
Power consumption: 35 A

Additional equipment

- SMW Power Chuck D250
- Collet Chuck D65 (for Collet 185E)
- Collet Chuck D42 (for Collet 173E)
- LNS Hydrobar
- 20 pcs of tool holders
- 3 pcs of rotary tool holders
- Soft Jaws (5 sets in used condition)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
