SPINNER - MVC 1600DE-MIL-SPI-2013-00002

Sold

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

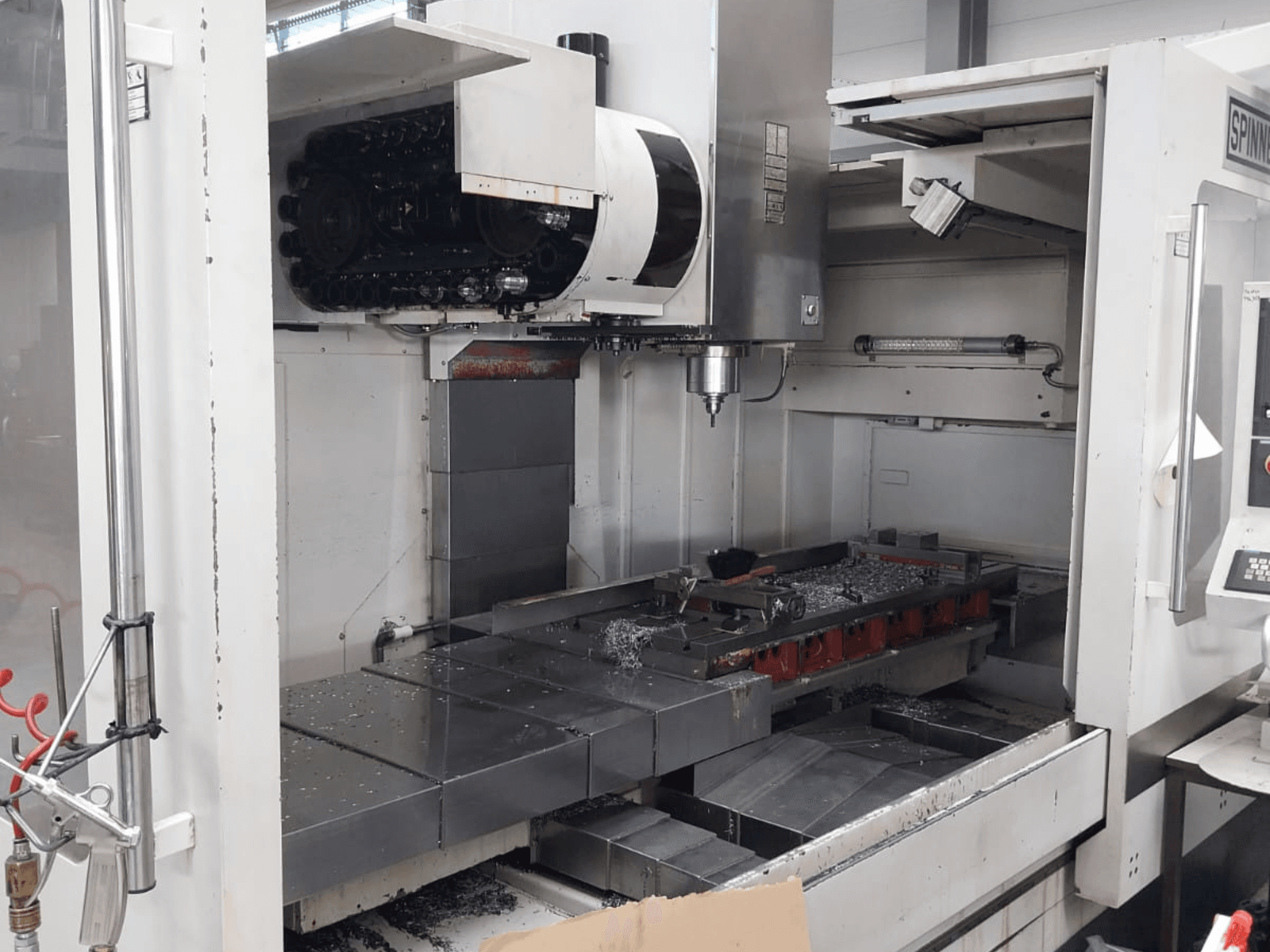

This 3-axis SPINNER MVC 1600 was manufactured in 2013. It features an impressive X-axis travel of 1600 mm, Y-axis travel of 810 mm, and Z-axis travel of 700 mm. The machine includes a robust table size of 1800 x 810 mm and a maximum workpiece weight of 2000 kg. If you are looking to get high-quality machining capabilities, consider the SPINNER MVC 1600 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: SPINNER
  • year: 2013
  • MODEL: MVC 1600
  • production hours: 16981
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre

Technical Information - SPINNER MVC 1600

Dimensions

  • Machine Weight: 8000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1600 mm
  • Y-axis Travel: 810 mm
  • Z-axis Travel: 700 mm

Technical Specification

  • Spindle Power: 22 kW
  • Spindle Speed: 10000 RPM
  • Taper Size: SK 40
  • Tool Stations: 24

Additional Information

  • Rapid traverse (X/Y/Z): 18 / 18 / 15 m/min

  • Table size: 1800 × 810 mm

  • Maximum workpiece weight: 2000 kg

  • Spindle torque: 109–1052 Nm

  • Tool magazine capacity: 24 tools

  • Tool changer condition: defective

  • Supply voltage: 400 V

  • Power supply: 3 / PE

  • Frequency: 50 / 60 Hz

  • Rated current (IB): 58 A

  • Nominal current (IN): 63 A

  • Hours: 16,981 h

Additional equipment

  • Optional 4th axis for 10.000€

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
