- Euma Spinner CAMS 200 Vertical Machining Center

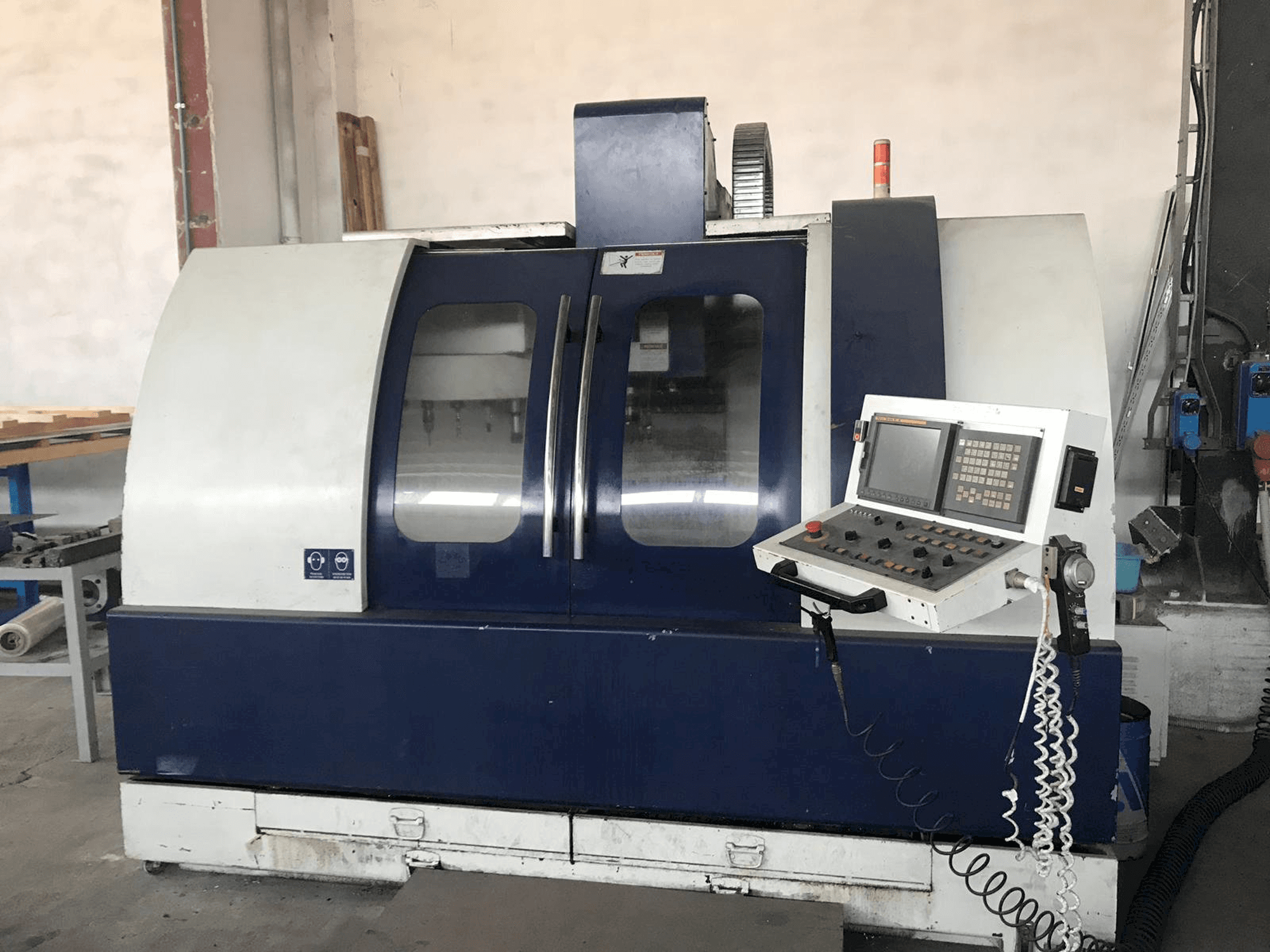

This SPINNER CAMS 200 Vertical Machining Center was built in 2008. This strong and reliable machine incorporates a spindle speed up to 8000 rpm.
Overview
- brand: SPINNER
- year: 2008
- MODEL: CAMS 200
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- availability: Sold
Technical Information - SPINNER CAMS 200
General Data
- Measurements width: 2900 mm
- Measurements depth: 2400 mm
- Measurements height: 2200 mm
- Machine weight: 6000 kg
Main drive
- Spindle speed range: 80-8000 1/MIN
- Spindle motor power: 15 kW
Movement
- X-AXIS Movement: 810 mm
- Y-AXIS Movement: 610 mm
- Z-AXIS Movement: 610 mm
Table
- Outer length: 18 mm
- Outer width: 125 mm
- Distance between: 650 mm
- Table load: 750 kg
Tools
- Max weight: 7 kg
- Max tool length: 300 mm
- Type of tool holder: BT40
Media
- Power consumption: 25 kVA
- Air pressure: 6 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
