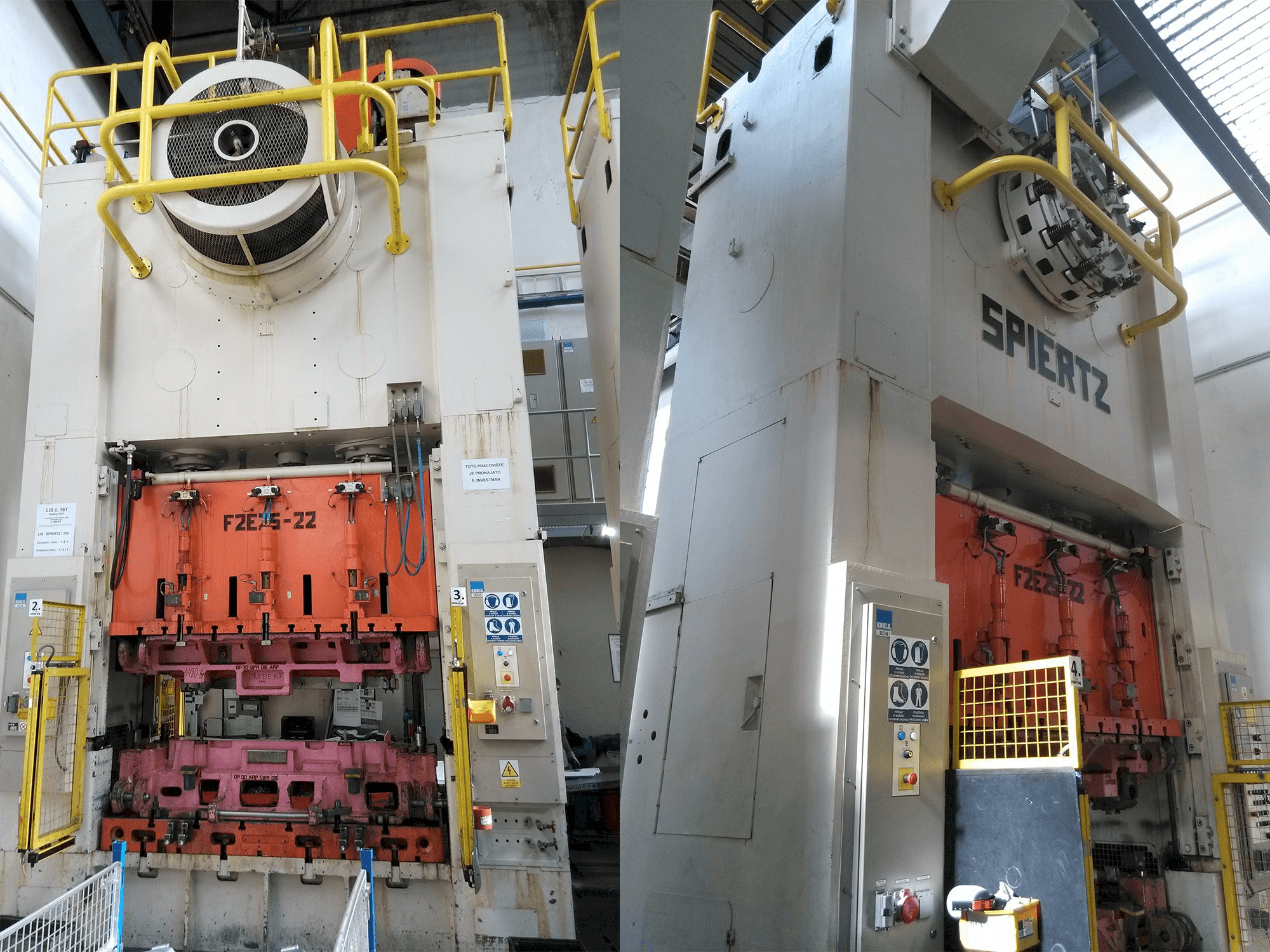

Spiertz F2E 25x2.2 Stamping Machine

Show in original language

This Spiertz F2E 25x2.2 Stamping Machine from France was built in 1982 and completely overhauled in 2001. Equipped with a SIEMENS SIMATIC OP7 Control unit, this machine can operate with a stamping force of 2500 kN.

Overview

brand: Spiertz
year: 1982
MODEL: F2E 25x2.2
application type: Stamping
Location: Czech Republic
machine type: Mechanical Stamping Press
control unit brand: SIEMENS

Technical Information - Spiertz F2E 25x2.2

Control Unit

Control Brand: SIEMENS
Control Model: Simatic OP7

Dimensions

Machine Depth: 3350 mm
Machine Height: 8650 mm
Machine Weight: 64000 kg
Table Length: 2200 mm
Table Width: 1200 mm

Technical Specification

Max. Stroke: 460 mm
Stamping Force: 2500 Kn

Additional Information

Machine Benefits

Qualitative Machine Benefits

Press completely overhauled in 2001 (new control system, electrical, mechanical parts)

Technical Machine Benefits

Ram slide adjustment 300 mm
Ram size 2200 x 1200 mm
Ram strokes per minute 15/30
Cushion drawing 210 mm
Cushion force 420 kn
Max. Tool weight on ram/table 4100/12000 kg
Optical safety guards
Main motor power 75 kw

Machine History

Industries

Automotive

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
