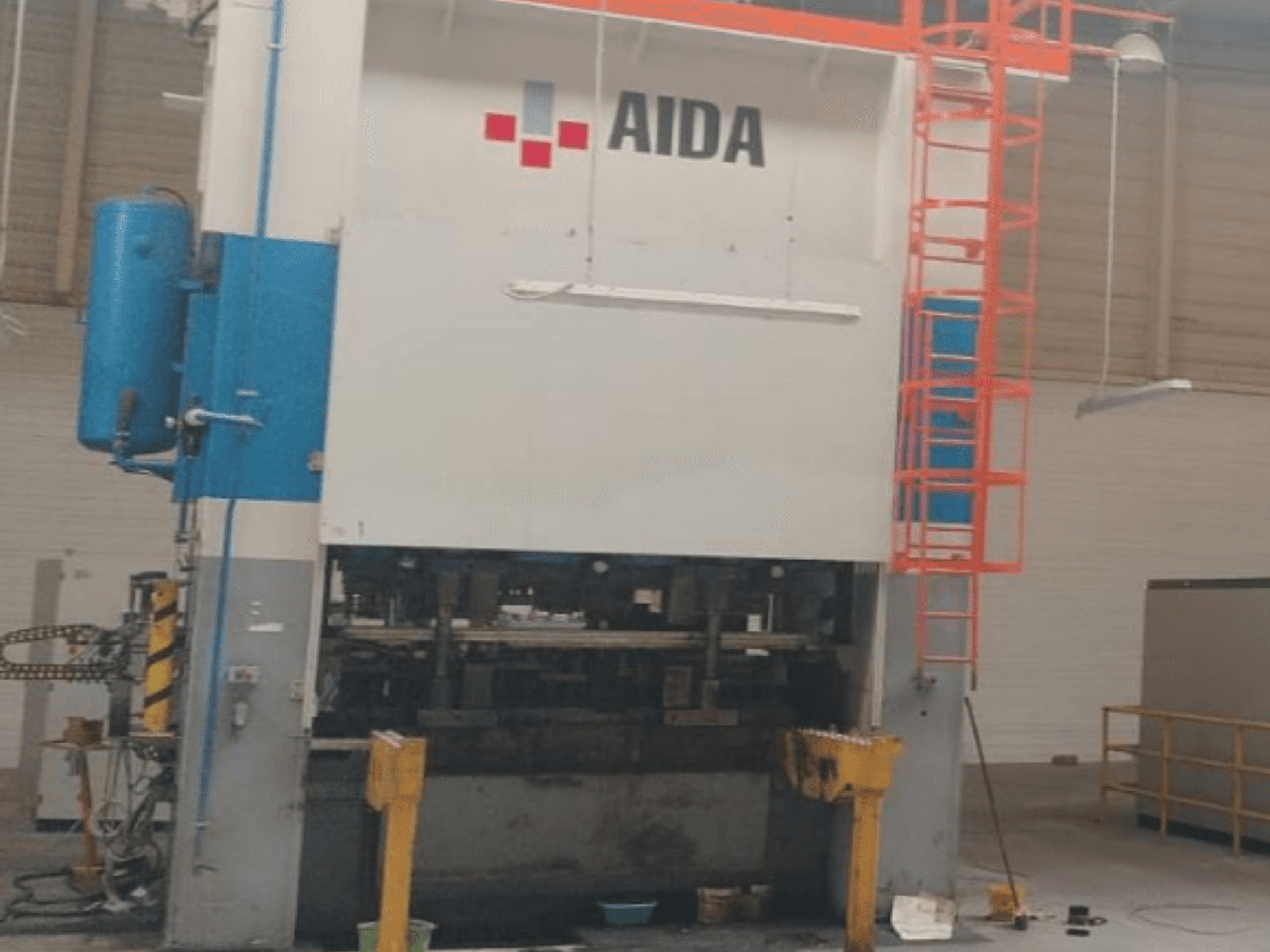

Mechanical stamping press manufactured in 2016. This AIDA 315/2MR/LD/TE3 features a press capacity of 315 tons and a stroke length of 250 mm. It includes a maximum die size of 2,250 × 750 mm and a maximum die weight on slide of 10,200 kg. If you are looking to get high-quality stamping capabilities, consider the AIDA 315/2MR/LD/TE3 machine we have for sale. Contact us for further details.
Overview
- brand: AIDA
- year: 2016
- MODEL: 315/2MR/LD/TE3
- application type: Stamping
- Location: Spain
- machine type: Mechanical Stamping Press
Technical Information - AIDA 315/2MR/LD/TE3
Dimensions
- Machine Weight: 58000 kg
Technical Specification
- Max. Stroke: 250 mm
- Stamping Force: 3150 Kn
Additional Information
Main technical data:
Press capacity: 315 ton
Rated press force: 3,150 kN
Rated capacity point: 12.7 mm above BDC
Normal crankshaft stop position: TDC
Stroke length: 250 mm
Slide adjustment: 160 mm
Shut height: 700 mm
Slide speed: 15–40 strokes/min
Maximum flywheel speed: 628.5 rpm
Maximum clutch engagements: 24/min
Stopping time: 0.386 s
Safety distance: 618 mm
Die and working area:
Maximum die size: 2,250 × 750 mm
Maximum die weight on slide: 10,200 kg
Machine structure:
Frame design: double upright (straight-side) frame
Drive system: double connecting rod (double pitman)
Slide guidance: guided slide
Motion type: mechanical crank press
Slide movement: vertical reciprocating motion
Main axis movement: rotary crankshaft drive
Ram/slide adjustment: motorized
Cushion system:
Type: integrated drawing cushion
Maximum cushion force: 3,450 daN at 0.6 MPa
Auxiliary systems:
Counterbalance cylinders: yes (counterbalance force 102 kN at 6 bar)
Clutch & brake system: pneumatic
Lubrication system: centralized automatic lubrication
Safety system: integrated
Operator protection: included
Automation ready: yes
Performance and safety highlights:
High-rigidity double-upright frame construction
Double-pitman drive for improved slide parallelism and load distribution
Pneumatic clutch-brake for reliable operation and fast stopping
Integrated safety and operator protection systems
Designed for integration with automatic feeding and transfer systems
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
