AIDA - 315/2MR/LD/TE 3 ES-STA-AID-2018-00001

Rs. 16,287,098
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

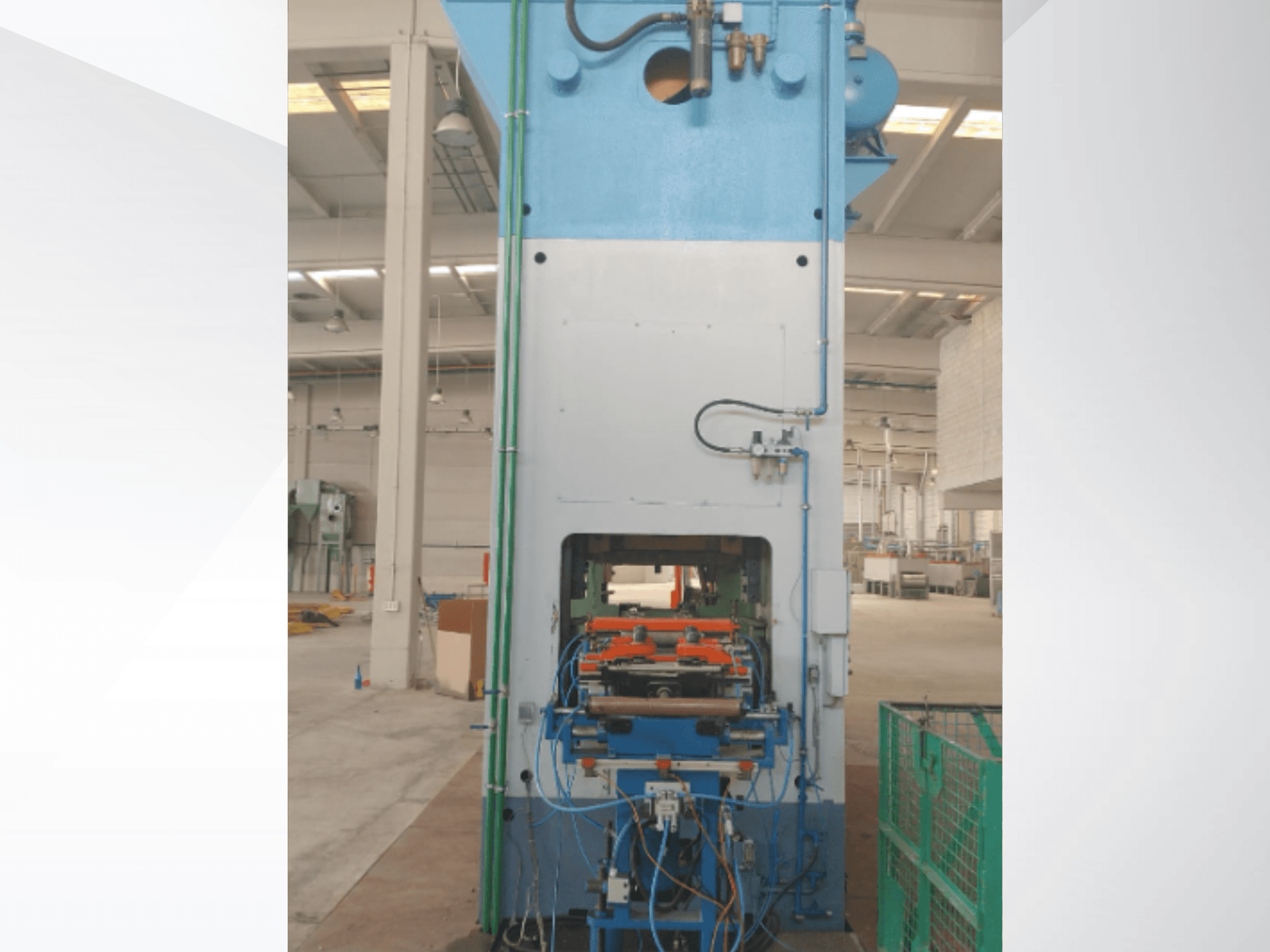

Mechanical stamping press manufactured in 2018. This AIDA 315/2MR/LD/TE 3 features a press capacity of 315 tons and a stroke length of 250 mm. It has a maximum die size of 2,250 × 750 mm and can accommodate a maximum die weight of 10,200 kg. If you are looking to get high-quality stamping capabilities, consider the AIDA 315/2MR/LD/TE 3 machine we have for sale. Contact us for further details regarding this machine.

Overview

  • brand: AIDA
  • year: 2018
  • MODEL: 315/2MR/LD/TE 3
  • application type: Stamping
  • Location: Spain
  • machine type: Mechanical Stamping Press

Technical Information - AIDA 315/2MR/LD/TE 3

Dimensions

  • Machine Weight: 58000 kg

Technical Specification

  • Max. Stroke: 250 mm
  • Stamping Force: 3150 Kn

Additional Information

  • Press capacity: 315 ton

  • Rated capacity: 3,150 kN

  • Rated capacity point: 12.7 mm above BDC

  • Stroke length: 250 mm

  • Slide adjustment: 160 mm

  • Shut height: 700 mm

  • Maximum die size: 2,250 × 750 mm

  • Maximum die weight: 10,200 kg

  • Flywheel speed: 628.5 rpm

  • Operating speed: 15–40 spm

  • Maximum clutch engagements: 24 per min

  • Stopping time: 0.386 s

  • Safety distance: 618 mm

  • Cushion force: 3,450 daN @ 0.6 MPa

  • Counterbalance force: 102 kN @ 6 bar

  • Frame type: Double upright, double-crank

  • Clutch/brake system: Pneumatic

  • Lubrication system: Centralized automatic

  • Slide guiding: Precision guided

  • Drawing cushion: Integrated

  • Counterbalance cylinders: Yes

  • Safety system: Integrated

  • Operator protection: Yes

  • Automation ready: Yes

  • Drawing cushion: Integrated (Included)

  • Counterbalance cylinders: Yes (Included)

  • Safety system: Integrated (Included)

  • Operator protection: Yes (Included)

  • Automation ready: Yes (Included)

  • Other optional equipment: Not included

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
