RAVNE PRESSES - Manzoni 160SI-STA-RAV-1992-00002

Rs. 8,427,623
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Alessandro Martini

+49 162 585 84 48

a.martini@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

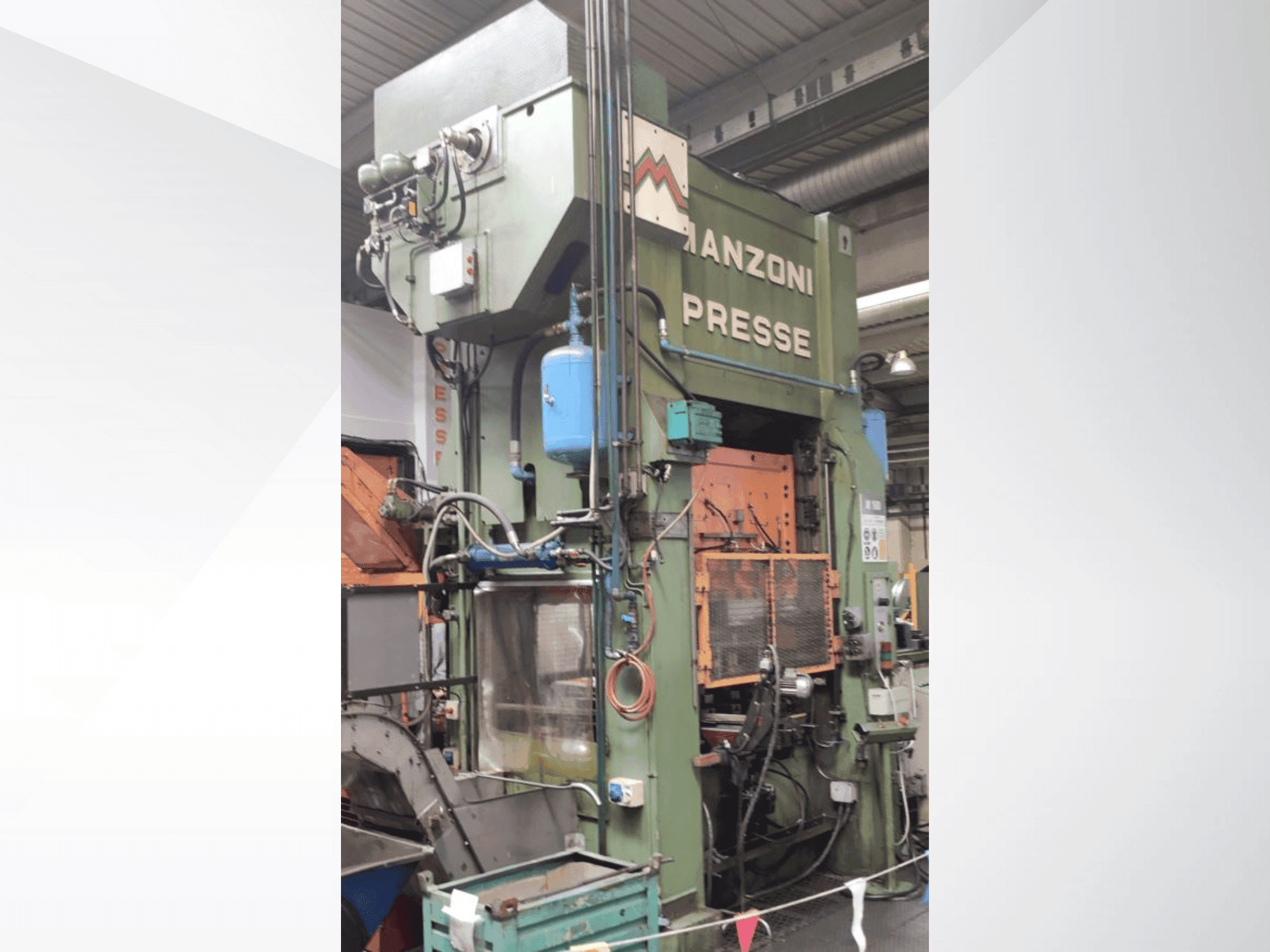

This stamping machine was manufactured in 1992. It features a robust Eccentric H-frame, monoblock design with a press force of 1600 kN and a fixed stroke of 160 mm. The machine includes a magnetic conveyor for scraps, a quick die cart system, and a millutensil oiling system.It is possible to purchase only the press or only the line/peripheral equipment, with the price split as follows: the press represents 55% of the total value and the peripheral equipment 45%. Ideal for high-quality stamping capabilities, consider the RAVNE PRESSES Manzoni 160 machine we have for sale. Contact us for more information about this machine.

Overview

  • brand: RAVNE PRESSES
  • year: 1992
  • MODEL: Manzoni 160
  • application type: Stamping
  • Location: Slovenia
  • machine type: Mechanical Stamping Press

Technical Information - RAVNE PRESSES Manzoni 160

Technical Specification

  • Max. Sheet Thickness: 4 mm
  • Max. Stroke: 160 mm
  • Pressing Force: 1600 Kn

Additional Information

Additional equipment

  • Complete press line included
  • Magnetic conveyor for scraps
  • Quick die cart system
  • Scissors for sheet cutting
  • Millutensil oiling system
  • Documentation and drawings are included

Machine Benefits

Qualitative Machine Benefits

  • Uncoiling speed: 2 - 25 m/min
  • Feeding speed: 2-96 m/min
  • The stamping line is disassembled.
  • The stamping line is disassembled.

Technical Machine Benefits

  • Stroke rate: 30 – 120 /min
  • Slide adjustment: 200 mm
  • Slide dimensions: 1250 x 1000 mm
  • Bed dimensions: 1350 x 1000 mm
  • Shut height: 400 – 600 mm
  • Side opening dimension: 800 mm
  • Front opening dimension: 1250 mm
  • Press force: 1600 kn
  • Press design: eccentric h-frame, monoblock
  • Number of pressure points: 2

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Alessandro Martini

Alessandro Martini is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
