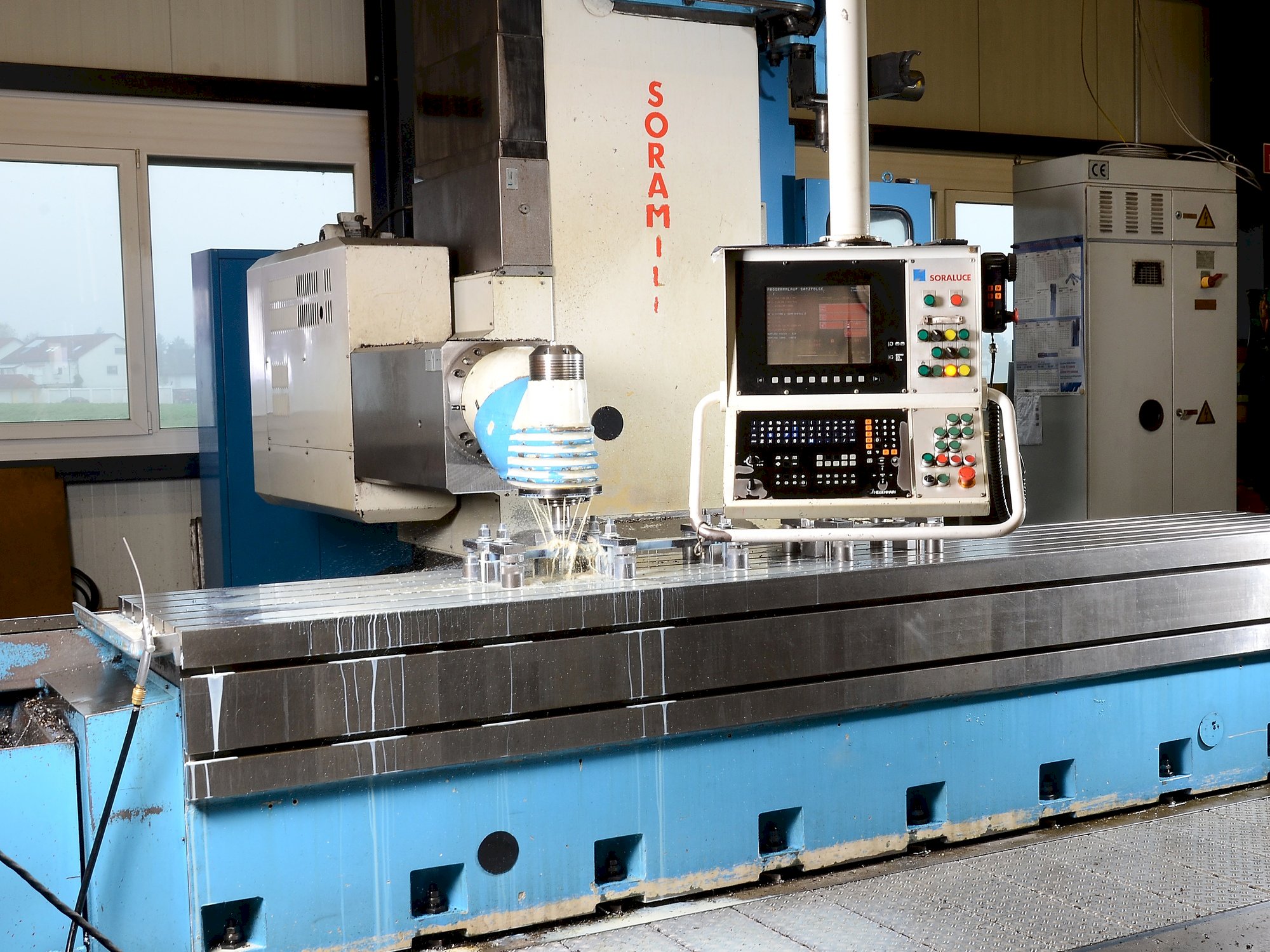

Front view of Soraluce Soramill SL 4000  machine

Soraluce Soramill SL 4000

Soraluce - Soramill SL 4000

1995

Rs. 4,145,050
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-Axis CNC milling machine, the SORALUCE Soramill SL 4000, was manufactured in 1995. Featuring a CNC-415-Heidenhain control type and ISO 40/M16 spindle holder, it offers a spacious work area with traverse paths of x 2500 mm, z 900 mm, and y 1600 mm. With 30 tool stations and a weight of approximately 14.5 tonnes, it ensures robust performance for milling and drilling tasks. Consider the opportunity to buy this SORALUCE Soramill SL 4000 milling machine. For further information, contact us.

Overview

  • brand: Soraluce
  • year: 1995
  • MODEL: Soramill SL 4000
  • application type: Milling
  • Location: Germany
  • machine type: Milling Machine
  • availability: Immediately
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-SOR-1995-00001

Technical Information

General Data

  • Measurements width: 5290 MM
  • Measurements depth: 3450 MM
  • Measurements height: 3500 MM
  • Machine weight: 14500 KG

Control Unit

  • Brand: Heidenhain
  • Model: 415
  • Interface: CNC

Main drive

  • Spindle speed range: 20-2000 1/MIN

Movement

  • X-AXIS Movement: 2500mm
  • X-AXIS Rapid traverse: 37 Nm
  • Y-AXIS Movement: 1600mm
  • Y-AXIS Rapid traverse: 18 Nm
  • Z-AXIS Movement: 900mm
  • Z-AXIS Rapid traverse: 18 Nm

Table

  • Outer length: 4000 MM

Tools

  • Slots in storage: 30

Media

  • Cooling pressure: 50
  • Ar supply: 300

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Cnc milling and drilling centre for rigid panels
      • - Spindle mount in iso 50
      • - With fixed table and traveling column, separate control cabinet
      • - Automatically switching milling head including coolant device & filter system
      • - Lowest position of spindle nose from (head horizontal) to table: 50 mm
      • - Height from floor to table: 870 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
