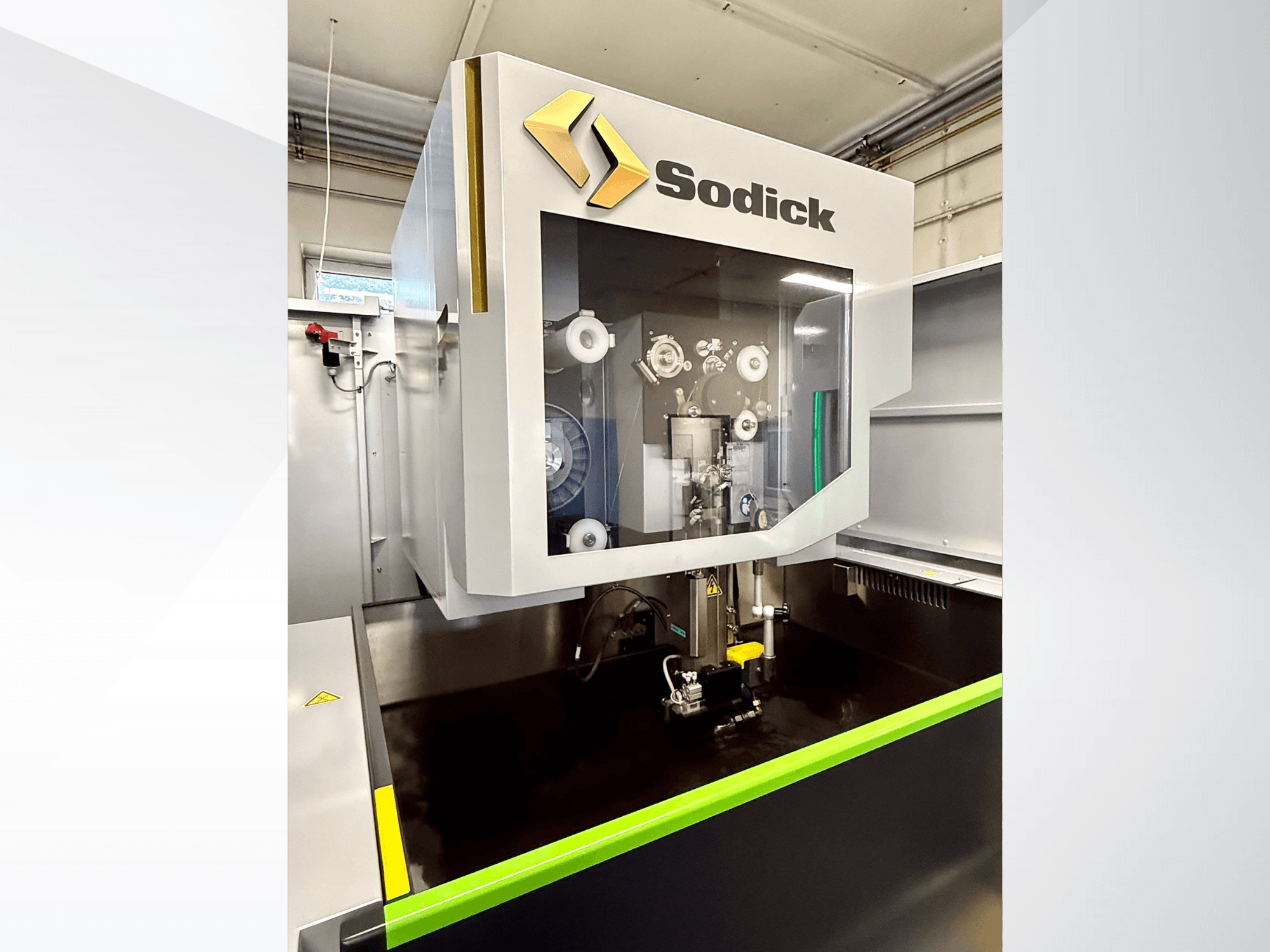

Sodick VN 600 Q

Photo Gallery

Sodick - VN 600 QDE-EDM-SOD-2024-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Sodick VN 600 Q - Wire EDM For Sale | gindumac.com

Show in original language

This 5s Sodick VN 600 Q wire edm machine was manufactured in 2024. It features a maximum workpiece weight of 1,874 lbs and advanced capabilities such as high-speed automatic wire threading and improved surface finish circuit for smoother machining. With a robust design and user-friendly software, consider the opportunity to buy this Sodick VN 600 Q wire edm machine. Contact us for further details.

Overview

brand: Sodick
year: 2023
MODEL: VN 600 Q
production hours: 1800
application type: EDM
Location: Germany
machine type: Wire EDM Machine

Technical Information - Sodick VN 600 Q

Dimensions

Machine Depth: 2605 mm
Machine Height: 2080 mm
Machine Weight: 3300 kg
Machine Width: 2620 mm

Movement

Number of Axes: 5
X-axis Travel: 600 mm
Y-axis Travel: 400 mm
Z-axis Travel: 310 mm

Technical Specification

Max. Wire Diameter: 0.3 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Hours: 1,800
U/V-axis travel: 3.54" x 3.54" (90 x 90 mm)
Wire diameter range: 0.004"–0.012" (0.10–0.30 mm)
Work tank dimensions (W x D): 40.94" x 30.71" (1040 x 780 mm)
Maximum workpiece weight: 1,874 lbs (850 kg)
Distance from floor to table: 36.61" (930 mm)
Fixed Jet High Speed Automatic Wire Threading (AWT)
Improved Surface Finish Circuit — smoother machining finish
High Speed Electrolysis-Free Power Supply
Advanced Tension Servo Control — stable wire tension control
Ceramic machine components — improved thermal stability & wear resistance
Wire Tip Disposal Unit — automatic waste handling
Z-axis automatic dielectric fluid level control
Motion controller — precision axis control system
On-board user-friendly Heart NC software
Remote hand control + mouse
USB & LAN connection ports — data transfer and networking
Energy saving circuit — reduced power consumption
Built-in voltage stabilizer — stable power input

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
