Sodick AG400L

Photo Gallery

Sodick - AG400LAT-EDM-SOD-2011-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Sodick AG400L EDM

Show in original language

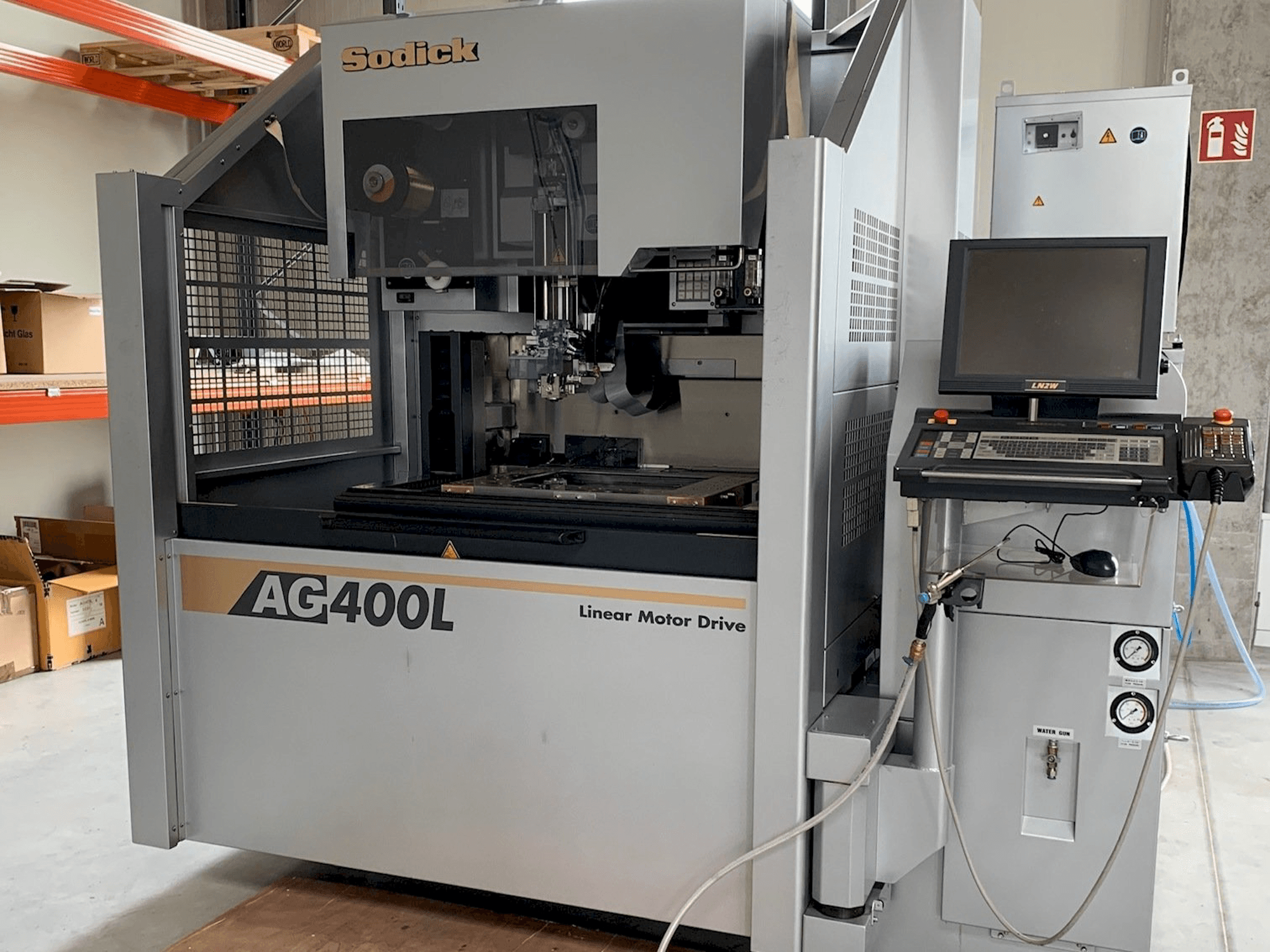

This Sodick AG400L Erosion Machine was made in 2011. It is equipped with a Sodick control unit. This machine can work with a wire diameter of 0.1m to 0.3 mm and its wire speed is of 420 mm/sec.

Overview

brand: Sodick
year: 2011
MODEL: AG400L
application type: EDM
Location: Austria
machine type: Die-Sinking EDM Machine
control unit brand: SODICK

Technical Information - Sodick AG400L

Control Unit

Control Brand: SODICK

Dimensions

Machine Depth: 2395 mm
Machine Height: 2220 mm
Machine Weight: 3950 kg

Movement

X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 250 mm

Technical Specification

Max. Wire Diameter: 1 mm
Min. Wire Diameter: 0.1 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Wire tension: 3~23 n
Working tank dimensions: 850 x 610 mm
Wire speed: 420 mm/sec
Dielectric container dimensions: 650 x 2080 mm
Dielectric container capacity: 600 l
Dielectric container capacity weight: 400 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
