- ➤ Used SMEC SL 4500 L For Sale | gindumac.com

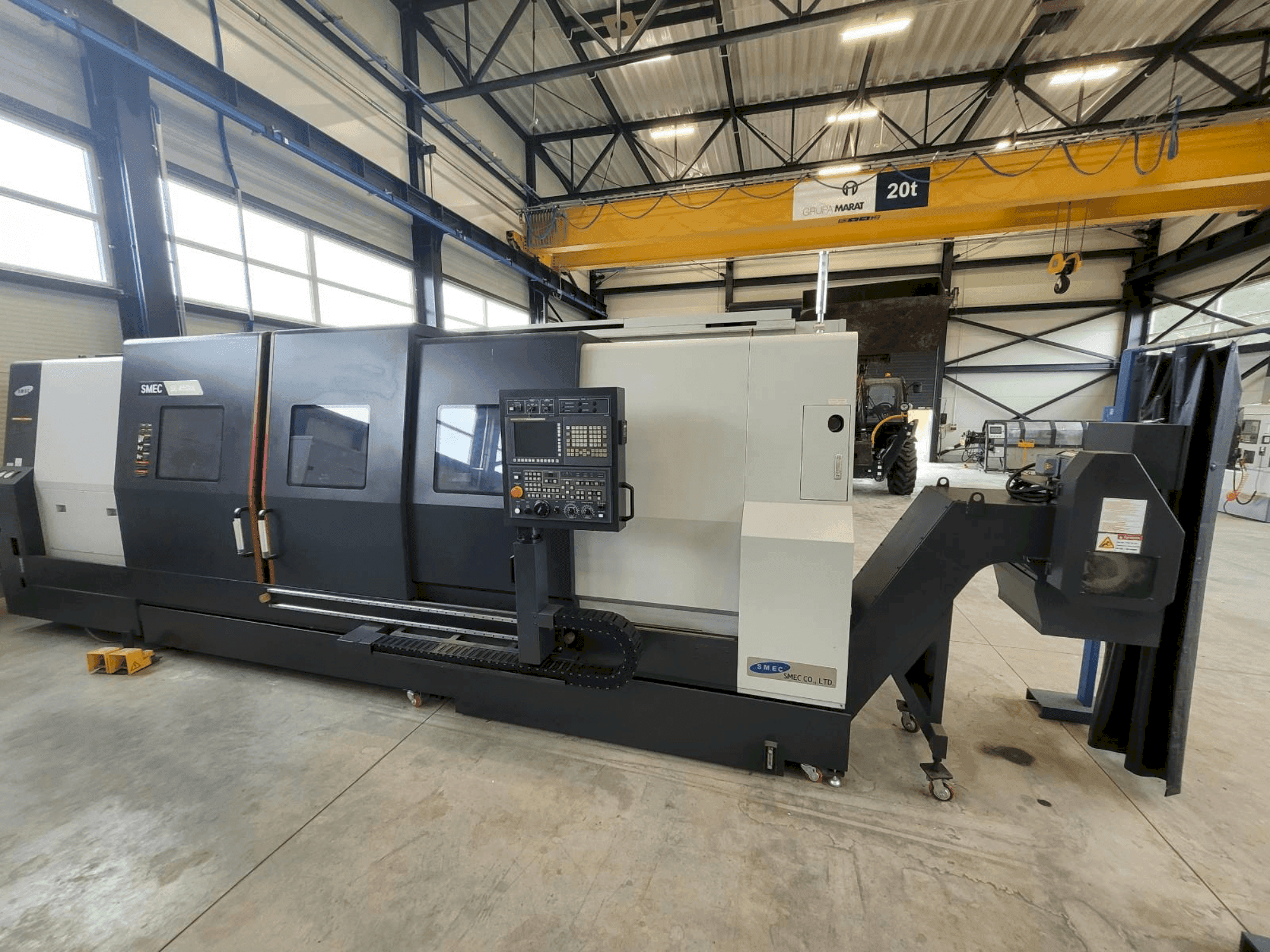

This SMEC SL 4500 L was manufactured in 2020. It features an 18" chuck, a maximum turning diameter of 690 mm, and a machining length of 3,055 mm. The spindle supports speeds up to 1,800 rpm with a motor power of 30/37 kW. It includes a 12 station turret and a tailstock with a MT5 taper. Consider the opportunity to buy this SMEC SL 4500 L horizontal turning machine. Contact us for more information about this machine.
Overview
- brand: SMEC
- year: 2020
- MODEL: SL 4500 L
- production hours: 2
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: FANUC
Technical Information - SMEC SL 4500 L
Control Unit
- Control Brand: FANUC
- Control Model: Series Oi-TF
Dimensions
- Machine Weight: 20000 kg
Movement
- Number of Axes: 2
- X-axis Travel: 350 mm
- Z-axis Travel: 3130 mm
Technical Specification
- Spindle Power: 30 kW
- Spindle Speed: 1800 RPM
Additional Information
Additional equipment
- Electric Power Supply Required: 59 / 220 kVA
Machine Benefits
Qualitative Machine Benefits
- Very good technical condition
Technical Machine Benefits
- Chuck size: 18 inches
- Max turning diameter: 690 mm
- Max machining length: 3055 mm
- Turning tool shank size: 32 mm
- Boring bar diameter: 60 mm
- Turret index time (next station swivel): 0. 20 sec
- Quill stroke: 150 mm
- Spindle nose: asa a2-11
- Draw tube id: 117. 5 mm
- Coolant tank capacity: 600 l
Extra Information
Machine still under power
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
