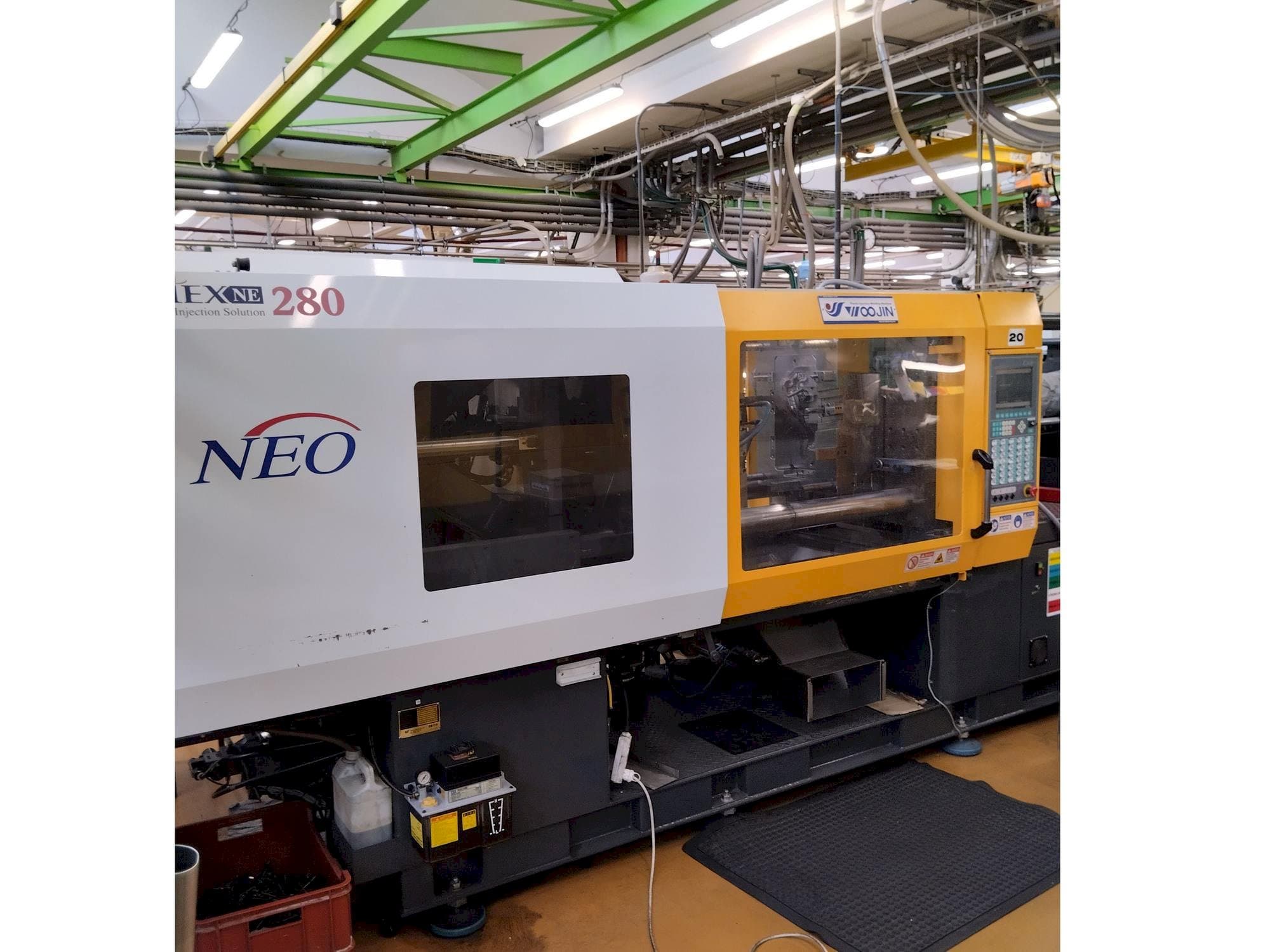

This Selex NE 280 Injection Moulding machine was manufactured in the year 2006 in Czech Republic and has 39288. It is equipped with a Selex control unit. The machine has a clamping force of 2800 kN, is in good condition and well maintained.
Overview
- brand: Selex
- year: 2006
- MODEL: NE 280
- production hours: 39288
- application type: Injection Moulding
- Location: Czech Republic
- machine type: Injection Moulding Machine
- availability: Sold
- control unit brand: Selex
- GINDUMAC ID: CZ-INJ-SEL-2006-00001
Technical Information
General Data
- Measurements width: 6700 mm
- Measurements depth: 1600 mm
- Measurements height: 2000 mm
- Machine weight: 12200 kg
Control Unit
- Brand: Selex
Injection Unit
- Screw diameter: 55 mm
- Shot weight: 605 g/PS
- Stroke volume: 665 cm³
- Injection pressure: 1940 bar
- Screw speed: 255 1/min
Clamping unit
- Clamping force: 2800 kN
- Opening stroke: 1220 mm
- Mould height min: 250 mm
- Mould height max: 650 mm
- Size of mold platens: 900x900 mm
- Ejector stroke: 170 mm
- Ejector force for / back: 53 kN
Media
- Main electronic connection: 380 V
Additional Information
- Qualitative Machine Benefits:
- - Good condition
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
