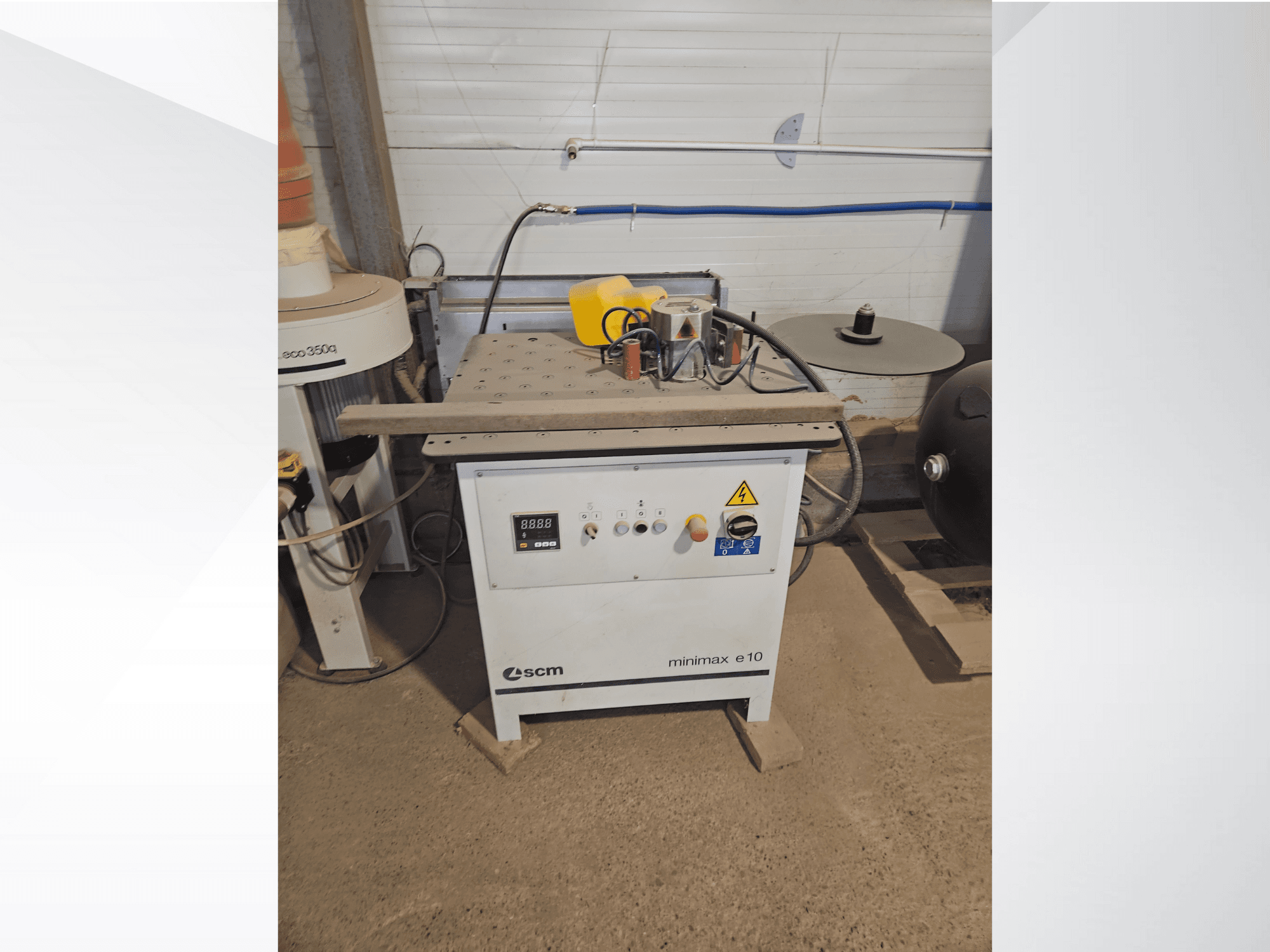

SCM - E10 RO-EDG-SCM-2019-00002

Edgebanding Thickness Capacity: 0.4 to 3 mm

Thickness of Edges with Shear Device:

(80 mm height) 0.4 to 1.5 mm

(50 mm height) 0.4 to 2.5 mm

(45 mm height) 0.4 to 3 mm

Panel Height Capacity: 8 to 80 mm

Edge Height: 10 to 83 mm

Minimum Panel Width: 50 mm

Minimum Panel Length: 210 mm

Minimum Internal Radius with 0.4 mm Edgebanding:

Concave: 25 mm

Convex: 5 mm

Feed Speeds: 4 and 8 m/min

Maximum Operating Temperature: 140 to 220 degrees C

Installed Motor Power: 35 kW

Overall Dimensions: 39.37" x 29.13" x 43.3"
