Samsung PL1600CM Lathe

Show in original language

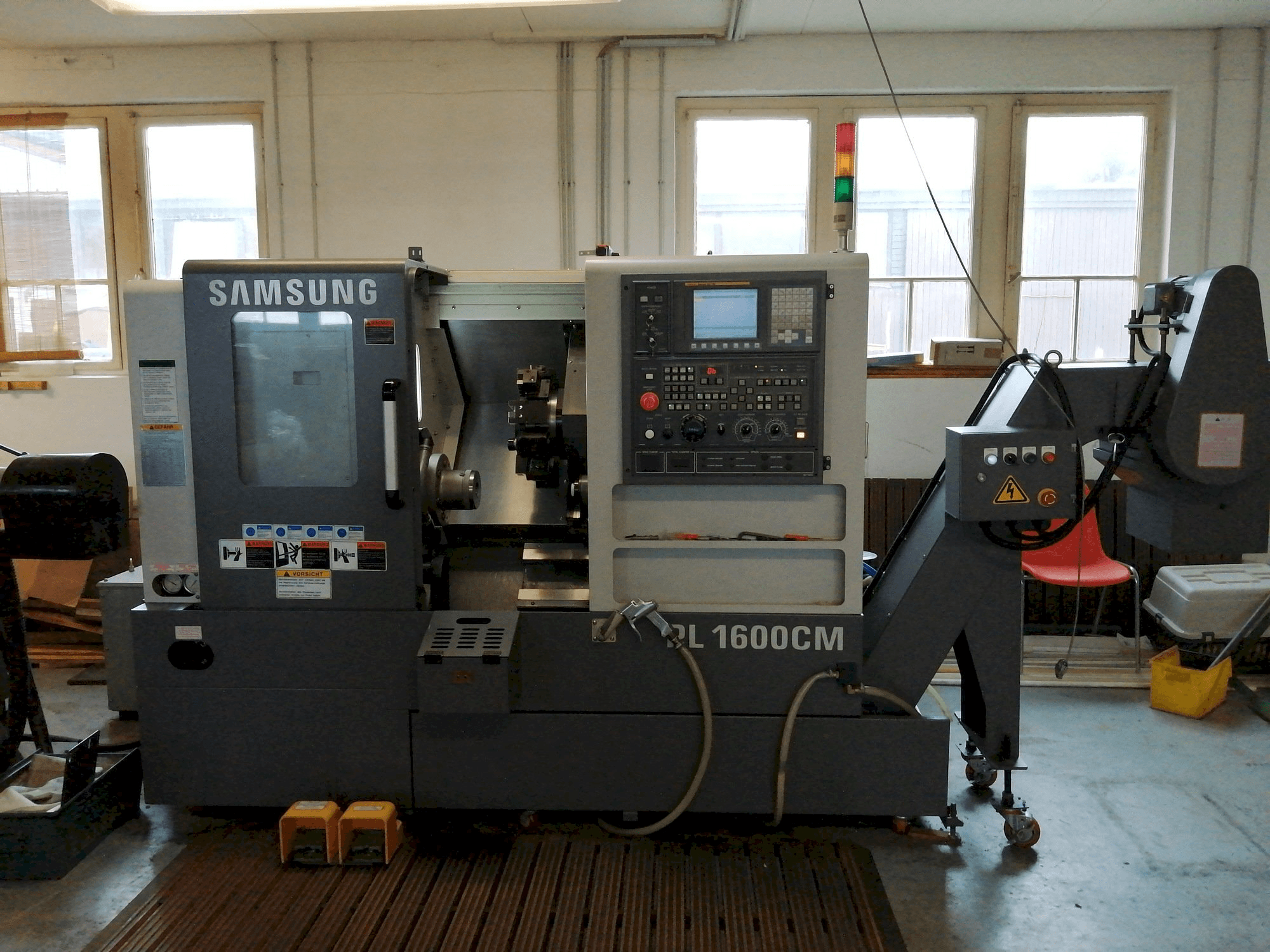

This Samsung PL1600CM Lathe was manufactured in Korea in 2013. This machine is equipped with a FANUC Series Oi TD Control unit. This lathe can work with a spindle speed up to 4000 rpm. Several additional equipment is included.

Overview

brand: Samsung
year: 2013
MODEL: PL1600CM
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine
control unit brand: FANUC

Technical Information - Samsung PL1600CM

Control Unit

Control Brand: FANUC
Control Model: Series Oi TD

Dimensions

Machine Height: 1593 mm
Machine Weight: 3350 kg

Movement

X-axis Travel: 165 mm
Z-axis Travel: 350 mm

Technical Specification

Spindle Power: 11 kW
Spindle Speed: 4000 RPM

Additional Information

Additional equipment

Bar feed LNS Hydrobar -3000 mm
Collets
3 Driven weir tools

Machine Benefits

Qualitative Machine Benefits

Coolant unit with 10 bar delivery pressure
Coolant gun
Oil skimmer with endless belt for tramp oil separation
Workspace lighting
German and english machine manuals

Technical Machine Benefits

Swing diameter over bed mm Ø 530 max
Turning diameter/turning length mm Ø 250/261. 6
Working diameter for bars mm Ø 51
Chuck size 200 mm
Spindle nose asa a2-6"
Boring bar diameter mm Ø32 ( Ø40)
Powered tools kw 2. 2/3. 7
Quill stroke (opt. ) mm (80)

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
