SAJO VBF450

Photo Gallery

SAJO - VBF450AT-MIL-SAJ-1981-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

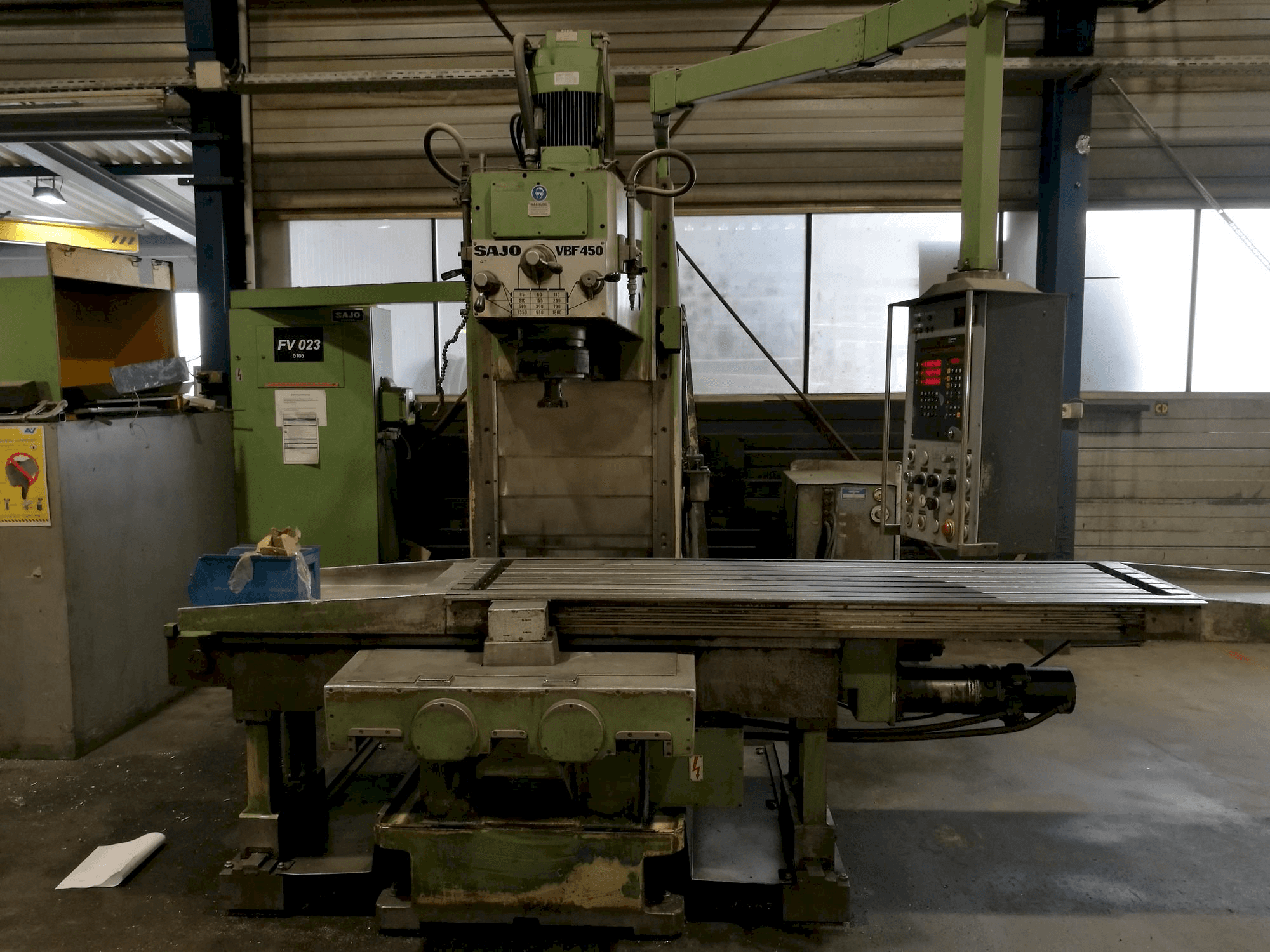

SAJO VBF450 Milling Machine

Show in original language

This SAJO VBF450 Milling Machine was made in the year 1981 in Austria and has been working for approximately 40000 hours. Equipped with a HEIDENHAIN TNC 131 Control unit, this stable machine can work with a spindle speed range of 60-1800 rpm.

Overview

brand: SAJO
year: 1981
MODEL: VBF450
production hours: 40000
application type: Milling
Location: Austria
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - SAJO VBF450

General Data

Measurements width: 5300 mm
Measurements depth: 3500 mm
Measurements height: 3100 mm
Machine weight: 7200 kg

Control Unit

Model: TNC 131
CNC main language: German
Brand: HEIDENHAIN

Main drive

Number of spindles: 1
Spindle speed range: 60-1800 1/MIN

Movement

X-AXIS Movement: 1600 mm
Y-AXIS Movement: 650 mm
Z-AXIS Movement: 500 mm

Table

Outer length: 2100 mm
Outer width: 600 mm
Number of tslots: 6 18H7
Distance between: 80 mm

Media

Main electronic connection: 380 V
Power consumption: 29 kVA

Additional Information

Machine history

Material type: Steel
Industries: Construction

Machine Benefits

Technical Machine Benefits:
- - Hydraulic feed engine

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
