➤ Used SAFAN E-Brake 100-3100 For Sale | gindumac.com

Show in original language

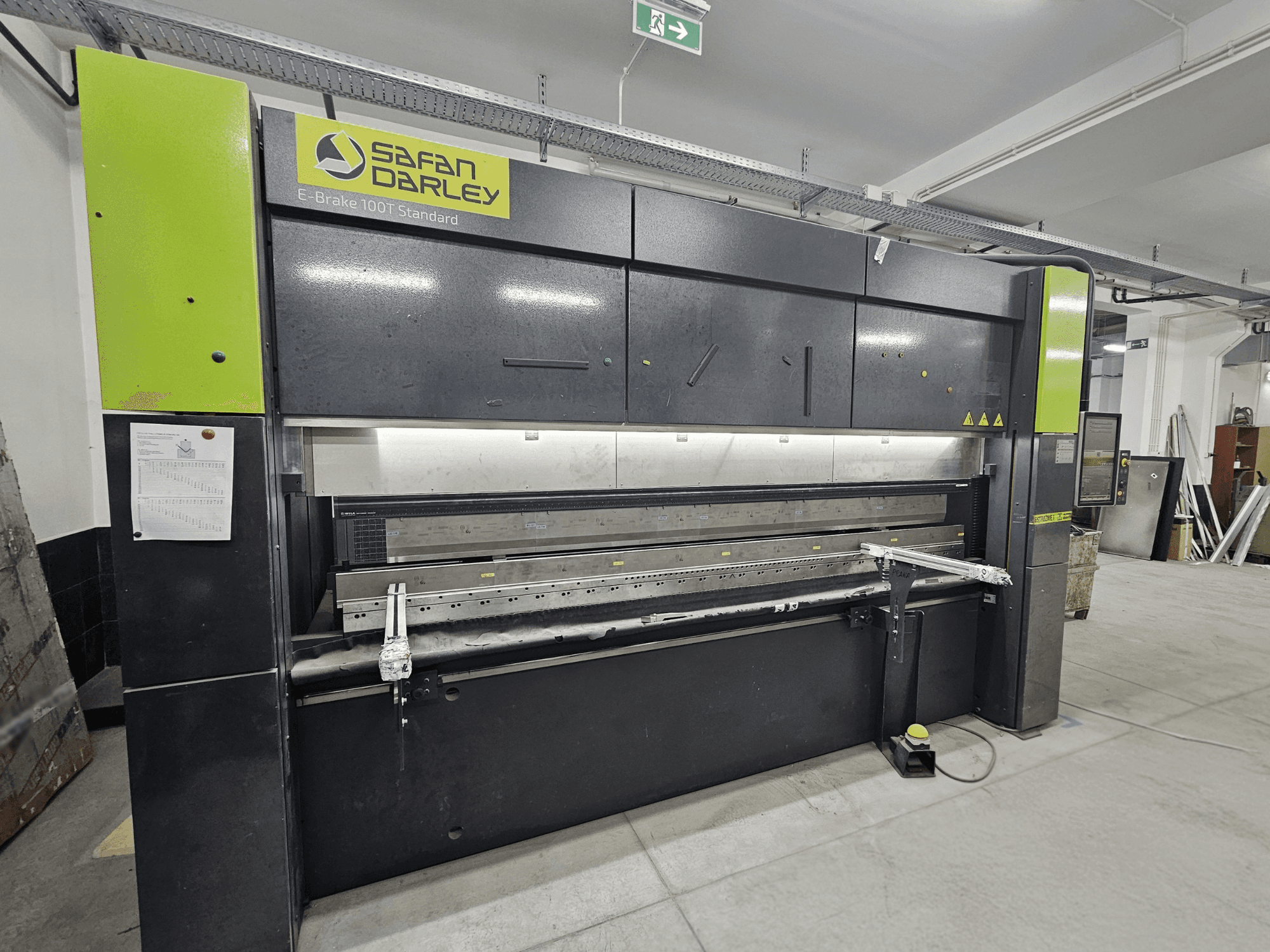

This servo-electric SAFAN E-Brake 100-3100 press brake was manufactured in 2021. It offers a pressing force of 1000 kN and a bending length of 3060 mm. The machine is equipped with a CNC-controlled backgauge with X, R, Z1, and Z2 axes. If you are looking for high-quality bending performance, consider the SAFAN E-Brake 100-3100 that we have for sale. Contact us for more information

Overview

brand: SAFAN
year: 2021
MODEL: E-Brake 100-3100
production hours: 1089
application type: Bending
Location: Poland
machine type: Press Brake

Technical Information - SAFAN E-Brake 100-3100

Dimensions

Machine Depth: 2140 mm
Machine Height: 2810 mm
Machine Length: 4175 mm
Machine Weight: 6400 kg

Movement

Number of Axes: 6
X-axis Travel: 600 mm
Y-axis Travel: 300 mm

Technical Specification

Bending Length: 3060 mm
Max. Stroke: 300 mm
Pressing Force: 1000 Kn

Additional Information

Throat depth: 590 mm
Control system: CNC – EC 20
Upper beam stop time: < 92 ms
Safety distance (light curtain): ≥ 185 mm
Electrical supply: 3 × 400 V / 50–60 Hz / N / PE
Connected load: Max. 11 kW

Additional equipment

Tools visible in the photos are not included but can be sold with the machine for an additional fee.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
