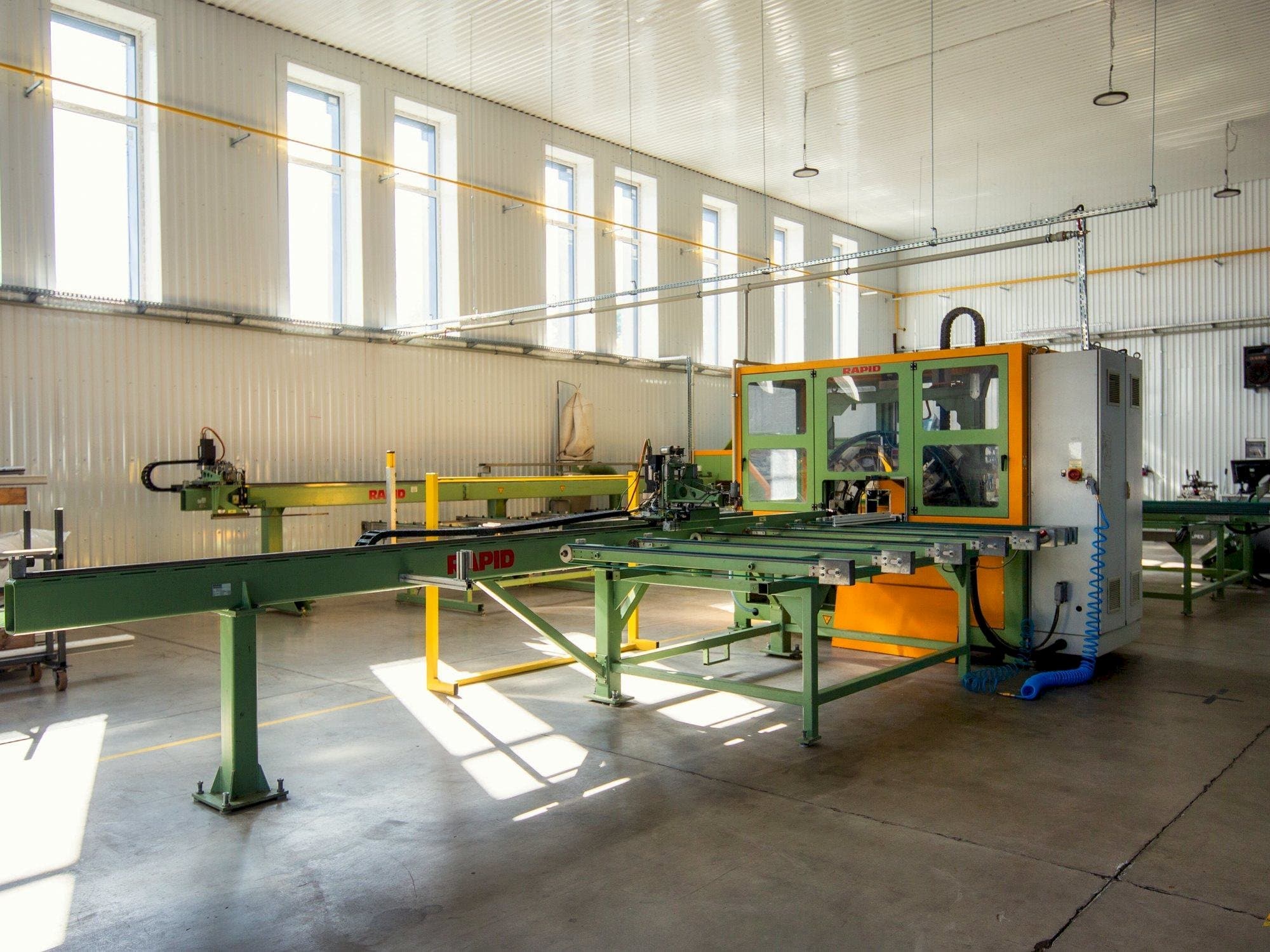

RAPID MFC EVOLUTION II

Machine Benefits

• Technical Machine Benefits:
  • - Milling cutter motor capacity: 0. 5 kw, milling cutter motor frequency: 300 hz, milling cutter motor speed max. : 18000 min⁻¹, milling cutter motor collet ø max. : 8 mm
  • - Drilling motor capacity: 0. 75 kw , drilling motor speed max. : 1500 min⁻¹ ,drilling motor collet ø max. : 16 mm
  • - Electric operating voltage: 400 v, 50 hz required mains connection voltage: 20 kw
  • - Switch cabinet working height: 1050 mm , switch cabinet connection: lockable master switch
  • - Cable connections: 400v npe
  • - Pneumatic working pressure (manufacturer) min/max: 6 - 7 , bar maintenance pressure consumption per cycle approx. : 3500 ni
  • - Load limit of the pneumatic pipes at 70° c: approx. 15 bar
  • - Max. Profile measurement length: 3500 mm, max. Profile measurement width: 130 mm ,max. Profile measurement height: 120 mm
  • - Magazine length: 3600 mm ,magazine width: 2707 mm ,magazine height: 1050 mm, magazine weight: 650 kg
  • - External screw feed length: 3000 mm, external screw feed width: 1500 mm, external screw feed height: 1800 mm, external screw feed weight: 90 kg
• Qualitative Machine Benefits:
  • - Mfc evolution unfixed length: 1600 mm, mfc evolution unfixed width: 650 mm, mfc evolution unfixed height: 1400 mm , mfc evolution unfixed weight: 90 kg
  • - Off loader magazine length: 3753 mm, off loader magazine width: 2187 mm, off loader magazine height: 1078 mm, off loader magazine weight: 400 kg
  • - Transport axis length: 5882 mm, transport axis width: 1085 mm, transport axis height: 1624 mm, transport axis weight: 400 kg
  • - Screwdriver for reinforcements: with an automatic screw feeder aggregates arrangement: on a wheel, allowing for processing at various angles number of milling and drilling aggregates: 7
  • - Operation: in continuous use.
