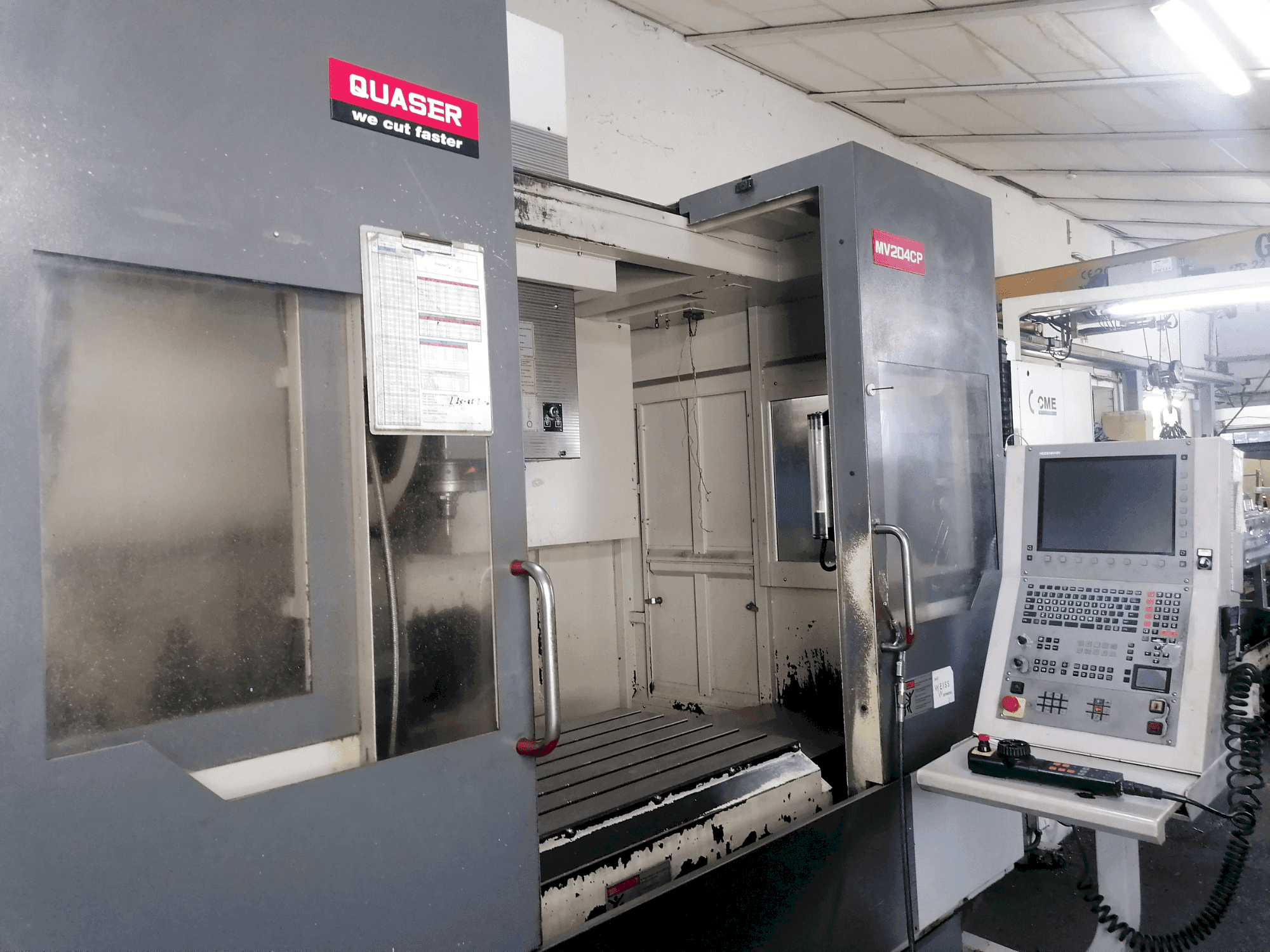

Front view of Quaser MV 204 CP  machine

Quaser - MV 204 CPPT-MIL-QUA-2008-00001

Sold

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Quaser MV 204 CP was manufactured in 2008. A robust vertical machining centre featuring a table size of 1400 x 700 mm and travels of 1270 mm in X, 700 mm in Y, and 610 mm in Z. It includes a 40 Taper spindle capable of 12,000 rpm and a 30-slot tool changer. Ideal for precise, heavy-duty machining. For more information about this machining centre, please reach out to us.

Overview

  • brand: Quaser
  • year: 2008
  • MODEL: MV 204 CP
  • application type: Milling
  • Location: Portugal
  • machine type: Vertical Machining Centre
  • availability: Sold

Technical Information - Quaser MV 204 CP

General Data

  • Measurements width: 2530 MM
  • Measurements depth: 3700 MM
  • Measurements height: 3050 mm
  • Machine weight: 10100 kg

Main drive

  • Number of spindles: 1
  • Spindle speed range: 12000 rpm 1/MIN

Movement

  • X-AXIS Movement: 1270 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 610 mm

Table

  • Outer length: 1400 mm
  • Outer width: 700 mm

Tools

  • Number of index: 30
  • Max weight: 7 kg
  • Max tool diameter: 76.2 mm
  • Max tool length: 300 mm

    Additional equipment

    • - Tool changer with a capacity of 30 tools
    • - Random tool selection feature

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - High spindle speed up to 12,000 rpm suitable for various milling operations.
        • - Large table size and extensive travel range on x, y, and z axes for handling sizable workpieces.
        • - Maximum tool specifications include a diameter of 76. 2 mm without adjacent tool, length up to 300 mm, and weight up to 7 kg, facilitating versatile tooling options.
      • Qualitative Machine Benefits:
        • - Precision machining with bbt40 spindle taper ensuring better tool stability and cutting accuracy.
        • - Efficient tool management with a 30-slot tool changer and random tool selection capability.
        • - The machine is equipped with a spindle model 40 taper, enhancing its capability for heavy-duty milling tasks.

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
