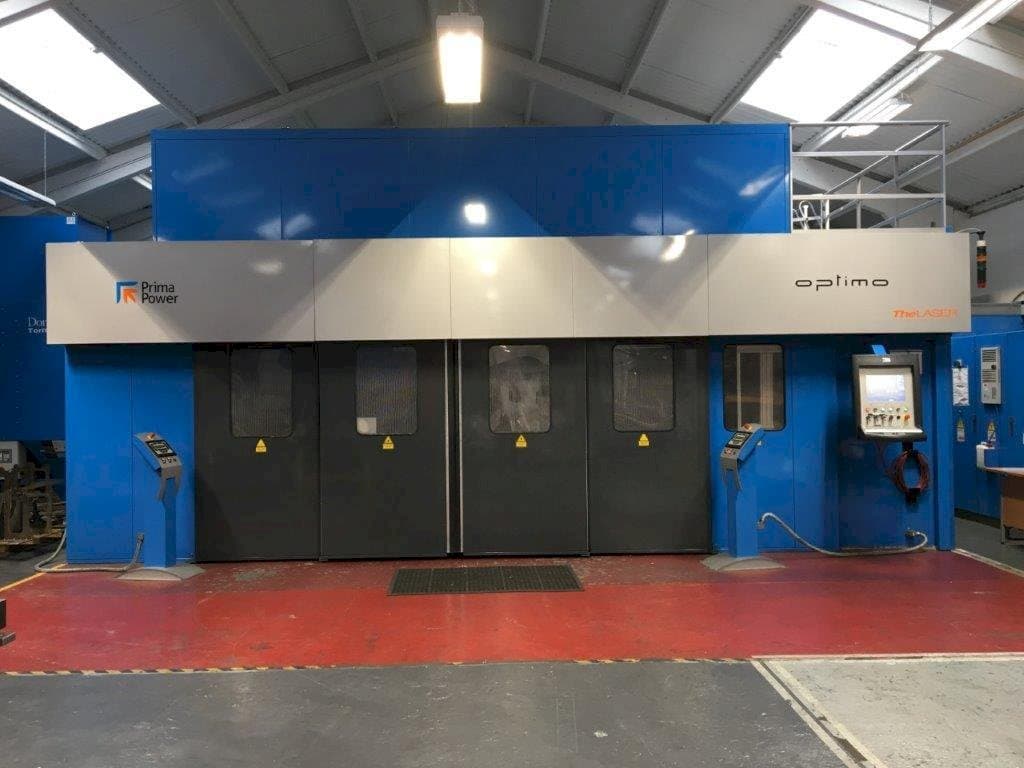

This Prima Power OPTIMO CV 4000 Laser Cutting Machine was manufactured in 2015 and has a total of only 11760 laser hours since then. With a power of 4 kW, this 3D machine can perform cutting and welding for large work pieces. Its main features include; self-calibrating, hand teach box with joy stick, 3D editor, teleservice connection, full tracking, auto square cutting head, shape storing, split cabin facility, laser piercing monitoring, plasma monitoring, focal point control and VIVIDA head (for short and very fast movements). It presents excellent conditions, as it has been given annual service. Complete documentation is available.
Overview
- brand: Prima Power
- year: 2015
- MODEL: OPTIMO CV 4000
- production hours: 11760
- application type: Laser Cutting
- Location: United Kingdom
- machine type: Laser Cutting Machines (CO2)
- availability: Sold
- GINDUMAC ID: GB-LAS-PRI-2015-00001
Technical Information
General Data
- Measurements width: 8200 mm
- Measurements depth: 5300 mm
- Measurements height: 4100 mm
- Machine weight: 24500 kg
Main drive
- Laserpower: 4 kW
- Laser type: CO2
Movement
- X-AXIS Accuracy: 0.6 mm
- Y-AXIS Accuracy: 0.6 mm
- Z-AXIS Accuracy: 0.6 mm
- A-AXIS Movement: 360º MM
- B-AXIS Movement: +/- 135 degreeº MM
- C-AXIS Movement: +/- 10 mm
- V-AXIS Movement: +/- 10 mm
Table
- Outer length: 4500 mm
- Outer width: 2500 mm
- Height adjustment: 1020 mm
Media
- Main electronic connection: 400 V
- Power consumption: 76 kVA
Additional equipment
- - Dust extractor
- - Chiller
Additional Information
- Technical Machine Benefits:
- - 2 tables
- - Speed trajectory: 85 m/min
- - Acceleration trajectory: 0. 7 g
- Qualitative Machine Benefits:
- - Full annual service
- - Documentation available
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
