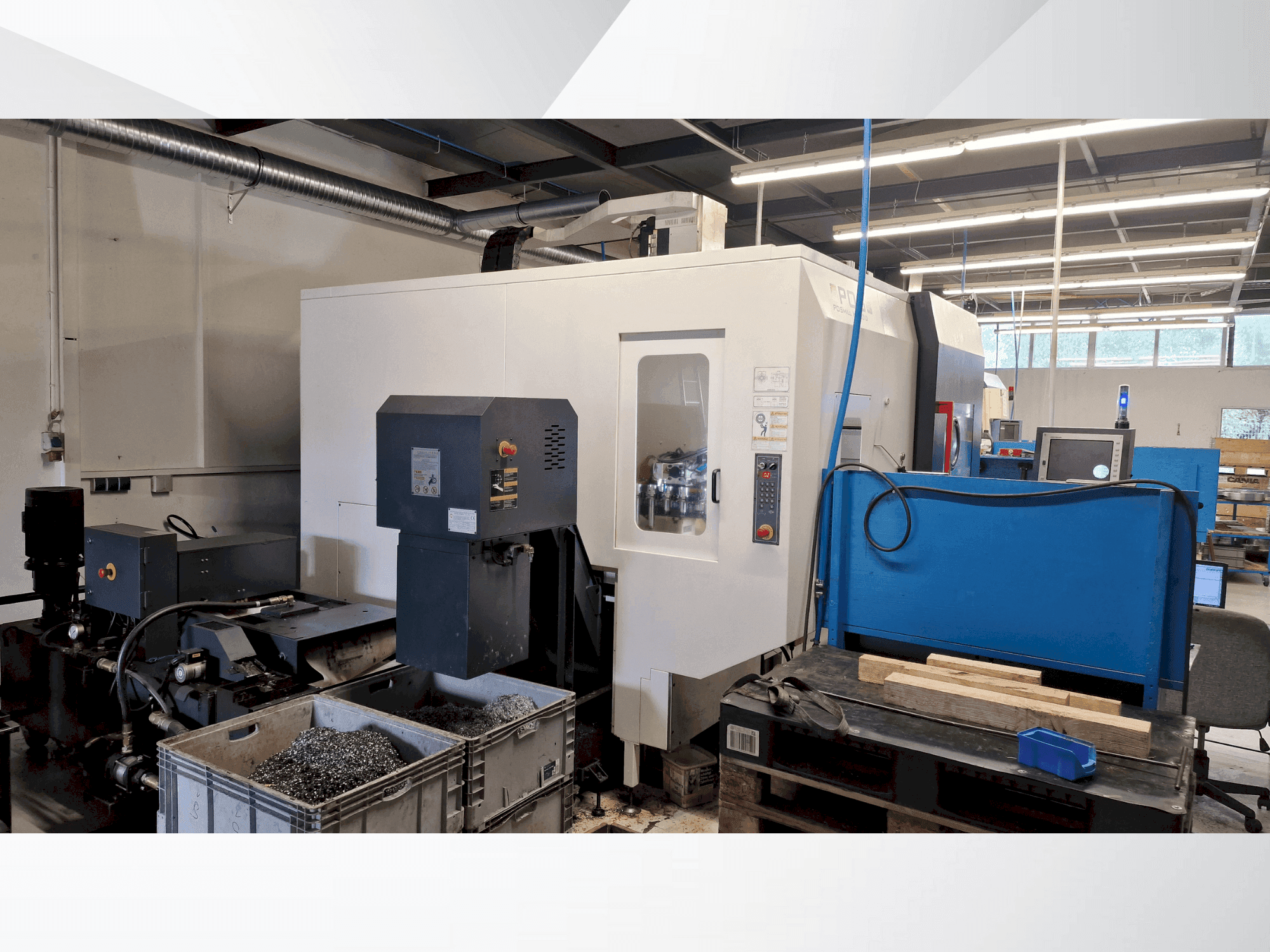

This 5-axis POSmill H 500 U was manufactured in 2018, featuring a vertical machining center with X-620, Y-820, Z-650 travel dimensions, and a 60-space workshop. It includes internal coolant supply plus air cooling and is equipped with a Heidenhain iTNC-530 control for five-axis simultaneous milling. If you are looking to get high-quality milling capabilities consider the POSmill H 500 U machine we have for sale. Contact us for more information about this machine.
Overview
- brand: POSmill
- year: 2018
- MODEL: H 500 U
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - POSmill H 500 U
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: iTNC-530
Movement
- X-axis Travel: 620 mm
- Y-axis Travel: 820 mm
- Z-axis Travel: 650 mm
Additional Information
Additional equipment
Optional chucks and approx. 260 HSK63 holders with rack
CAD-CAM Hypermill OPEN MIND license for 5-axis simultaneous milling not inckluded but for sale
Note: The Y-axis is louder than it should be. We recommend replacing the bearings for the Y-axis. However, the machine is running and is still in production.
Machine Benefits
Technical Machine Benefits
Workshop 60-space / internal cooling / internal coolant supply plus air cooling
Extra Information
Milling spindle S = 18,000 rpm, HSK-A 63 Heidenhain - Linear measuring system X, Y, Z/ Air purge for all linear measuring systems/ Active air-to-air control cabinet cooler/ Active cooling for the 4th and 5th axes, controlled Network connection + USB connection/ Spindle cooler, controlled/ Heidenhain iTNC 530 control panel, right-hand side/ Heidenhain rotation measuring system/ POS kinematic module including reference ball/ POS contour lock/ Automatically controlled crane loading hatch External hinged chip conveyor/ Coolant pump on the head via M functions Pump for chip flushing device/ Chip flushing device/ Water gun/ Operating status indicator Air at the spindle/ Electromechanical oil/coolant separator/ Automatic coolant level monitoring/ 3-way media connection in the Table center/ Hydraulic power unit including M-function control Mobile electronic handwheel/ Variants included in the special price/ Through-spindle air/ 60-station HSK-A 63 tool changer/ Internal coolant supply 20 bar with belt filter unit/ Kessler table diameter 500 mm/ Preparation for workpiece measurement/ Infrared workpiece measurement - 3D probe Tool measurement via BLUM laser/ Rotating viewing window/ POS DCM collision module
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
