Poreba - TPK 90 x 6000PL-TUR-POR-1988-00001
Do you have further questions? Contact us.
Sergi Guardia
+49 162 4027635
s.guardia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- Poreba TPK 90 x 6000 Lathe

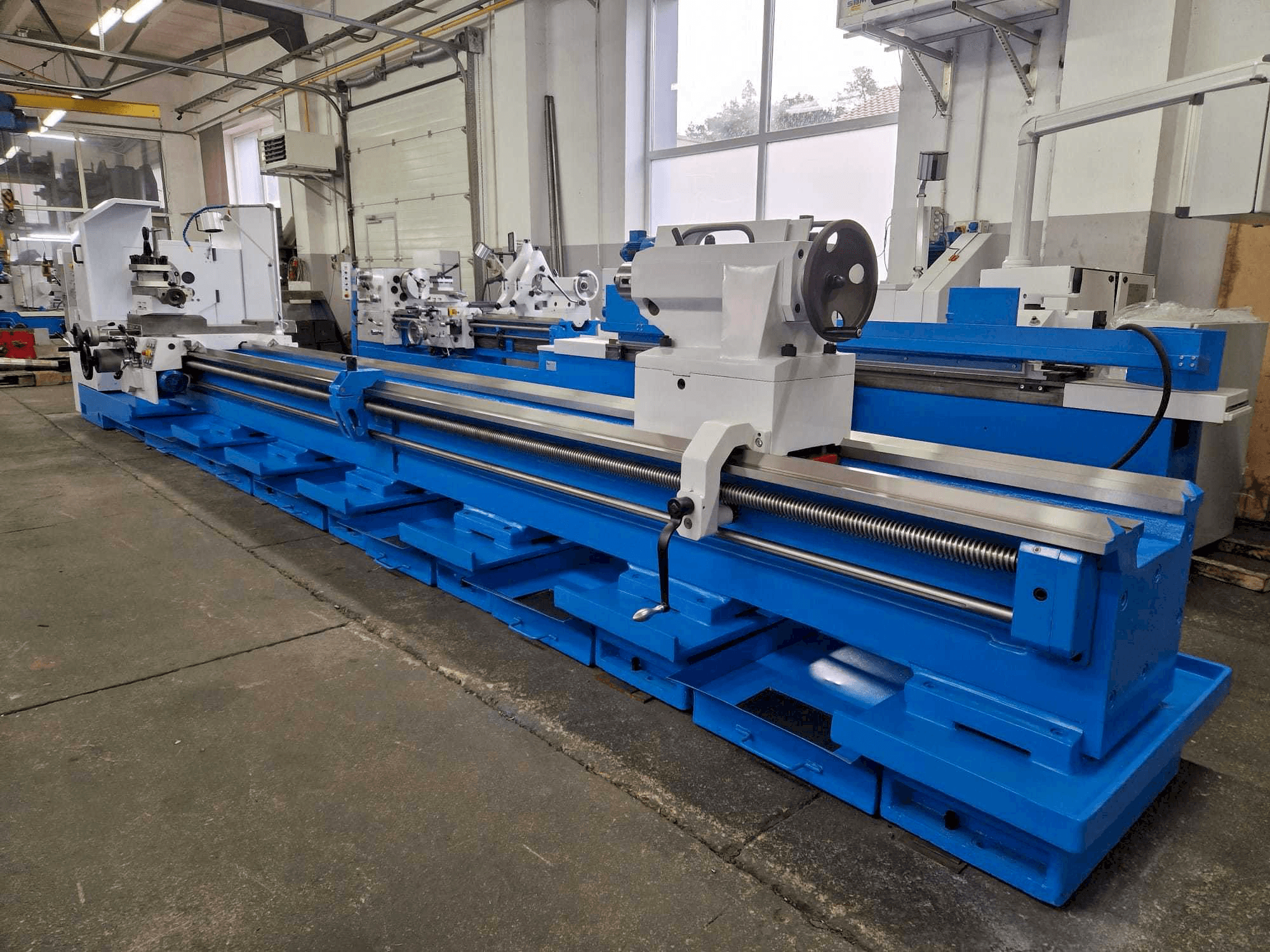

This Poreba TPK 90 x 6000 conventional Lathe was built in Poland in the year 1988 with a complete overhauled in 2023, 1 year warranty. The machine has a spindle speed of 8 - 8000 rpm, a turning length: of 6000 mm, a turning diameter over the bed of 930 mm, and a turning diameter over the support/slide of 650 mm.
Overview
- brand: Poreba
- year: 1988
- MODEL: TPK 90 x 6000
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
Technical Information - Poreba TPK 90 x 6000
Main drive
- Spindle speed range: 8 - 800 1/MIN
- Spindle motor power: 16/23 kw
Additional Information
Machine Benefits
Qualitative Machine Benefits
- General overhaul: 01/2023, incl. 12 months warranty, condition as new
- Multifix d1 or d2
- In france, popular so-called roll blinders for the lead screw or carriage cover
Technical Machine Benefits
- Basic equipment: spindle, tailstock, carriage, electrics, 4-blade holder, holder cover
- Turning length: 6000 mm
- Turning diameter over bed: 930 mm
- Turning diameter over support/slide: 650 mm
- Swing over gap: 1200 mm
- Spindle bore diameter, clearance: 95 mm
- Dro - digital read out (2 or 3 axes) with display (i am attaching the dro instructions in english)
- 3- or 4-jaw holders (diameter chosen by the customer)
- Fixed glasses, various diameters (40-400 mm, 400-600 mm), with rollers or bronzes
- Moving eyepiece (support)
Extra Information
Available only on individual order with a delivery time of 3.5 months
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
