➤ Used PENTA 433GS CNC For Sale | gindumac.com

Show in original language

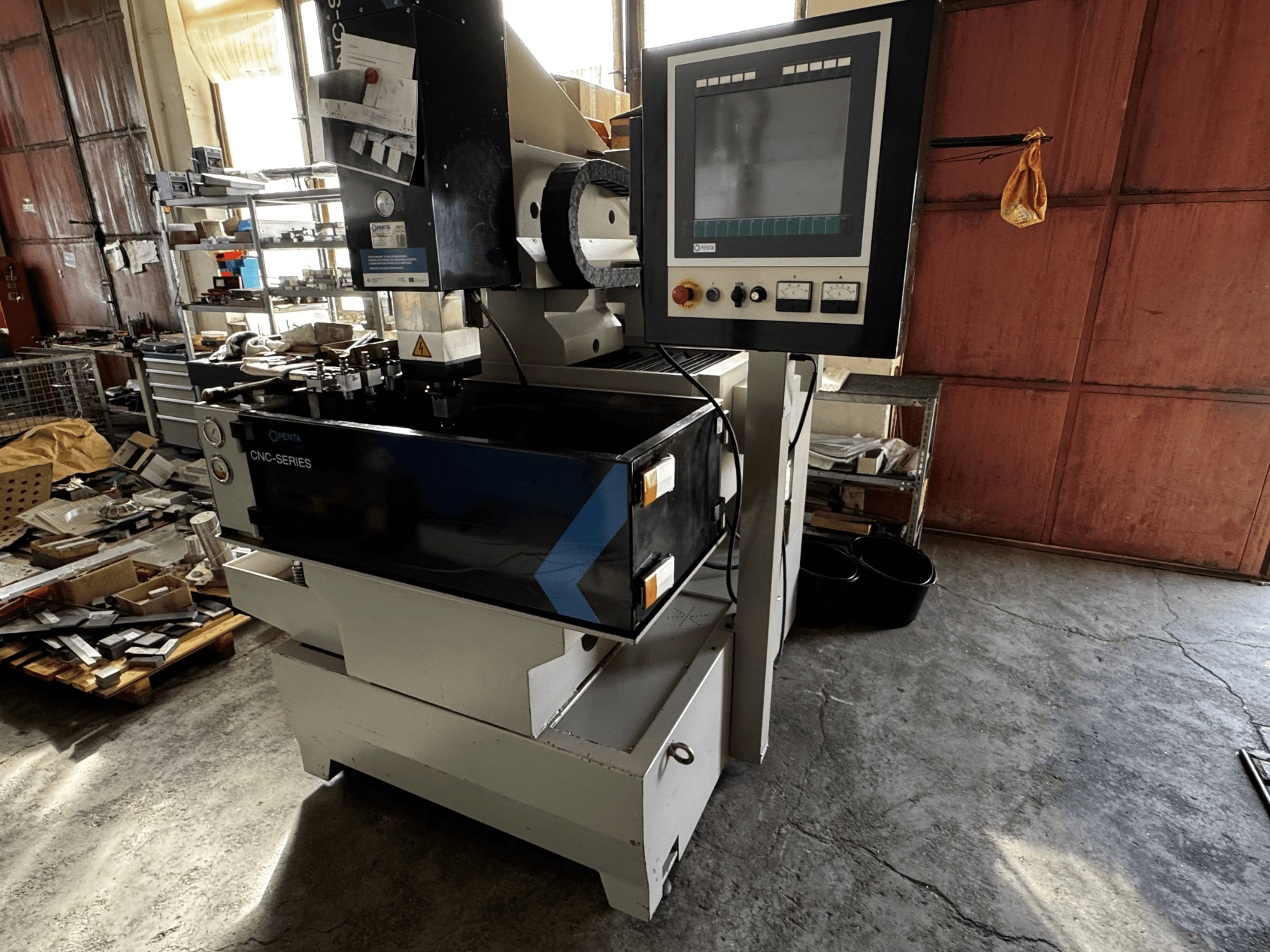

This 4-axis PENTA 433GS CNC was manufactured in 2013. It features a working area of 1000 × 550 × 320 mm and a maximum workpiece weight of 700 kg. The machine is equipped with an automatic electrode changer and a controlled rotary axis (C-axis). If you are looking to get high-quality die-sinking capabilities, consider the PENTA 433GS CNC die-sinking EDM machine we have for sale. Contact us for further details.

Overview

brand: PENTA
year: 2013
MODEL: 433GS CNC
application type: EDM
Location: Czech Republic
machine type: Die-Sinking EDM Machine

Technical Information - PENTA 433GS CNC

Dimensions

Machine Height: 2300 mm
Machine Length: 1800 mm
Machine Weight: 2100 kg
Table Width: 1700 mm

Movement

Number of Axes: 4
X-axis Travel: 400 mm
Y-axis Travel: 300 mm
Z-axis Travel: 300 mm

Additional Information

Tank working area X×Y×Z: 970×550×350 mm
Clamping table: 700 × 350 mm
Distance table–quill (min–max): 150–450 mm
Max. workpiece weight: 700 kg
Dielectric volume: 380l

Additional equipment

Automatic electrode changer 5 positions
Integrated C-axis Standard
Automatic dielectric level control
EROWA head
Filtration unit
Central lubrication
High-speed AC drives
Accessories: set of clamps

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
