Other - VH-1010IT-MIL-OTH-2007-00001

Rs. 2,531,309
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

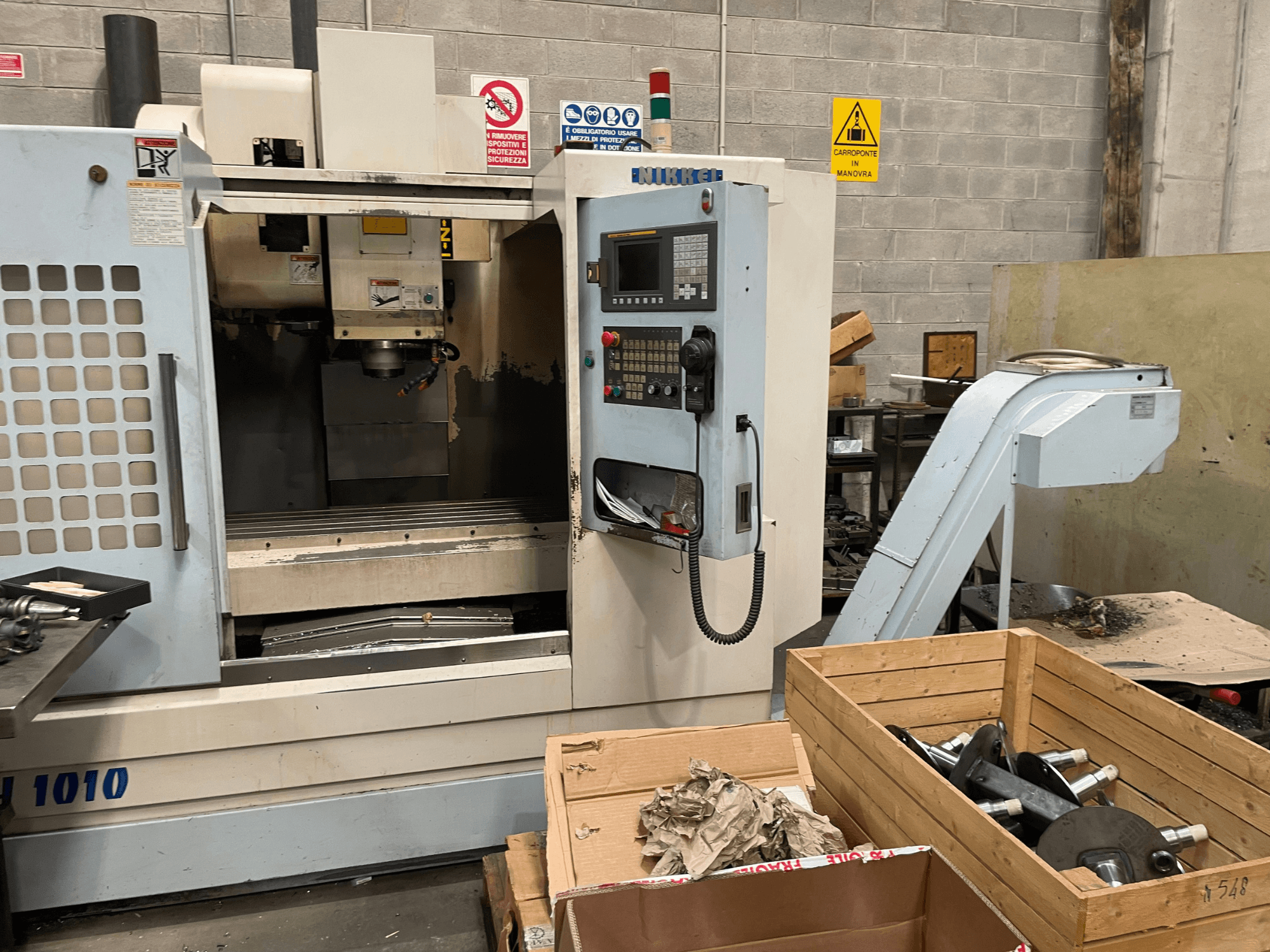

This 3-axis NIKKEI VH-1010 was manufactured in 2007. It features a table size of 1200 × 450 mm and a maximum table load of 450 kg. The machine offers impressive axis travels with an X-axis of 1010 mm, Y-axis of 500 mm, and Z-axis of 520 mm. If you are looking to get high-quality machining capabilities, consider the NIKKEI VH-1010 vertical machining centre we have for sale. Contact us for further details.

Overview

  • brand: Other
  • year: 2007
  • MODEL: VH-1010
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Other VH-1010

Dimensions

  • Machine Height: 2700 mm
  • Machine Length: 2508 mm
  • Machine Weight: 5350 kg
  • Machine Width: 2900 mm

Movement

  • Number of Axes: 3
  • X-axis Travel: 1010 mm
  • Y-axis Travel: 500 mm
  • Z-axis Travel: 520 mm

Technical Specification

  • Spindle Power: 7.5 kW
  • Spindle Speed: 8000 RPM
  • Taper Size: BT 40

Additional Information

  • Table

    • Table size: 1200 × 450 mm

    • T-slot: 5 / 75 / 18 mm

  • Distances

    • Spindle nose to table: 120 – 650 mm

    • Spindle center to Z-axis guide way: 540 mm

    • Distance from Z-axis guide way to table center: 290 – 790 mm

  • Spindle

    • Spindle diameter: Ø65 mm

  • Feed rates

    • Rapid feed (3 axes): 15000 mm/min

    • Cutting feed: 1 – 5000 mm/min

  • General

    • Packing dimensions: 2788 × 2300 × 2450 mm

  • Accuracy

    • Positioning accuracy: ±0.003 mm

    • Repeatability: 0.005 / 300 mm

  • Other

    • Air pressure: 5 kg/cm²

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Sergi Guardia

Sergi Guardia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
