OPS INGERSOLL High Speed Eagle V5

Photo Gallery

OPS INGERSOLL - High Speed Eagle V5DE-MIL-OPS-2018-00001

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used OPS INGERSOLL High Speed Eagle V5 | Machining

Show in original language

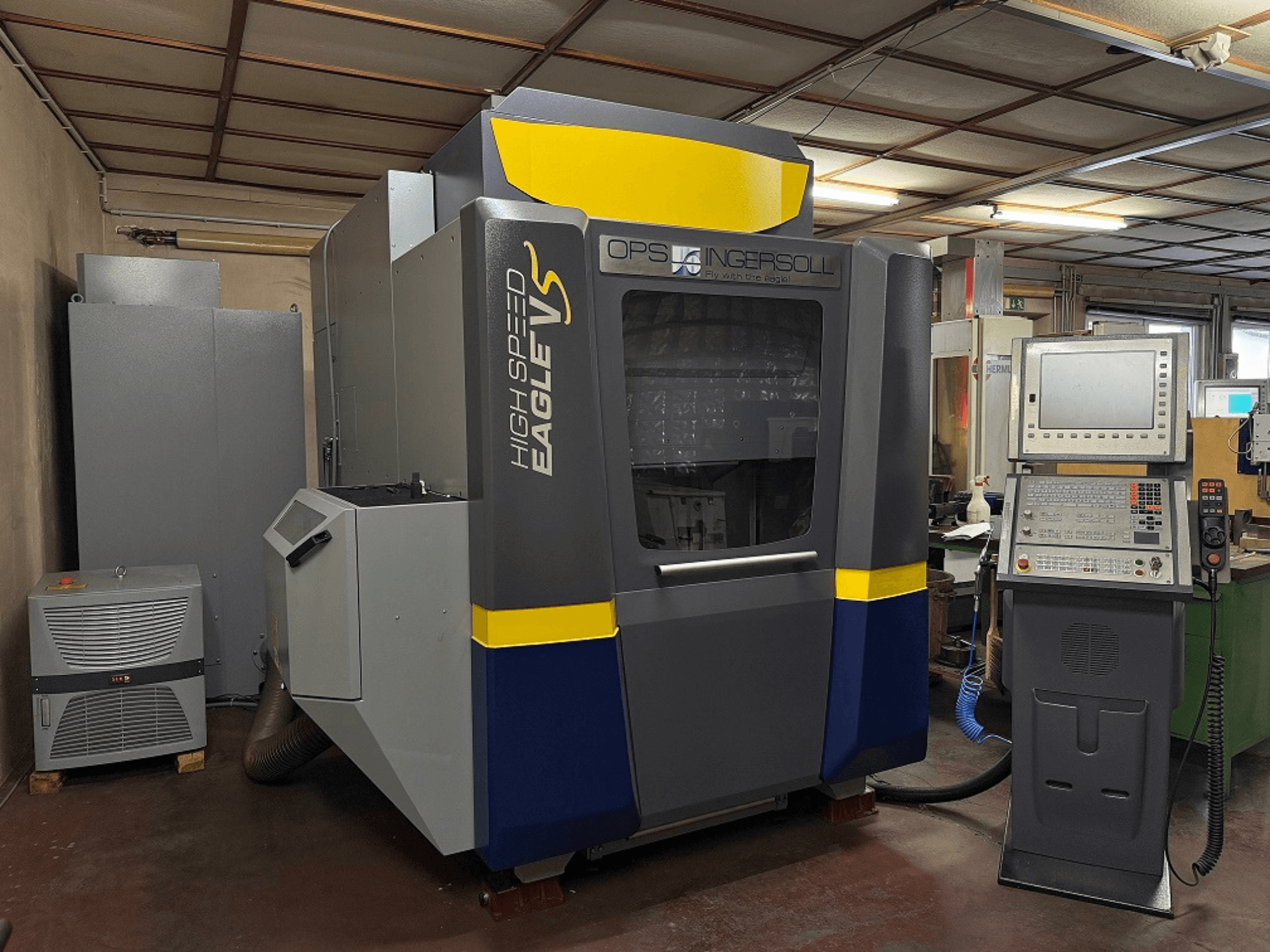

This 5-axis OPS INGERSOLL High Speed Eagle V5 was manufactured in 2018. It features a Heidenhain Control TNC 640, a high-frequency spindle with a speed range up to 42,000 rpm, and a 32-slot HSK-E40 tool changer. The machine offers a traversing speed of 30m/min and traversing paths of 550x400x400 mm. If you are looking to get high-quality milling capabilities consider the OPS INGERSOLL High Speed Eagle V5 machine we have for sale. Contact us for more information.

Overview

brand: OPS INGERSOLL
year: 2018
MODEL: High Speed Eagle V5
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HEIDENHAIN

Technical Information - OPS INGERSOLL High Speed Eagle V5

Control Unit

Control Brand: HEIDENHAIN
Control Model: iTNC640

Technical Specification

Spindle Power: 15 kW
Spindle Speed: 42000 RPM
Tool Stations: 32

Additional Information

Max. acceleration: 15 m/s²
Max. traversing speed: 30 m/min
Control cabinet ambient temperature: up to 33 °C (with heat exchanger)
Traversing paths (X/Y/Z): 550 x 400 x 400 mm
Drive system: Ball screw spindles with directly coupled AC servo motors
Measurement system: Absolute glass scales on all axes
Torque (S6 60%): 6.7 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
