➤ Used OPS INGERSOLL Gantry Eagle 500 | Die-Sinking EDM

Show in original language

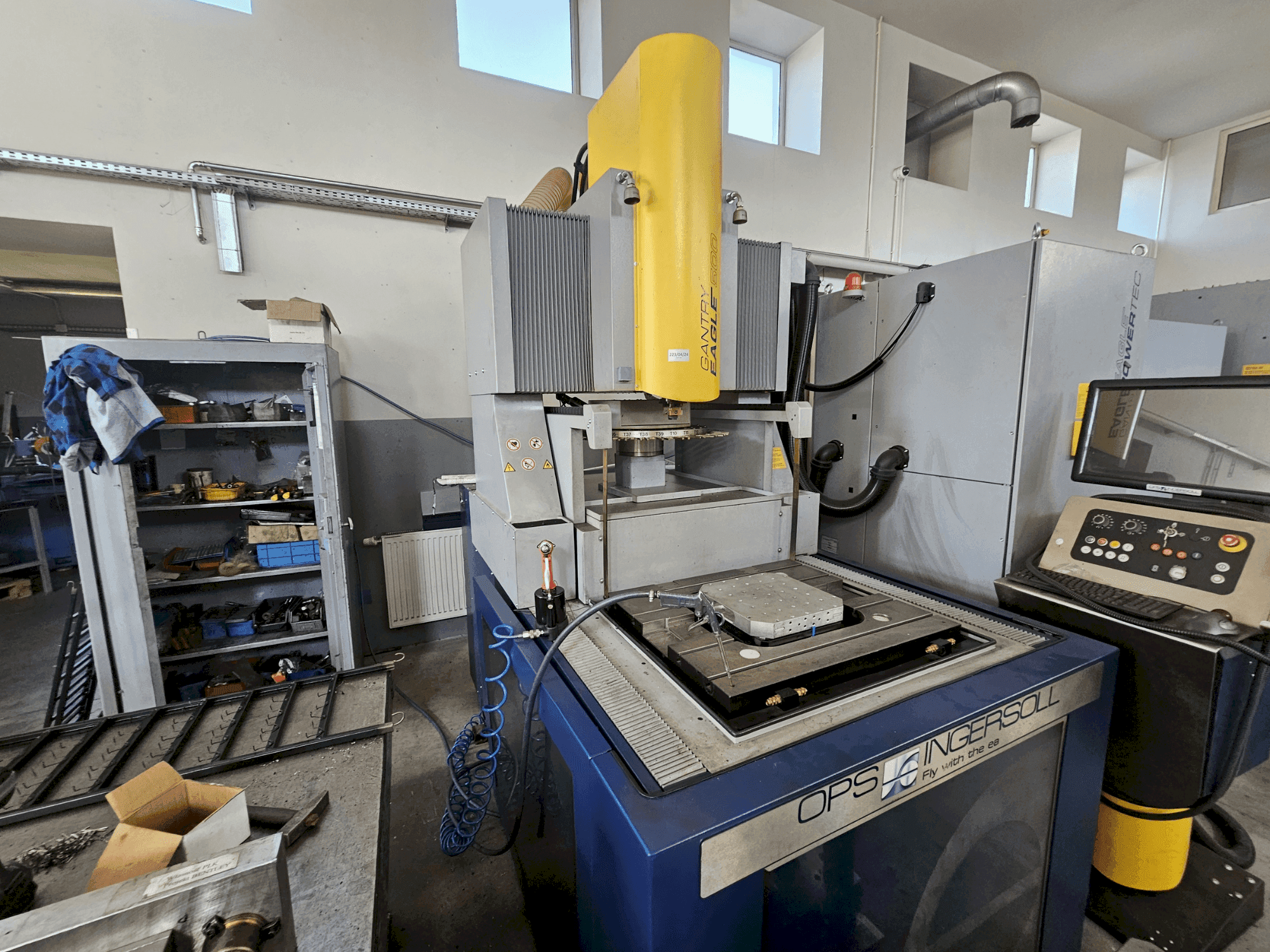

This 4-axis OPS INGERSOLL Gantry Eagle 500 was manufactured in 2017. It features a robust die-sinking EDM capability with X, Y, Z travels of 525 mm, 400 mm, and 450 mm respectively. It supports a maximum workpiece weight of 1,000 kg and includes a 20-position electrode magazine. If you are looking to get high-quality die-sinking capabilities, consider the OPS INGERSOLL Gantry Eagle 500 machine we have for sale. Contact us for more information about this machine.

Overview

brand: OPS INGERSOLL
year: 2017
MODEL: Gantry Eagle 500
application type: EDM
Location: Poland
machine type: Die-Sinking EDM Machine
control unit brand: EAGLE

Technical Information - OPS INGERSOLL Gantry Eagle 500

General Data

Machine weight: 5000 kg

Control Unit

Brand: EAGLE
Model: POWERTEC

Main drive

Number of axis: 4

Movement

X-AXIS Movement: 525 mm
Y-AXIS Movement: 400 mm
Y-AXIS Feed Force: 5000 mm/min
Z-AXIS Movement: 450 mm
Z-AXIS Feed Force: 18000 mm/min
X-AXIS Feed Force: 5000 mm/min

Workpiece

Workpiece weight: 1000 kg

Additional equipment

- Electrode magazine: Number of positions: 20
- Max electrode weight (automatic change): 15 kg
- Max total electrode weight in magazine: 60 kg

Additional Information

Machine Benefits

Technical Machine Benefits:
- - External machine dimensions: footprint with generator and console: 3196 × 2284 mm
- - Door opening to bring machine in (w × h): min 1400 × 2700 mm
- - Andron3060 cnc system
- - Z-axis acceleration: 1. 4 g
- - C-axis with erowa chuck
- - C-axis speed: 20 rpm
- - Positioning accuracy: 0. 001°
- - Tank system capacity: 400 liters

Extra information

- Workpiece Max workpiece size: 770 × 670 mm Table size: 750 × 650 mm Max tank fill level: 395 mm Clearance between electrode holder and table: min 135 mm / max 585 mm Max electrode weight (manual loading): 50 kg Max electrode weight (automatic loading): 15 kg Max electrode weight: 100 kg Other Options Included ECOTEC energy-saving function Linear scales on X and Y axes Pressure boost device from 5 to 7 bar EROWA ITS chuck (ER-007521) UPC Production Chuck pallet system (ER-016841 + ER-016650) with machine-side preparation 30-position electrode magazine – EW30 Magnetic reference sphere, Ø5 mm UPC clamping system embedded in the table
