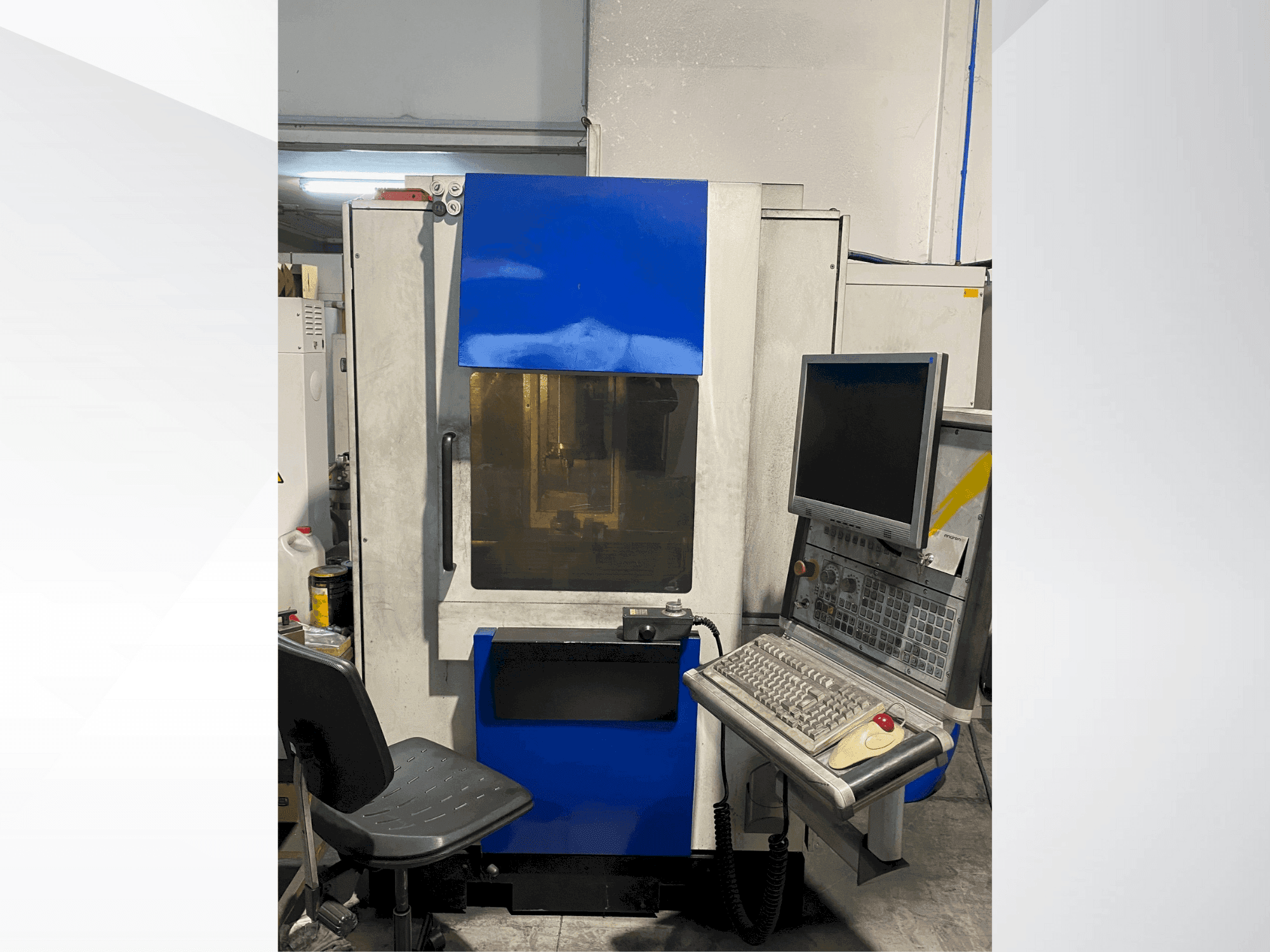

This 3-axis OPS INGERSOLL 600 vertical machining center was manufactured in 2000. It features a travel range of 635 x 365 x 345 mm, a maximum table load of 1000 kg, and a high-speed spindle ranging from 5000 to 40000 rpm. The machine includes a tool magazine with 12 slots and an Andronic 2000 control system. Consider the opportunity to buy this OPS INGERSOLL 600 vertical machining center. Contact us for more information about this machine.
Overview
- brand: OPS INGERSOLL
- year: 2000
- MODEL: 600
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - OPS INGERSOLL 600
Dimensions
- Machine Depth: 2200 mm
- Machine Height: 2200 mm
- Machine Weight: 3500 kg
- Table Length: 630 mm
- Table Load: 1000 kg
- Table Width: 500 mm
Movement
- X-axis Travel: 635 mm
- Y-axis Travel: 365 mm
- Z-axis Travel: 345 mm
Technical Specification
- Spindle Speed: 40000 RPM
Additional Information
Machine Benefits
Technical Machine Benefits
- Max. Distance from work spindle to clamping table: 470 mm
- Tool holder: hsk-e 32
- Tool magazine with 12 tool places
- The machine is completely enclosed, an extraction system is part of the machine to extract the oil mist or dust generated during hsc milling.
- Filter system manufacturer: teka
Extra Information
Machine still under power
