Okuma MX-45 VAE

Photo Gallery

Okuma - MX-45 VAEES-MIL-OKU-1998-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools

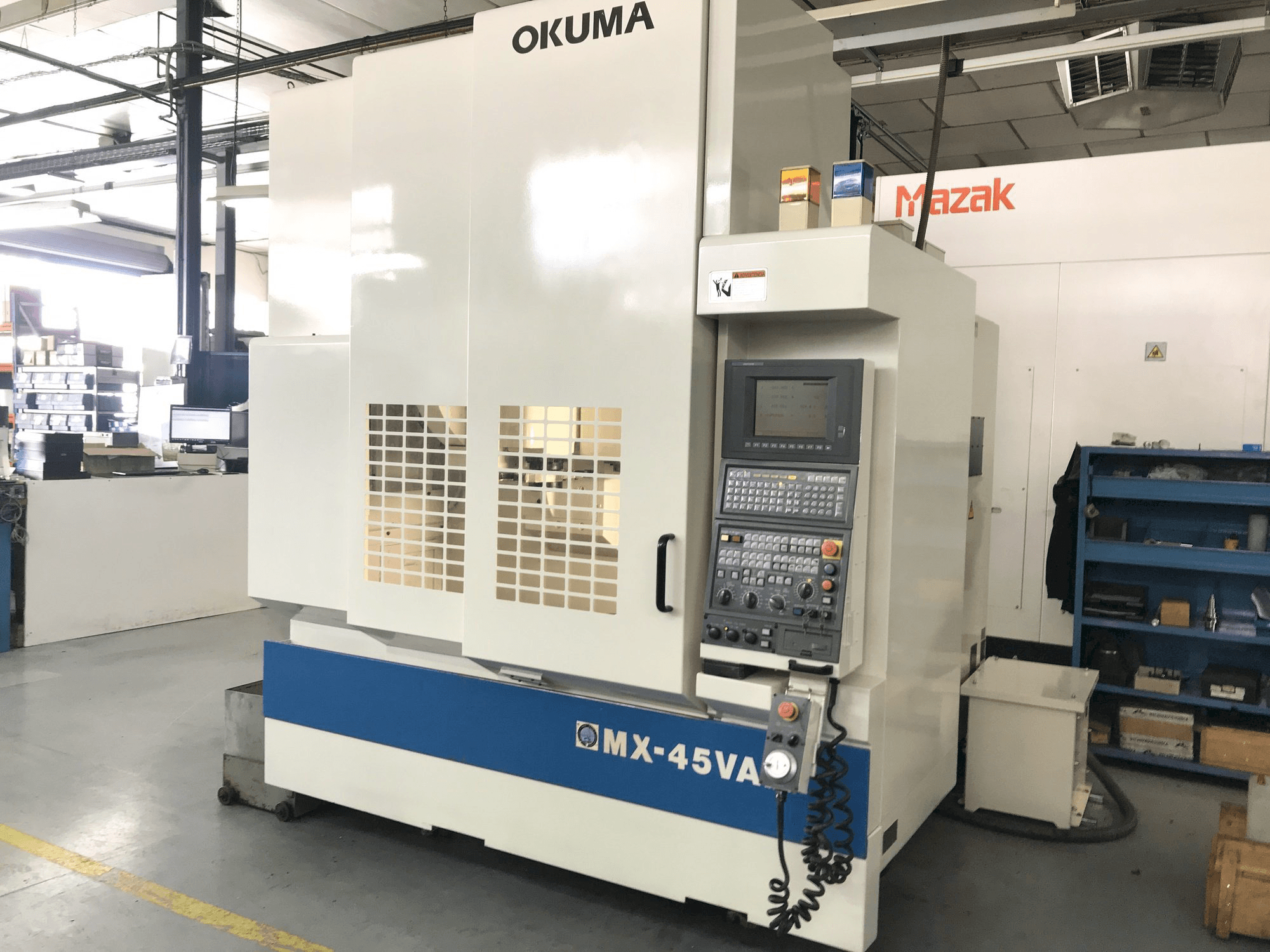

Okuma MX-45 VAE vertical machine center

Show in original language

This Okuma MX-45 VAE vertical machine center was manufactured in Japan in 1998. This 4 axis machine it is operated through an OKUMA OSP700M. This machine can work with a spindle speed up to 7000 rpm.

Overview

brand: Okuma
year: 1998
MODEL: MX-45 VAE
application type: Milling
Location: Spain
machine type: Vertical Machining Centre
control unit brand: OKUMA

Technical Information - Okuma MX-45 VAE

General Data

Measurements width: 2230 mm
Measurements depth: 2380 mm
Measurements height: 2650 mm
Machine weight: 6500 kg

Control Unit

Model: OSP-700M
Brand: OKUMA

Main drive

Spindle speed range: 70 - 7000 1/MIN
Number of axis: 4

Movement

X-AXIS Movement: 760 mm
Y-AXIS Movement: 460 mm
Z-AXIS Movement: 450 mm

Table

Outer length: 1000 mm
Outer width: 460 mm
Distance between: 480 mm
Min distance between vertical spindle and table: 160 mm
Max distance between vertical spindle and table: 610 mm
Table load: 700 kg

Tools

Max weight: 8 kg
Max tool diameter: 125 mm
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits

Main spindle vac 15/10 hp
Tool capacity 20 htas.
Cone type mas bt 40
Spindle nt 40
Spindle bearing diameter 70 mm
Infinitely variable spindle speed 50-7000 rpm
Rapid movements: x, y axes 36000 mm/min
Cutting feeds 20000 mm/min
Extremely fast acceleration times 0. 4 g.
Main spindle vac 15/10 hp.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
