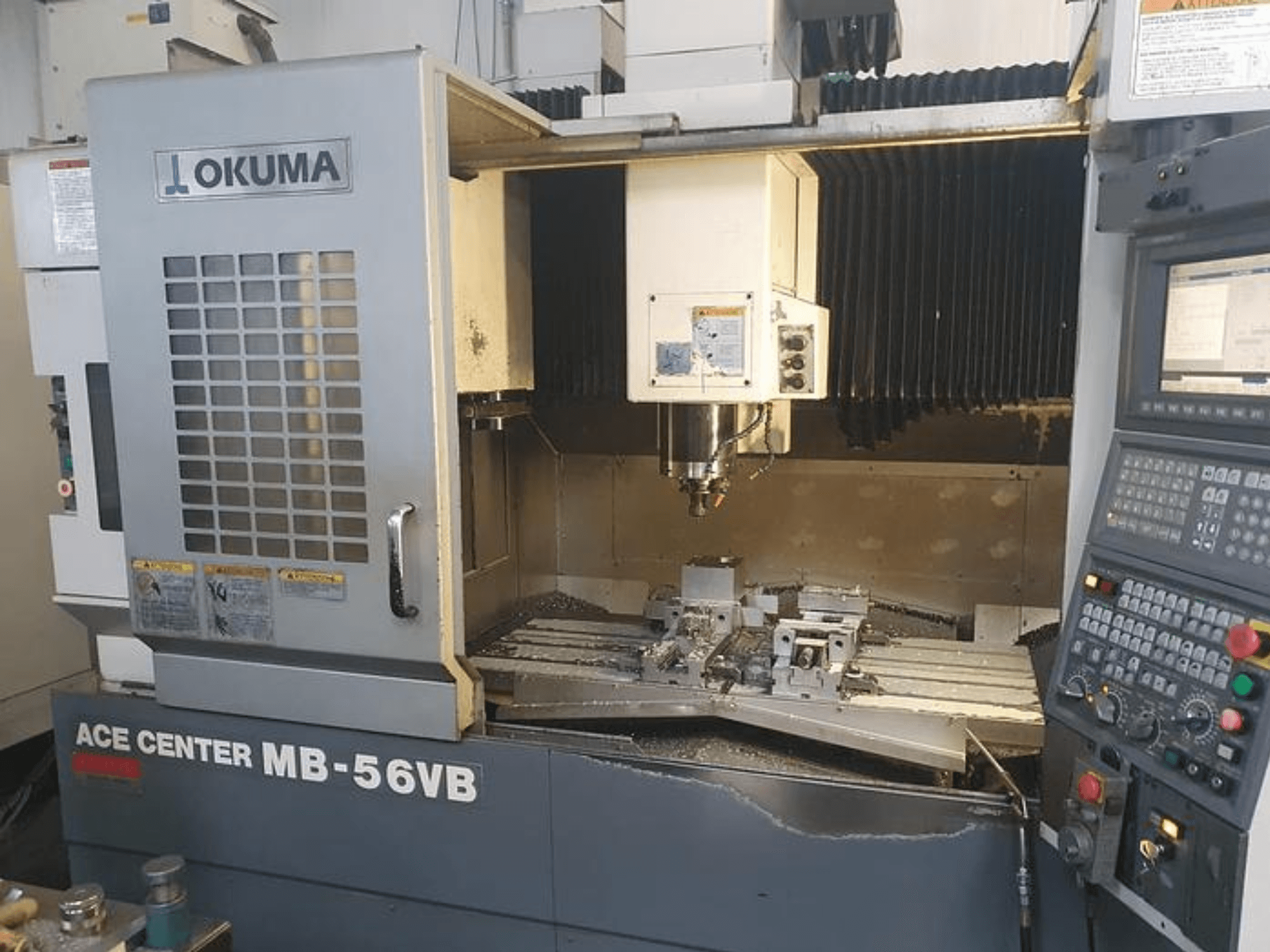

Okuma ACE CENTER MB-56VB CNC milling machine in a front view, showcasing the control panel and machining area.
Okuma ACE CENTER MB-56VB CNC milling machine in a front view, showcasing the control panel and machining area.

Okuma - MB-56VBIT-MIL-OKU-2005-00003

Rs. 6,653,158
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 3-axis Okuma MB-56VB vertical machining center was manufactured in 2005. It features a working surface of 1300 × 560 mm, a maximum table load of 900 kg, and rapid feed rates of 40 m/min in X/Y and 32 m/min in Z. The spindle operates up to 12,000 rpm with a power of 20 kW. Tool magazine holds 32 tools. If you are looking to get high-quality milling capabilities consider the Okuma MB-56VB machine we have for sale. Contact us for more information.

Overview

  • brand: Okuma
  • year: 2005
  • MODEL: MB-56VB
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre

Technical Information - Okuma MB-56VB

Dimensions

  • Machine Depth: 3000 mm
  • Machine Height: 2750 mm
  • Machine Length: 2550 mm
  • Machine Weight: 6900 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 1050 mm
  • Y-axis Travel: 560 mm
  • Z-axis Travel: 460 mm

Additional Information

  • Working surface: 1300 x 560 mm

  • Table height from floor: 800 mm

  • Maximum table load: 900 kg

  • T-slots: 3 x 18 mm

  • T-slot pitch: 125 mm

  • Rapid feed X/Y: 40 m/min

  • Rapid feed Z: 32 m/min

  • Maximum cutting feed (X/Y/Z): 32000 mm/min

  • Positioning accuracy (X/Y/Z): ±0.004 mm (JIS Standard)

  • Repeatability (X/Y/Z): ±0.0015 mm / 100 mm (JIS Standard)

  • Spindle nose to table distance: 180–630 mm

  • Tool magazine capacity: 32 tools

  • Tool selection: Random

  • Tool holder type: BT MAS

  • Tool holder: BT 50

  • Pull stud: MAS P2 special

  • Tool change time (adjacent tools): 1.2 s

  • Max. tool diameter (adjacent): 90 mm

  • Max. tool diameter (non-adjacent): 125 mm

  • Max. tool length: 300 mm

  • Max. tool weight: 18 kg

  • Spindle speed: 50–12000 rpm

  • Spindle speed ranges: 1 (continuous variation)

  • Maximum spindle power: 20 / 15 kW

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
