Okuma LU35-M

Photo Gallery

Okuma - LU35-MDE-TUR-OKU-2008-00003

Sold

Do you have further questions? Contact us.

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Okuma LU35-M For Sale | gindumac.com

Show in original language

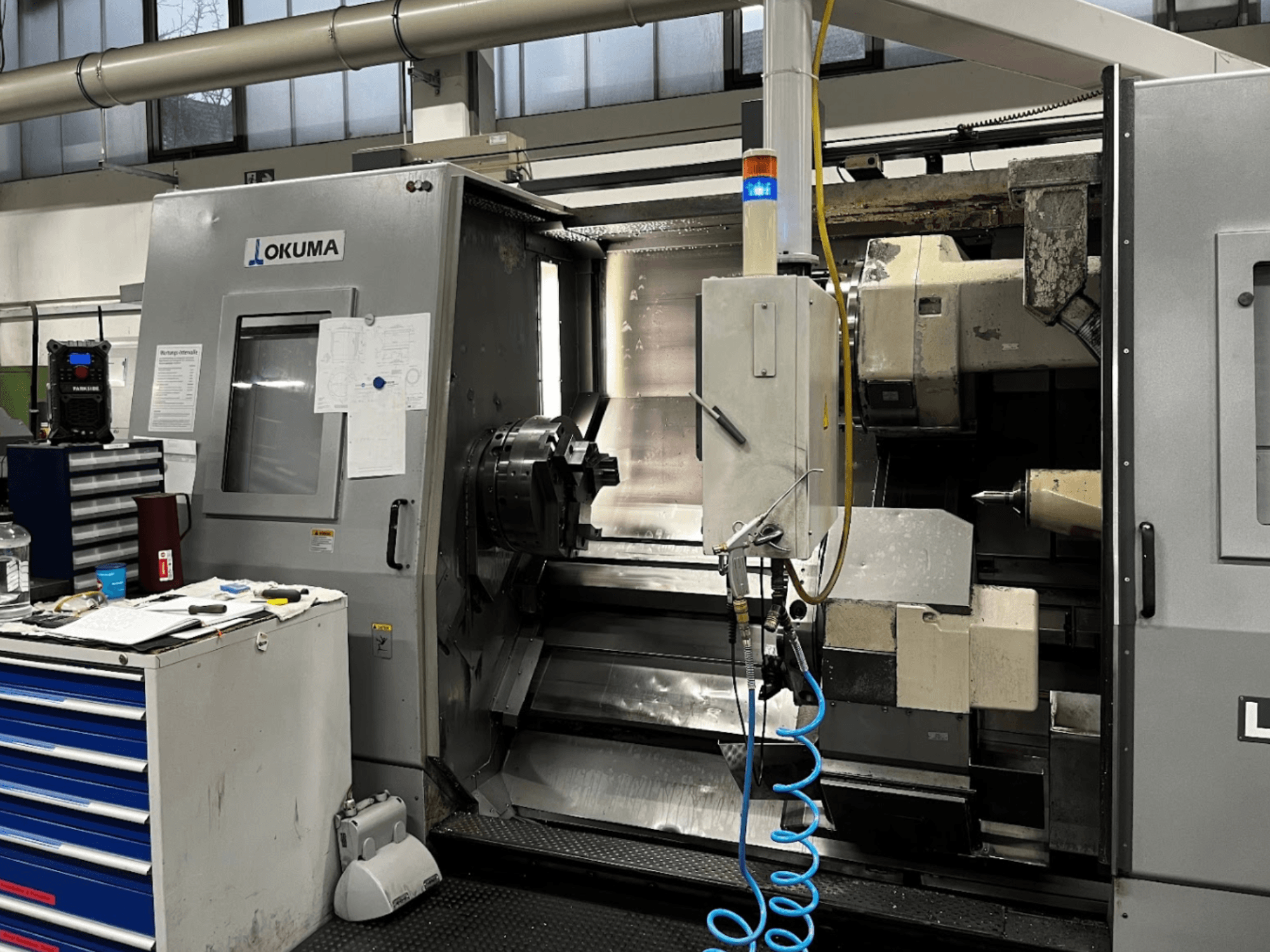

This 4-axis Okuma LU35-M was manufactured in 2008. It features a maximum turning diameter of 550 mm and a Z-axis travel of 920 mm. The machine is equipped with two revolvers, offering a total of 22 tool stations, and operates at a spindle speed of 3200 rpm. If you are looking to get high-quality turning capabilities, consider the Okuma LU35-M horizontal turning machine we have for sale. Contact us for further details.

Overview

brand: Okuma
year: 2008
MODEL: LU35-M
application type: Turning
Location: Germany
machine type: Horizontal Turning Machine

Technical Information - Okuma LU35-M

Dimensions

Machine Height: 2600 mm
Machine Length: 5200 mm
Machine Weight: 13500 kg
Machine Width: 2600 mm

Movement

Number of Axes: 4
X-axis Travel: 350 mm
Z-axis Travel: 920 mm

Technical Specification

Counter Spindle: No
Driven Tools: Yes
Spindle Power: 40 kW
Spindle Speed: 3200 RPM
Taper Size: VDI 50
Tool Stations: 22

Additional Information

Maintenance Contract: Yes
Utilization: 85%
Shifts: 2
Number of Tools: 12
Number of Revolvers/Magazines: 2
Maximum Turning Diameter: 550 mm
Control System: OSP-P200L
Revolver A: 12 stations
Revolver B: 10 stations
Supply Voltage: 400 V
Phase: 3
Frequency: 50 Hz
Rated Capacity: 53.1 kVA
Full Load Current: 76.7 A
Largest Motor Rating: 134 A
Interrupt Capacity: 10 kA
X-axis travel (A turret): 350 mm (corresponds to max Ø700 mm)
X-axis travel (B turret): 240 mm (corresponds to max Ø480 mm)

OPTIONAL for an additional charge: around 100 x tools, Clamping elements, chuck jaw sets, 2-jaw chucks, zero-point clamping system

Electrical maintenance was carried out 1.5 years ago. During this work, some electrical components were replaced or cleaned

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
